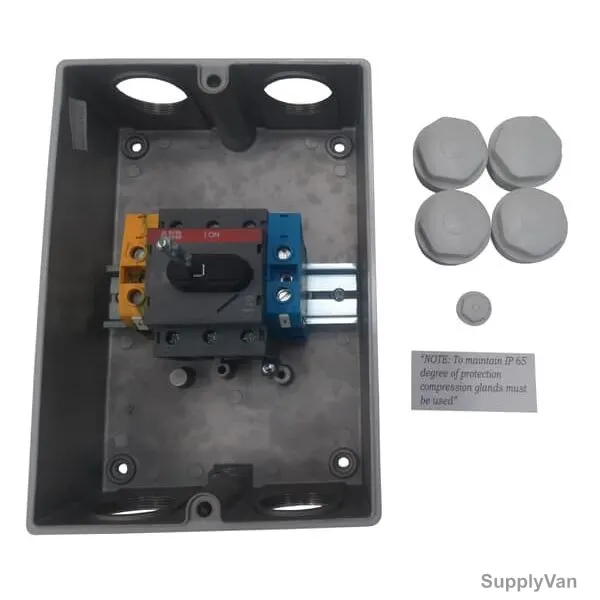

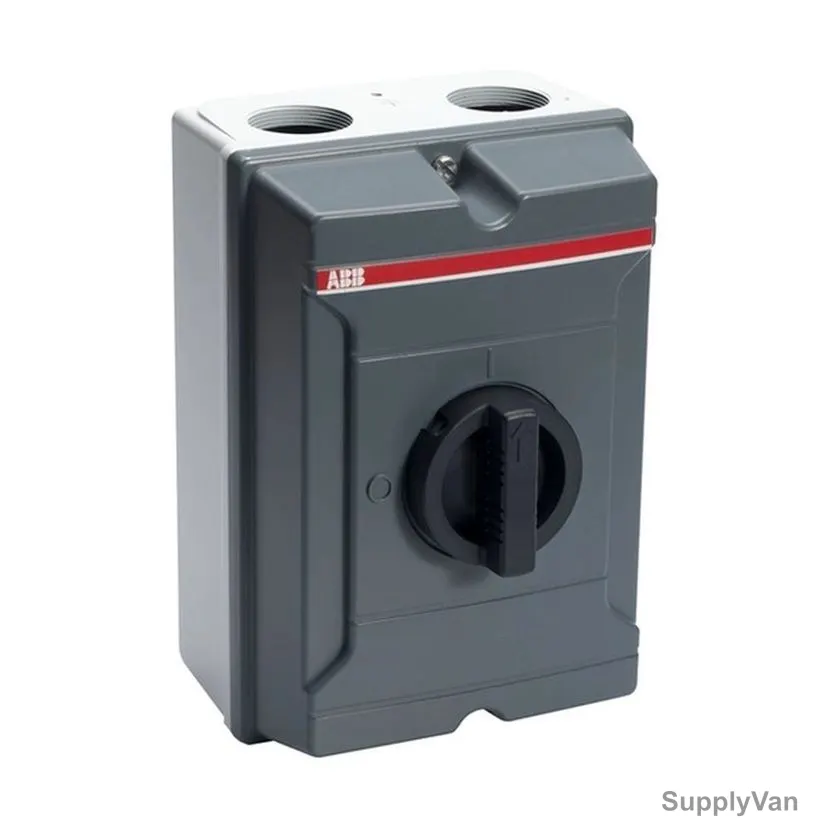

ABB Enclosed Switch Disconnector, KSE363TPN, 3P, 22 kW, 63A
(No reviews yet)
Write a Review
- Brand:
- Abb
- SKU:
- 216852131132
- Minimum Purchase:
- 1 unit
- Item Name:
- Switch Disconnector
- Model:
- KSE363TPN
- Article Number:
- 2CMA144580R1000
- Manufacturer:
- Abb
- Material:
- Aluminium
- Color:
- Grey
- Pollution Degree:
- 3 Degree
- Handle Color:
- Black
- Voltage:
- 380-415V
- Manufacture Part Number:
- 2CMA144580R1000
- Number of Poles:
- 3P
- Amps (A):
- 63A
- Depth:
- 118mm
- Ingress Protection (IP Rating):
- IP65
- Height (MilliMeter):
- 230mm
- Width (MilliMeter):
- 160mm
- Torque (Nm):
- 2 Nm
- Short Circuit Current:
- 13 kA
- Insulation Voltage:
- 750V
- Current:
- 63A
- Terminal Type:
- Screw
- Handle Type:
- Round
- Cross Section:
- 1.5-35 sq.mm
- Operational Voltage:
- 750V
- Power:
- 22 kW
- Brand Origin (not manufacture):
- Germany
- Standards:
- IEC 60947-1
- Certification:
- CE
- Green Certifications:
- RoHS
- Packing Size L x B x H (Cms):
- 15L x 24B x 17H
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The enclosed switch-disconnectors are used for power distribution in factories and buildings, as local motor isolators and as main switches in equipment in various applications.
View AllClose
- Rated Short-Circuit Making Capacity: 1.4 kA
- Protection Type: Watertight
- Power Loss: 2.8W (at Rated Operating Conditions per Pole)
- Position of Line Terminals: Top In - Bottom Out
- Neutral Type: Fixed
- Cable Entry Position: Up/Down
- Cable Outlets Per Side: 2 x M40/2 x M40+M16
- Impact Resistance Rating: IK07
- Enclosure Type: Frontex2
- Maximum Mounted Auxiliary Contacts: 2 NO, 2 NC
- Mechanical Durability: 20000
Item Name: |
Switch Disconnector |
Model: |
KSE363TPN |
Article Number: |
2CMA144580R1000 |
Manufacturer: |
Abb |
Material: |
Aluminium |
Color: |
Grey |
Pollution Degree: |
3 Degree |
Handle Color: |
Black |
Voltage: |
380-415V |
Manufacture Part Number: |
2CMA144580R1000 |
Number of Poles: |
3P |
Amps (A): |
63A |
Depth: |
118mm |
Ingress Protection (IP Rating): |
IP65 |
Height (MilliMeter): |
230mm |
Width (MilliMeter): |
160mm |
Torque (Nm): |
2 Nm |
Short Circuit Current: |
13 kA |
Insulation Voltage: |
750V |
Current: |
63A |
Terminal Type: |
Screw |
Handle Type: |
Round |
Cross Section: |
1.5-35 sq.mm |
Operational Voltage: |
750V |
Power: |
22 kW |
Brand Origin (not manufacture): |
Germany |
Standards: |
IEC 60947-1 |
Certification: |
CE |
Green Certifications: |
RoHS |
Packing Size L x B x H (Cms): |
15L x 24B x 17H |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
