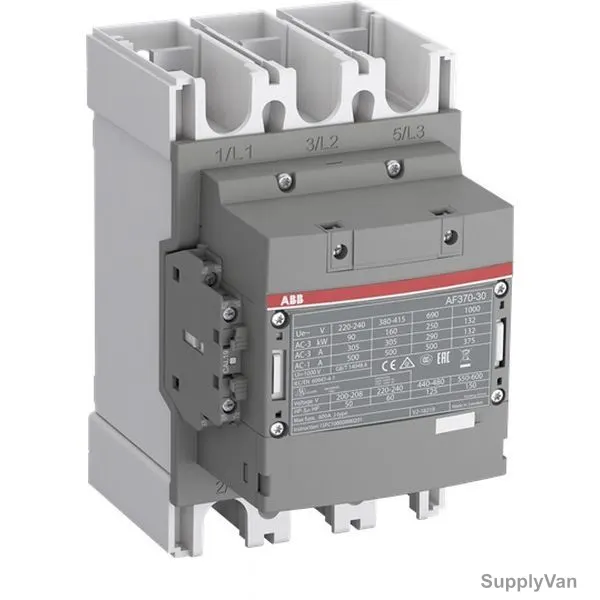

Abb IEC Contactor, AF370-30-11-13, 3 Phase, 3P, 370A

SV Code: 993572175492Model No.: AF370-30-11-13

50/60 Hz1000 VAC140 mm225 mm180 mm

AED 1,597.88/ Piece

Price includes VAT· Sign in to see your account priceMore Details

Out of stock

Amps · 370 A

Colour · White and Grey

370 A · White and Grey993572175492AED 1,597.88

Available in 7 working days

Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.

Key features

Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1: 8 x Ie AC-3
Rated Making Capacity AC-3 acc. to IEC 60947-4-1: 10 x Ie AC-3
Rated Impulse Withstand Voltage: 8 kV
Mechanical Durability: 5 million
Maximum Mechanical Switching Frequency: 300 cycles per hour

Full description & specifications ↓

Fast delivery Genuine & warranty Bulk quotes

Specifications

SV Code	993572175492
Brand	Abb
Category	IEC Magnetic Contactors
Unit	Piece
Frequency	50/60 Hz
Operational Voltage	1000 VAC
Width	140 mm
Height	225 mm
Depth	180 mm
Colour	White and Grey
Amps	370 A
Number of Poles	3P
Number Of Phase Filter	3
Number Of Contacts	Main: 3, Auxiliary - NO: 1, NC: 1
Brand Origin (not manufacture)	Germany
Delivery	Not on the shelf right now; 7 working days to source and deliver.

Description

The AF370-30-11-13 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 200 kW / 400 V AC (AC-3) or 300 hp / 480 V UL and switching power circuits up to 600 A (AC-1) or 520 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
