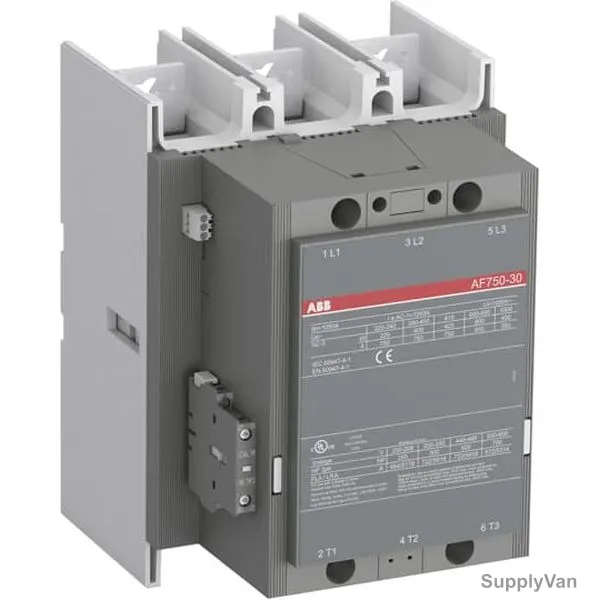

Abb IEC Contactor, AF750-30-11-70, 3 Phase, 3P, 750A

SV Code: 958748536128Model No.: AF750-30-11-70

50/60 Hz1000 VAC210 mm283 mm242 mm

AED 4,751.96/ Piece

Price includes VAT· Sign in to see your account priceMore Details

Out of stock

Amps · 750 A

Colour · Grey

750 A · Grey958748536128AED 4,751.96

Available in 7 working days

Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.

Key features

Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1: 8 x Ie AC-3
Rated Making Capacity AC-3 acc. to IEC 60947-4-1: 10 x Ie AC-3
Rated Impulse Withstand Voltage: 8 kV
Mechanical Durability: 5 million
Maximum Mechanical Switching Frequency: 300 cycles per hour

Full description & specifications ↓

Fast delivery Genuine & warranty Bulk quotes

Specifications

SV Code	958748536128
Brand	Abb
Category	IEC Magnetic Contactors
Unit	Piece
Frequency	50/60 Hz
Operational Voltage	1000 VAC
Width	210 mm
Height	283 mm
Depth	242 mm
Colour	Grey
Amps	750 A
Number of Poles	3P
Number Of Phase Filter	3
Number Of Contacts	Main: 3, Auxiliary - NO: 1, NC: 1
Brand Origin (not manufacture)	Germany
Delivery	Not on the shelf right now; 7 working days to source and deliver.

Description

The AF750-30-11-70 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 400 kW / 400 V AC (AC-3) or 600 hp / 480 V UL and switching power circuits up to 1050 A (AC-1) or 900 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
