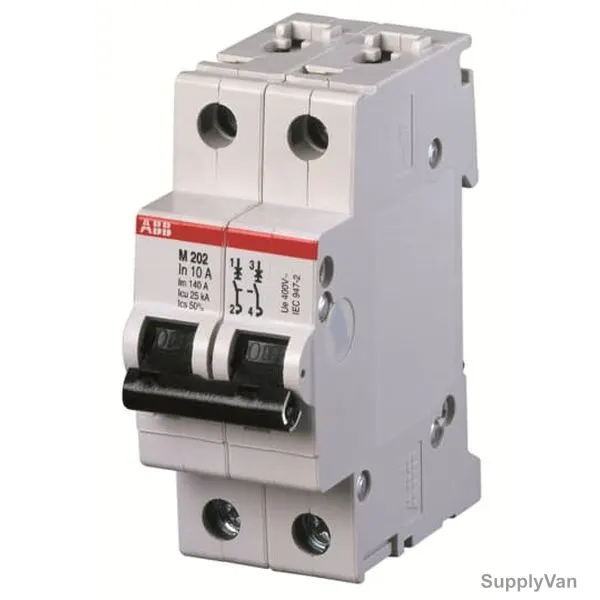

Abb Miniature Circuit Breaker, M202-16A, 16A, 2P, 400VAC

SV Code: 121911884427Model No.: M202-16A

400 VAC50/60 Hz440 VACAC35 mm

AED 460.59/ Piece

Price includes VAT· Sign in to see your account priceMore Details

Out of stock

Amps · 16 A

16 A121911884427AED 460.59

Available in 7 working days

Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.

Key features

Rated Impulse Withstand Voltage: 4 kV; at 2000m: 5 kV; at Sea Level: 6.2 kV
Rated Short-Circuit Capacity: 12.5 kA
Rated Ultimate Short-Circuit Breaking Capacity: 25 kA
Mechanical Endurance: 20000 cycle
Overvoltage Category: III
Tightening Torque: 2.8 Nm

Full description & specifications ↓

Fast delivery Genuine & warranty Bulk quotes

Specifications

SV Code	121911884427
Brand	Abb
Category	Miniature Circuit Breakers - MCB
Unit	Piece
Voltage	400 VAC
Frequency	50/60 Hz
Insulation Voltage	440 VAC
Residual Current Type	AC
Width	35 mm
Height	88 mm
Depth	69 mm
Colour	White
Conductor Material	Copper
Amps	16 A
Operating Temp	-25 to 55 Deg.C
Number of Poles	2P
Storage Temperature	-40 to 70 Deg.C
Terminal Type	Screw Terminals
Number of Modules	2
Brand Origin (not manufacture)	Germany
Delivery	Not on the shelf right now; 7 working days to source and deliver.

Description

Abb Miniature Circuit Breaker, M202-16A, 16A, 2P, 400VAC. Genuine Abb product supplied by SupplyVan. For bulk pricing, contract rates, or technical data sheets, request a quote and our team will respond with account pricing and availability.
