Effast Wafer Check Valve, CDRCKD0900, CKD Series, PVC-U, 90MM, 10 Bar

Name: Effast Wafer Check Valve, CDRCKD0900, CKD Series, PVC-U, 90MM, 10 Bar
Brand: Effast
SKU: effast-cdrckd0900
Price: 389.00 AED
Availability: PreOrder

SV Code: 746172726348Model No.: CDRCKD0900

10 bar124 mm20 mm90 mmPVC-U

AED 389.00/ Piece

Price includes VAT· Sign in to see your account priceMore Details

Out of stock

Diameter · 90 mm

90 mm746172726348AED 389.00

Available in 7 working days

Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.

Key features

Suitable for horizontal and vertical installation.
Available with disc spring (for installation in horizontal piping).
Compatible with both EN/ISO/DIN and ANSI flanges.
Sealing system with EPDM or FKM O-rings.
Special design of the disc to offer a greater opening angle.
Valve’s body suitable to be installed directly between stubs. Locating ears ensure the valve is installed level and centered between flanges.

Full description & specifications ↓

Fast delivery Genuine & warranty Bulk quotes

This model family (6 options)

Product	Price	Availability
Effast Wafer Check Valve, CDRCKD0750, CKD Series, PVC-U, 75MM, 10 Bar	AED 344.00	Quote
Effast Wafer Check Valve, CDRCKD0900, CKD Series, PVC-U, 90MM, 10 Bar viewing	AED 389.00	Quote
Effast Wafer Check Valve, CDRCKD1100, CKD Series, PVC-U, 110MM, 10 Bar	AED 458.00	Quote
Effast Wafer Check Valve, CDRCKD1400, CKD Series, PVC-U, 140MM, 10 Bar	AED 582.00	Quote
Effast Wafer Check Valve, CDRCKD1600, CKD Series, PVC-U, 160MM, 10 Bar	AED 642.00	Quote
Effast Wafer Check Valve, CDRCKD2250, CKD Series, PVC-U, 225MM, 10 Bar	AED 857.00	Quote

Specifications

SV Code	746172726348
Brand	Effast
Category	Check and Foot Valves
Unit	Piece
Temp Range	0 to 60 Deg.C
Maximum Pressure	10 bar
Length	124 mm
Width	20 mm
Diameter	90 mm
Material	PVC-U
Seal Material	EPDM
Brand Origin (not manufacture)	Italy
Delivery	Not on the shelf right now; 7 working days to source and deliver.

Description

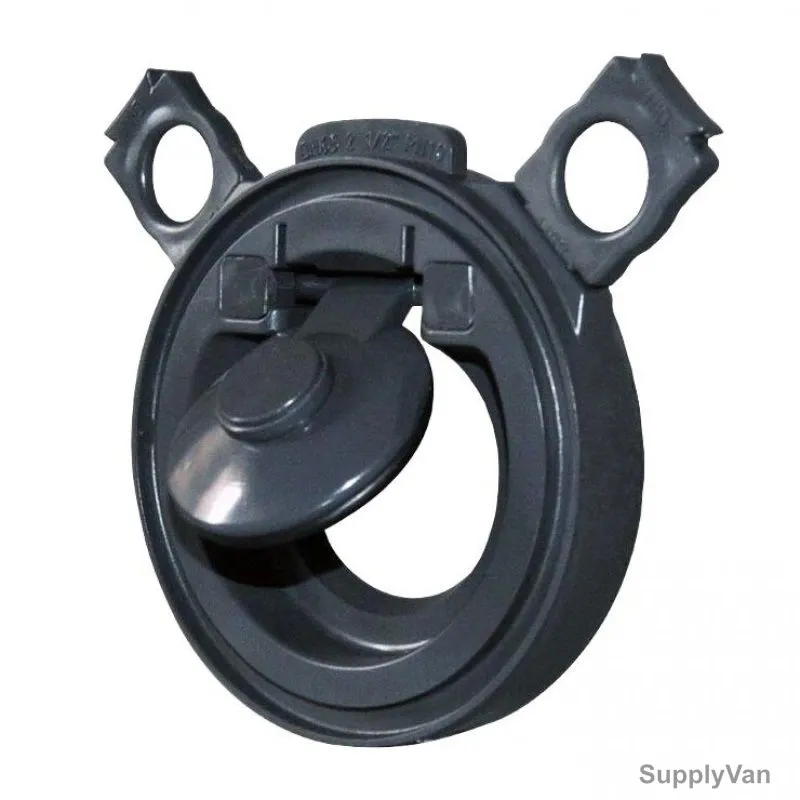

CK wafer check valve is a non-return valve ideal for limited space installations. Thanks to the design of its disc,CK valve can offer a greater opening angle.

Features

Suitable for horizontal and vertical installation.
Available with disc spring (for installation in horizontal piping).
Compatible with both EN/ISO/DIN and ANSI flanges.
Sealing system with EPDM or FKM O-rings.
Special design of the disc to offer a greater opening angle.
Valve’s body suitable to be installed directly between stubs. Locating ears ensure the valve is installed level and centered between flanges.
Flow area PN6 is 80 Deg.C and PN10 is 77 Deg.C
