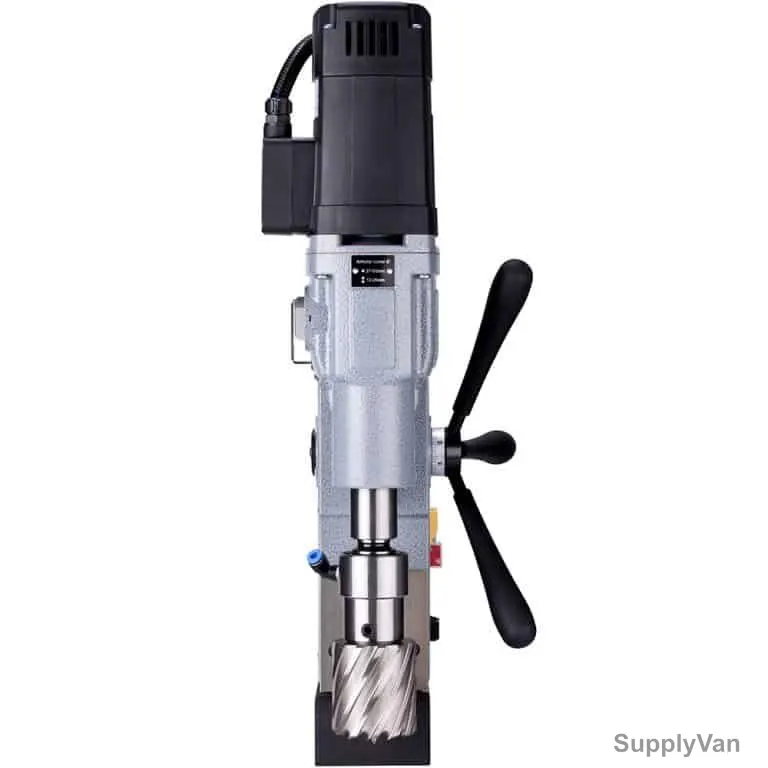

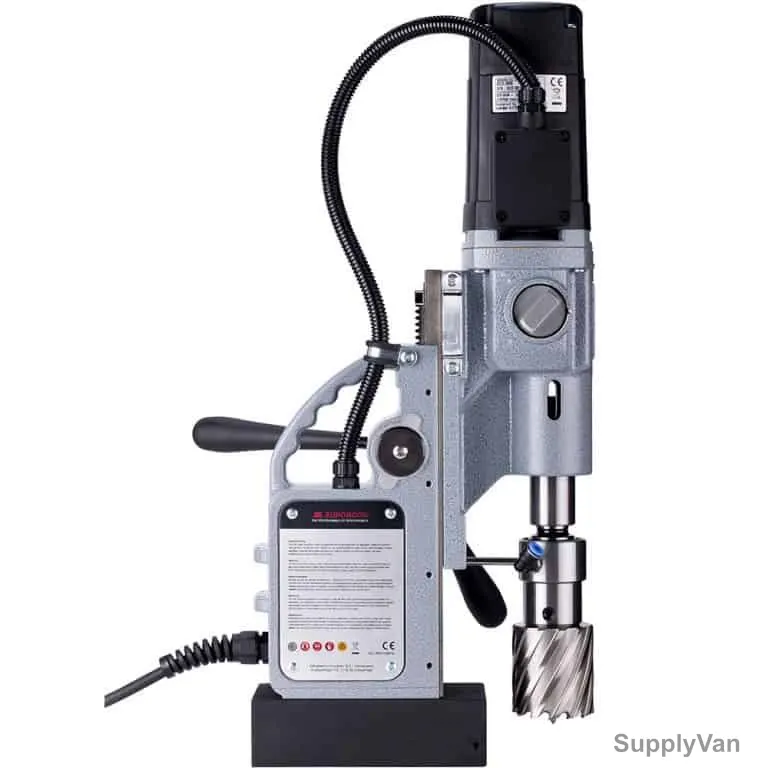

Euroboor Magnetic Drill Machine, ECO.60S+, 1700W, 60MM Cutting Dia
(No reviews yet)
Write a Review
- Brand:
- Euroboor
- SKU:
- 583655259959
- Minimum Purchase:
- 1 unit
- Item Name:
- Magnetic Drill Machine
- Model:
- ECO.60S+
- Manufacturer:
- Euroboor
- Magnetic (Yes/No):
- Yes
- Dimensions:
- 168 x 84 x 49mm
- Total Power:
- 1700W
- Stroke Width:
- 170mm
- Motor Power:
- 1600W
- Length (MilliMeter):
- 320mm
- Frequency:
- 50/60Hz
- Cutting Diameter:
- 12-60mm
- Twist Drill Diameter:
- 1-23mm
- Countersink Diameter:
- 10-65mm
- Height:
- 452-622mm
- Width:
- 200mm
- Voltage:
- 220-240V
- RPM (no load):
- 60-275/100-500
- Magnetic Force:
- 1850 kg
- Brand Origin (not manufacture):
- Netherlands
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The Euroboor ECO.60S+ magnetic core drilling machine has a powerful 1600W motor, an oil lubricated gearbox and overheat protection. This portable magnetic core drilling machine benefits from innovative electronics which offer more safety, significantly reduce the risk of damage of the machine, tool and workpiece and protects the user in case of excessive vibrations or sudden displacement. The lifespan is considerably longer and you avoid high maintenance costs. This light and reliable machine is a true addition for every workplace.
- Two-speed oil lubricated gearbox
- Electronic speed adjustment
- High-accuracy capstan hub
- Morse Taper 3 spindle with integrated tool cooling and lubrication
- Overload protection
- Smart Restart technology
- Strong dual coil CNC machined 2-way magnet, causing the machine to use less energy, generate less heat and therefore lasts longer
- Reduced risk of damaging machine, tools and workpiece and hurting operator
- Suitable for use in areas and workplaces where power supply is of less quality
- Reduced risk of armature damage
- Reduced risk of control unit(s) damage
- Timely service notification to avoid additional cost by unexpected downtime or unnecessary part replacement
- Integrated slide for: High accuracy, Enlarged lifecycle, Minimal vibration
- Speed (load 1600W): 60-275/100-500 rpm
- High-precision height adjustment for: Low maintenance, Minimal wear correction
Items Included:
1x Eco.60S+ Magnetic Drilling Machine, 1x Safety Guard, 3x Handles, 1x Hex Key (2.5mm), 1x Hex Key (4mm), 1x Hex Key (5mm), 1x Lubrication System, 1x Safety Chain, 1x Bottle (200ml) Of Ibo.10 Cutting Oil, 1x User Manual, 1x Safety Ear Protection, 1x Safety Goggle, 1x Safety Glove
