Hager

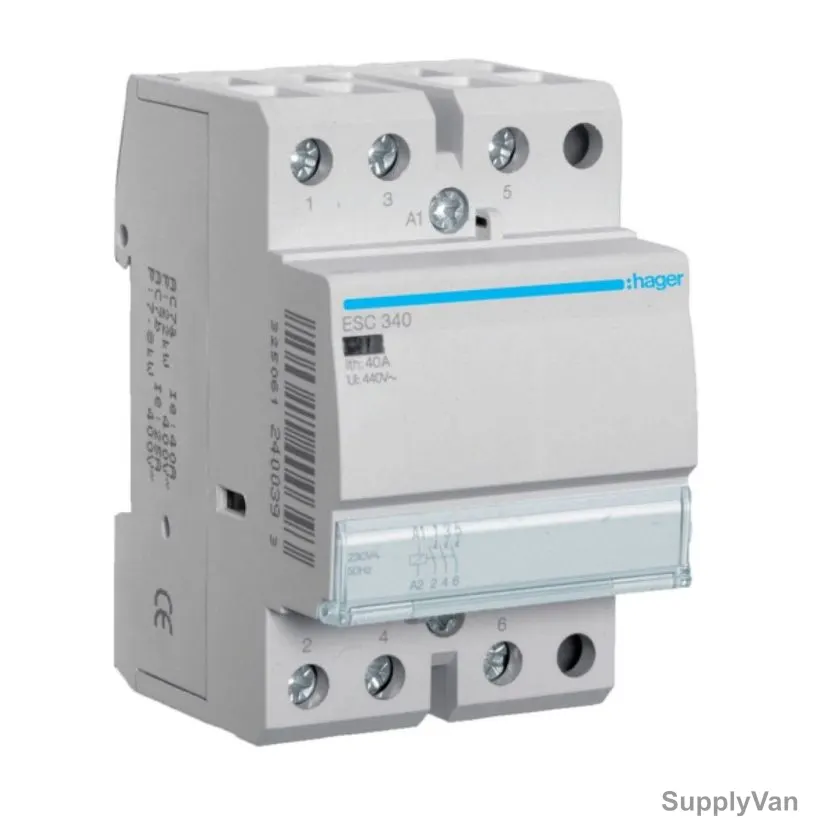

Hager Contactor, ESC340, 3P, 230V, 40A
SV Code: 873822911175Model No.: ESC340
230 VAC50 Hz440 VAC400 VAC54 mm
AED 560.48/ Piece
Out of stock
Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.
Key features
- Rated impulse withstand voltage: 4 kV
- Connection cross-sect. flexible conductor: 1.5/16 sq.mm
- Connection cross-sect. rigid cable: 1.5/25 sq.mm
- Total power loss under IN: 15.35W
- Power dissipation per coil: 0.5W
- Electric endurance in number of cycles: 30000
Fast delivery Genuine & warranty Bulk quotes
This model family (2 options)
| Product | Price | Availability |
|---|---|---|
| Hager Contactor, ESC340, 3P, 230V, 40A viewing | AED 560.48 | Quote |
| Hager Contactor, ESC440, 4P, 230V, 40A | AED 854.15 | Quote |
Specifications
| SV Code | 873822911175 |
| Brand | Hager |
| Category | IEC Magnetic Contactors |
| Unit | Piece |
| Voltage | 230 VAC |
| Frequency | 50 Hz |
| Insulation Voltage | 440 VAC |
| Operational Voltage | 400 VAC |
| Width | 54 mm |
| Height | 85 mm |
| Depth | 60 mm |
| Colour | White |
| Amps | 40 A |
| Operating Temperature | -10 to 50 Deg.C |
| Number of Poles | 3P |
| Number Of Contacts | 3NO |
| Brand Origin (not manufacture) | Germany |
| Delivery | Not on the shelf right now; 7 working days to source and deliver. |
Description
Hager Contactor, ESC340, 3P, 230V, 40A. Genuine Hager product supplied by SupplyVan. For bulk pricing, contract rates, or technical data sheets, request a quote and our team will respond with account pricing and availability.
Features
- Rated impulse withstand voltage: 4 kV
- Connection cross-sect. flexible conductor: 1.5/16 sq.mm
- Connection cross-sect. rigid cable: 1.5/25 sq.mm
- Total power loss under IN: 15.35W
- Power dissipation per coil: 0.5W
- Electric endurance in number of cycles: 30000
- Number of mechanical operations: 1000000
- Max. power with fluorescent parallel lamps: 1300VA
Certifications & Standards
| Ingress Protection | IP2X |
