Hager

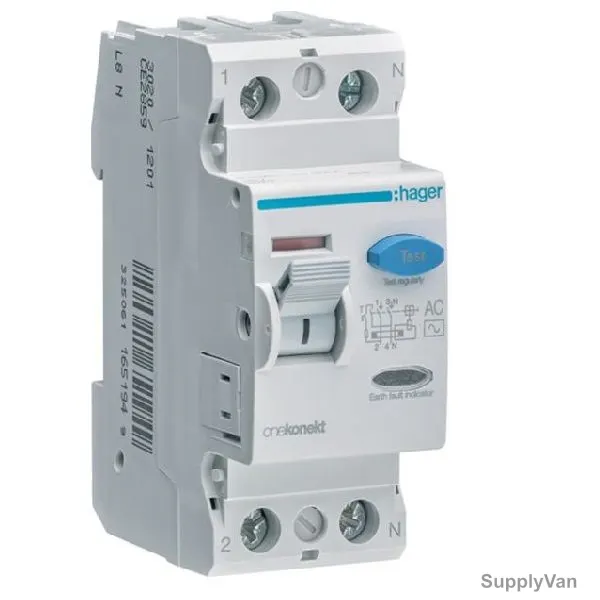

Hager Residual Current Circuit Breaker, CF285Z, Type AC, 2P, 300mA, 100A
SV Code: 834631392418Model No.: CF285Z
50 HzAC35 mm83 mm70 mm
AED 180.00/ Piece
Out of stock
Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.
Key features
- Residual current circuit breakers (RCCBs) are used to protect humans and installation from insulation faults in residential and commercial applications
- Neutral Position: Right
- Fixing Mode: Din-Rail
- Breaking and Opening Capacity: 1.5 kA
- Electric endurance in number of cycles: 2000
- Number of mechanical operations: 4000
Fast delivery Genuine & warranty Bulk quotes
Specifications
| SV Code | 834631392418 |
| Brand | Hager |
| Category | Residual Current Circuit Breakers |
| Unit | Piece |
| Frequency | 50 Hz |
| Residual Current Type | AC |
| Width | 35 mm |
| Height | 83 mm |
| Depth | 70 mm |
| Colour | White |
| Amps | 100 A |
| Number of Poles | 2P |
| Storage Temperature | -55 to 70 Deg.C |
| Connection Type | Screw |
| Number of Modules | 2 |
| Brand Origin (not manufacture) | Germany |
| Delivery | Not on the shelf right now; 7 working days to source and deliver. |
Description
Hager is a full range supplier of electrical installation systems for building, residential and commercial properties.
Features
- Residual current circuit breakers (RCCBs) are used to protect humans and installation from insulation faults in residential and commercial applications
- Neutral Position: Right
- Fixing Mode: Din-Rail
- Breaking and Opening Capacity: 1.5 kA
- Electric endurance in number of cycles: 2000
- Number of mechanical operations: 4000
Certifications & Standards
| Standards | IEC/EN 60898 |
| Ingress Protection | IP20 |
