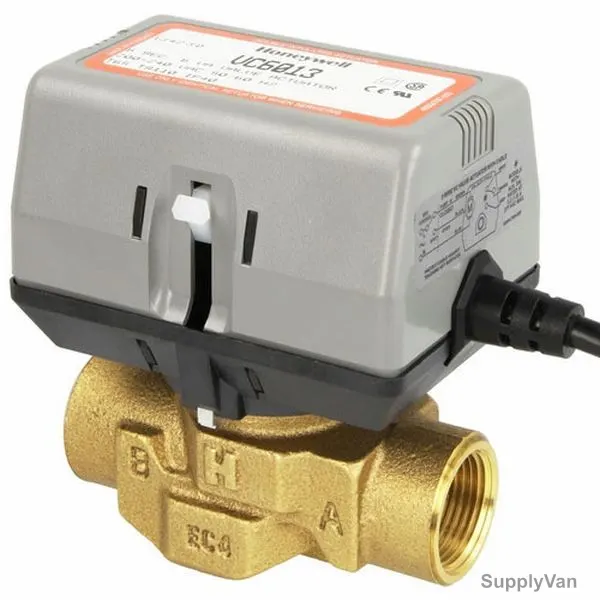

Honeywell 2 Way Electric Valve Actuator, VC6013AP1000T, 220VAC, 1 Inch
On our shelf and ready to go out today.
Key features
- 2-way: flow can be in either direction. When actuator is not mounted valve is in closed position
- Control by a low or line voltage SPST or SPDT controller
- Minimal actuator power consumption
- Pressure differential up to 4 bar
- Double insulated actuator
- Quick connect electrical connections
Specifications
| SV Code | 137252957233 |
| Brand | Honeywell |
| Category | Electric Valve Actuators |
| Unit | Piece |
| Voltage | 220 VAC |
| Frequency | 50 Hz |
| Pressure | 20 bar |
| Differential Pressure | 4 |
| Cable Length | 1 Mtr |
| Diameter Nominal | DN 25 |
| Pipe Size | 1 Inch |
| Material | Brass |
| For Use With | Air Conditioners and Coolers |
| Operating Temperature | 40 to 65 Deg.C |
| Switch Way | 2 |
| Humidity | 5-95% RH, non-condensing |
| Valves Connectionsize | 1 Inch |
| Connection Type | BSPP |
| Run Time | 6 sec |
| Country of Manufacture | China |
| Brand Origin (not manufacture) | United States |
| Delivery | On our shelf and ready to go out today. |
Description
Honeywell VC Series balanced 2-position hydronic valves are used in domestic and small commercial heating and cooling applications to control the flow of hot and/or cold water. They consist of an actuator, valve and a cartridge assembly 2-way valves are designed for on-off zone control of domestic systems. 3-way valves can be piped for either diverting or mixing valve applications in domestic central heating and/or cooling systems, Both versions can be used to control individual fan coil, radiator, space heater or convector applications. Depending on the model selected they can be controlled by a low or line voltage SPST or SPDT controller such as a room thermostat, aquastat or flow switch. VC Series hydronic valves are designed to take advantage of sinusoidal valve actuator travel, and therefore operate silently and reduce water hammer
Features
- 2-way: flow can be in either direction. When actuator is not mounted valve is in closed position
- Control by a low or line voltage SPST or SPDT controller
- Minimal actuator power consumption
- Pressure differential up to 4 bar
- Double insulated actuator
- Quick connect electrical connections
- Quick and easy replacement of moving parts
- Actuator head installation does not require draining of the system
- Body Pattern: Two-way
Certifications & Standards
| Ingress Protection | IP40 |
