Rainbird Pop-Up Rotor Sprinkler Head, 8005PCFC, 8005 Series, BSP, 100 PSI, 39-81 Feet, 5 Inch

Name: Rainbird Pop-Up Rotor Sprinkler Head, 8005PCFC, 8005 Series, BSP, 100 PSI, 39-81 Feet, 5 Inch
Brand: Rainbird
SKU: rainbird-8005pcfc
Price: 19.76 AED
Availability: PreOrder

SV Code: 426426685527Model No.: 8005PCFC

100 psi5 Inch1 InchBSPUnited States

AED 19.76/ Piece

Price includes VAT· Sign in to see your account priceMore Details

Out of stock

Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.

Key features

Memory Arc returns the rotor to its original arc setting
Non-strippable drive mechanism prevents damage from vandals
Brass reinforcing shaft of the nozzle turret to riser withstands vandal kick
Full and part circle operation in one unit to reduce inventory requirements
Easy, wet, dry arc adjustment with slotted screwdriver through top of rotor from 50 to 330 Degree part-circle, 360° non-reversing full-circle
Left and right side trips adjustable for ease of installation without turning the case and loosening the pipe connection

Full description & specifications ↓

Fast delivery Genuine & warranty Bulk quotes

Specifications

SV Code	426426685527
Brand	Rainbird
Category	Sprinkler Heads
Unit	Piece
Flow Rate	3.8-36.3 GPM
Working Pressure	100 psi
Spray Coverage Range	39-81 ft.
Height	5 Inch
Inlet Size	1 Inch
Fasteners Thread Type	BSP
Brand Origin (not manufacture)	United States
Delivery	Not on the shelf right now; 7 working days to source and deliver.

Description

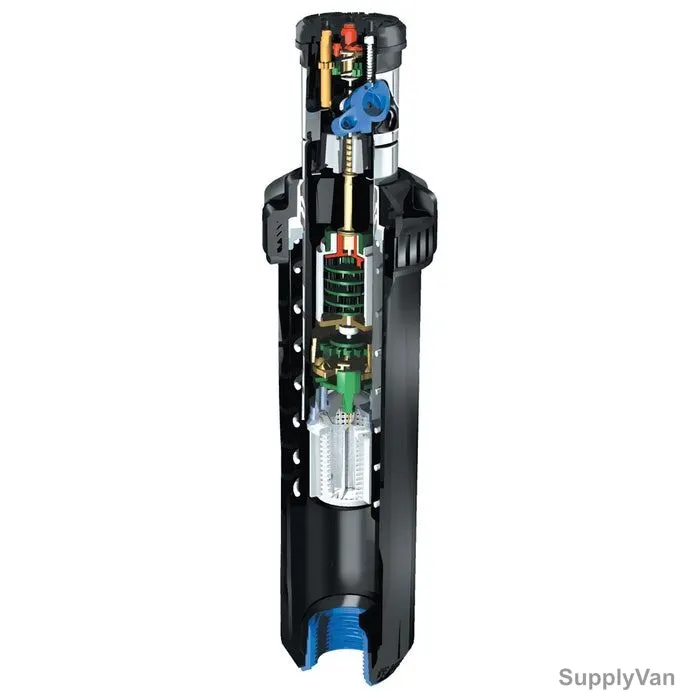

The Rain Bird 8005 Rotor is built rugged to withstand the harsh conditions and vandalism present in commercial rotor applications.

It has been designed and tested to ensure the high reliability demanded by the market today. With its extensive customer identified features, it is versatile enough to fit all applications.

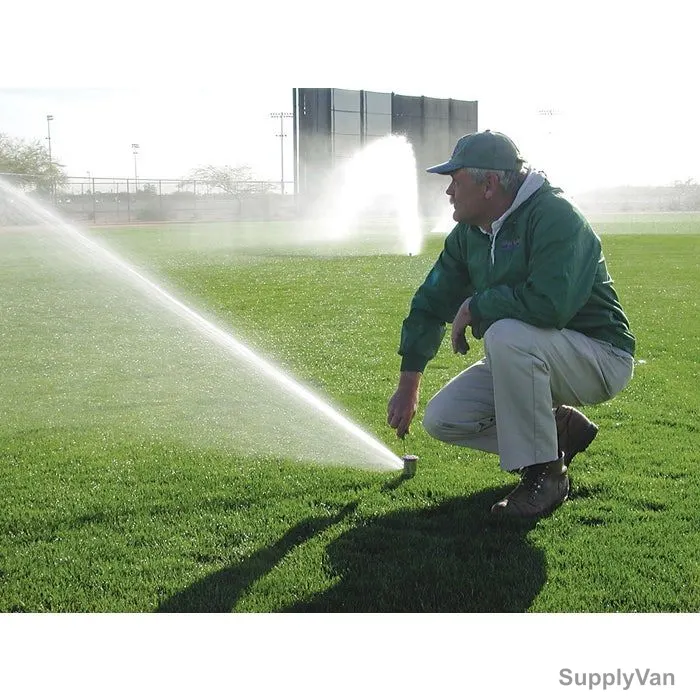

The Rain Bird 8005 Rotor, with its extensive customer identified features and 80 foot radius, is ideal for watering sportsfields, parks and other large turf applications.

Additional Specification
Operating Range

Precipitation rate: 0.48 to 1.23 inches per hour (12 to 31 mm/h)

Pressure: 50 to 100 psi (3.5 to 6.9 bar)

Flow: 3.8 to 36.3 gpm (0.86 to 8.24 m3/h; 14.4 to 137.4 l/m)

1 Inch (26/34) NPT or BSP female threaded inlet.

SAM check device holds up to 10 feet (3.1 m) of head.

Nozzle outlet trajectory is 25 Degree

Coverage Arc

40-360 Degree Reversing Full and Part-Circle

Features

Memory Arc returns the rotor to its original arc setting
Non-strippable drive mechanism prevents damage from vandals
Brass reinforcing shaft of the nozzle turret to riser withstands vandal kick
Full and part circle operation in one unit to reduce inventory requirements
Easy, wet, dry arc adjustment with slotted screwdriver through top of rotor from 50 to 330 Degree part-circle, 360° non-reversing full-circle
Left and right side trips adjustable for ease of installation without turning the case and loosening the pipe connection
Seal-A-Matic (SAM) check device/riser to help prevent low head drainage
Water-lubricated gear drive
Rain Curtain nozzles for optimal distribution and close-in watering resulting in superior uniformity

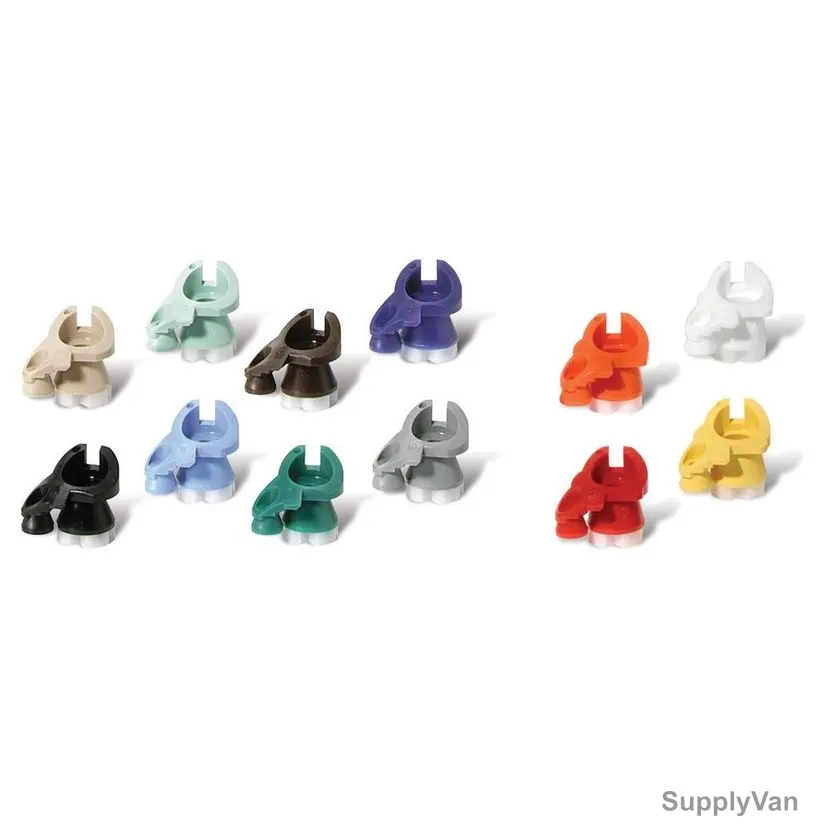

Nozzles are interchangeable from the front with no special tools
Self-adjusting turbine stator allows nozzle replacement with no other adjustments required
Heavy duty retract spring ensures positive pop-down
Standard rubber cap (Green)
Gear Drive, Rain Curtain Nozzles
Pop-Up Height: 5 Inch
