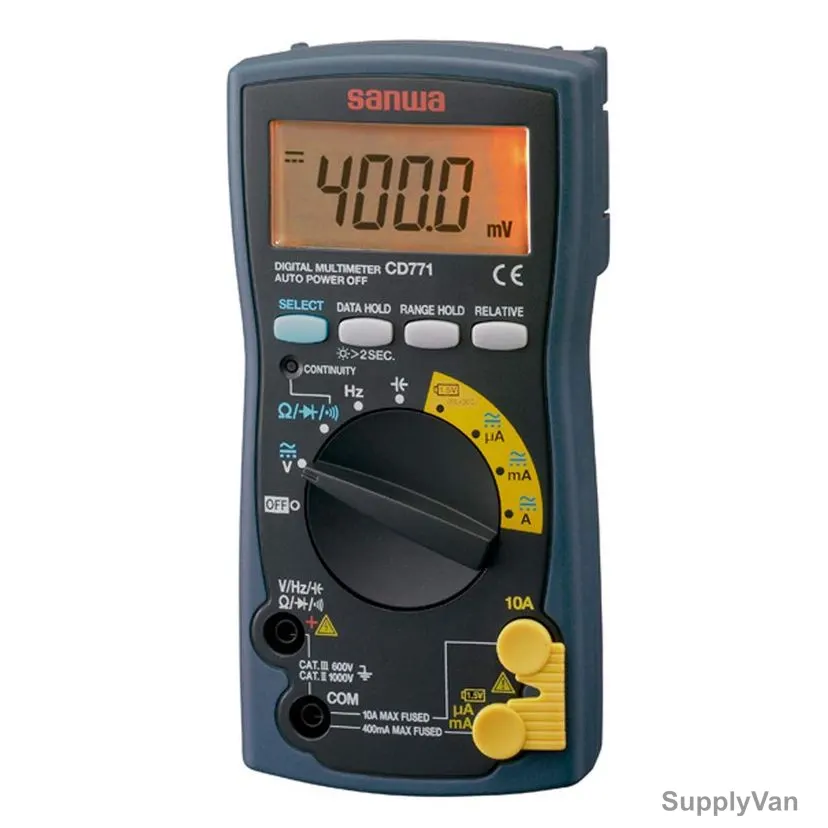

Sanwa Digital Multimeter, CD771, 4000 Counts
- Brand:
- Sanwa
- SKU:
- 536133475112
- Minimum Purchase:
- 1 unit
- Item Name:
- Digital Multimeter
- Model:
- CD771
- Manufacturer:
- Sanwa
- Resistance Accuracy:
- +/-(1.2%+5)
- Bandwidth:
- 40 to 400Hz
- Display Type:
- Numerical
- Width (MilliMeter):
- 82 mm
- Height (MilliMeter):
- 166 mm
- Depth:
- 44 mm
- Battery Type:
- R6P x 2
- Measuring Voltage Range - AC:
- 4 to 1000V
- Measuring Voltage Range - DC:
- 400mV-1000V
- Measuring Current Range - DC:
- 400u-10A
- Measuring Current Range - AC:
- 400u-10A
- Measuring Capacitance Range:
- 50nF-100 microfarad
- DC Voltage Accuracy:
- +/-(0.5%+2)
- AC Voltage Accuracy:
- +/- (1.2%+7)
- Frequency Accuracy:
- +/-(0.3%+3)
- Capacitance Accuracy:
- +/-(5.0%+10)
- Measuring Resistance Range:
- 400-40mohm
- Measuring Frequency Range:
- 5-100kHz
- Fuse:
- 0.5A/1000V 30kA Dia 6.35x32 mm, 10A/1000V 30kA Dia 10x38 mm
- Brand Origin (not manufacture):
- Japan
- Product Size L x B x H (Cms):
- 8.2L x 4.4B x 16.6H
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
- 3-3/4 digits 4000 count
- Easy to read large LCD with Backlight
- Large breaking capacity fuse 30kA
- 1.5V battery check function
- Thermo plastic elastomer, high resistance against drop shock
- Safety cap on current terminal
- Data hold, Range hold, Relative function
- Continuity check, Diode test
- Auto power off function (30min.)
- Maximum 20A can be measured if the measurement time is less than 10 seconds
- Take 10 minutes or longer intervals between measurements
Items Included:
Test lead(TL-23a), Instruction manual
Item Name: |
Digital Multimeter |
Model: |
CD771 |
Manufacturer: |
Sanwa |
Resistance Accuracy: |
+/-(1.2%+5) |
Bandwidth: |
40 to 400Hz |
Display Type: |
Numerical |
Width (MilliMeter): |
82 mm |
Height (MilliMeter): |
166 mm |
Depth: |
44 mm |
Battery Type: |
R6P x 2 |
Measuring Voltage Range - AC: |
4 to 1000V |
Measuring Voltage Range - DC: |
400mV-1000V |
Measuring Current Range - DC: |
400u-10A |
Measuring Current Range - AC: |
400u-10A |
Measuring Capacitance Range: |
50nF-100 microfarad |
DC Voltage Accuracy: |
+/-(0.5%+2) |
AC Voltage Accuracy: |
+/- (1.2%+7) |
Frequency Accuracy: |
+/-(0.3%+3) |
Capacitance Accuracy: |
+/-(5.0%+10) |
Measuring Resistance Range: |
400-40mohm |
Measuring Frequency Range: |
5-100kHz |
Fuse: |
0.5A/1000V 30kA Dia 6.35x32 mm, 10A/1000V 30kA Dia 10x38 mm |
Brand Origin (not manufacture): |
Japan |
Product Size L x B x H (Cms): |
8.2L x 4.4B x 16.6H |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
