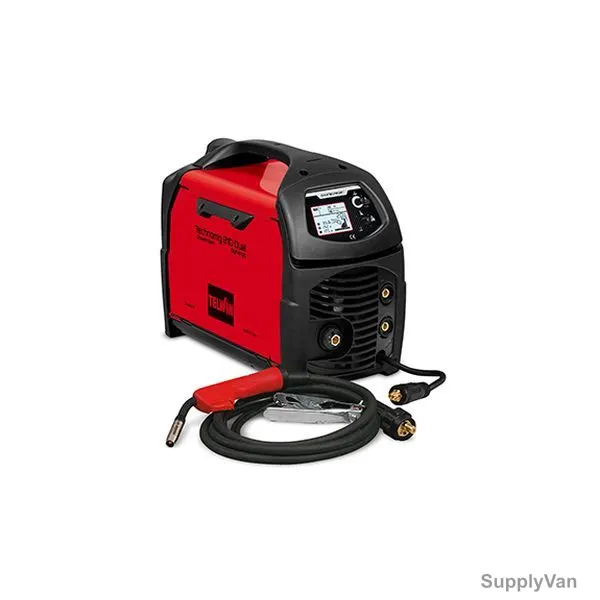

Telwin Multiprocess Welding Machine, 816055, 1 Phase, 230V, 200A
Telwin

Telwin Multiprocess Welding Machine, 816055, 1 Phase, 230V, 200A

SV Code: 664529325887Model No.: 816055
230 VAC50/60Hz120-200 A78 V
AED 3,600.00/ Piece
Price includes VAT· Sign in to see your account priceMore Details
Out of stock
Return or exchange within 30 days of delivery.Sign in to see your account price and place orders.

Key features

  • Polarity reversal for NO GAS/Flux, MIG-MAG/BRAZING welding
  • 25 synergy curves available
  • Visualization on LCD display of voltage, current, welding speed
  • Regulation of: wire speed up slope, electronic reactance, burn-back time, post gas
  • Choice of 2/4 times, spot operation
  • VRD device
Full description & specifications ↓
Fast delivery Genuine & warranty Bulk quotes

Specifications

SV Code664529325887
BrandTelwin
CategoryMultiprocess Welding Machines
UnitPiece
Voltage230 VAC
Frequency50/60Hz
Phase1
Power Factor0.7
Current Range20-200 A
Maximum Voltage(no load)78 V
Efficiency84%
Electrode Diameter1.6-3.2 mm
Accessories Included1x Cable TW05V-A 1X025 1.80M Plug Atlas, 1x Toledo 250 Work Clamp 250A, 1x MT15 MIG Torch 3M (Red)
Brand Origin (not manufacture)Italy
DeliveryNot on the shelf right now; 7 working days to source and deliver.

Description

Microprocessor controlled, MIG-MAG/FLUX/BRAZING/MMA/ TIG DC-Lift multiprocess inverter wire welding machine. Technomig Dual Synergic is confirmed as the perfect solution for a wide range of applications, from maintenance to installation and interventions in body shops, because of its flexibility and the different materials it can weld (steel, stainless steel, aluminium) or braze weld (galvanized sheet). The fast SYNERGIC regulation of the welding parameters, thanks to the ONE TOUCH LCD SYNERGY technology, makes this product easy to use. The intelligent and automatic control of the arc, moment by moment, maintains high welding performance in all working conditions, with different materials and/or gases. The operator can also intervene manually along the arc length: this adjustment means the weld seam can be modified according to the welder's style. The ONE TOUCH LCD graphic display allows for a better reading of all welding parameters. Lightweight and very compact, Technomig can be moved around easily in all intervention areas, both indoors and outdoors.

Features

  • Polarity reversal for NO GAS/Flux, MIG-MAG/BRAZING welding
  • 25 synergy curves available
  • Visualization on LCD display of voltage, current, welding speed
  • Regulation of: wire speed up slope, electronic reactance, burn-back time, post gas
  • Choice of 2/4 times, spot operation
  • VRD device
  • Thermostatic, overvoltage, under voltage, overcurrent, motor generator (+/- 15%) protections
  • Complete with MIG-MAG torch, work clamp and cable

Certifications & Standards

Ingress ProtectionIP23
CertificationCE, EAC
