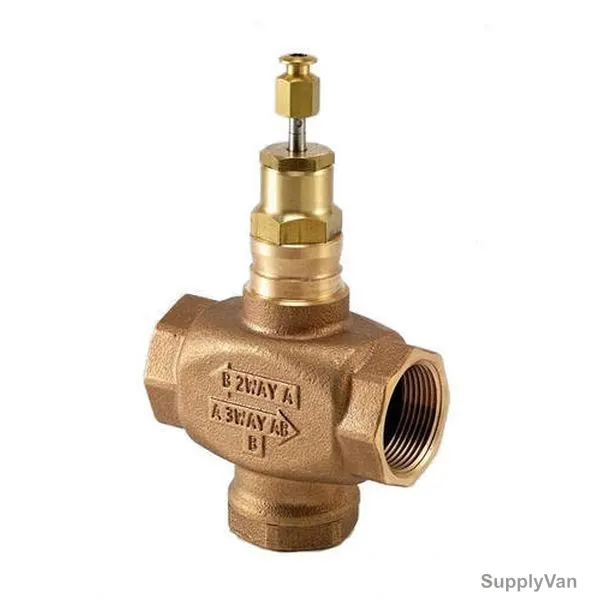

Honeywell 2-Way Threaded Electric Valve Actuator, V5011P1012, 1.25 Inch, BSPT, PN20, Bronze
(No reviews yet)
Write a Review
- Brand:
- Honeywell
- SKU:
- 721555196465
- Minimum Purchase:
- 1 unit
- Item Name:
- Electric Valve Actuator
- Model:
- V5011P1012
- Manufacturer:
- Honeywell
- Material:
- Brass
- Color:
- Bronze
- Pipe Size:
- 1.25 Inch
- Pressure:
- PN20
- Lifetime:
- 250,000 full cycles
- Thread Type:
- BSPT
- Height:
- 184mm
- Width:
- 354.5mm
- Depth:
- 72.5mm
- Connection Type:
- Thread
- Stem Diameter:
- 3/8 Inch
- Diameter Nominal:
- DN32
- Capacity Index:
- 18.7 Cv
- Brand Origin (not manufacture):
- Germany
- Unit:
- Piece
Description
The V5011P is a two-way threaded globe valve that control steam, water, and glycol solutions (up to 50 percent concentration) in heating or cooling HVAC applications. The valve is used in two-position and modulating control systems. The valve is not suitable for combustible gas service.
View AllClose
- Red brass body with BSPT-threaded end connections
- Low seat leakage rate (≤0.05 percent of Cv)
- 50:1 rangeability per VDI/VDE 2173
- Spring-loaded, self-adjusting packing
- Accurate positioning to ensure state of the art temperature control
- Directly coupled electric and pneumatic actuators for easy mounting
- Valve designs provide equal percentage flow characteristic for water and linear flow characteristic for steam
- Stainless steel stem and metal-to metal seats
- Repack and rebuild kits for field servicing
Item Name: |
Electric Valve Actuator |
Model: |
V5011P1012 |
Manufacturer: |
Honeywell |
Material: |
Brass |
Color: |
Bronze |
Pipe Size: |
1.25 Inch |
Pressure: |
PN20 |
Lifetime: |
250,000 full cycles |
Thread Type: |
BSPT |
Height: |
184mm |
Width: |
354.5mm |
Depth: |
72.5mm |
Connection Type: |
Thread |
Stem Diameter: |
3/8 Inch |
Diameter Nominal: |
DN32 |
Capacity Index: |
18.7 Cv |
Brand Origin (not manufacture): |
Germany |
Unit: |
Piece |
