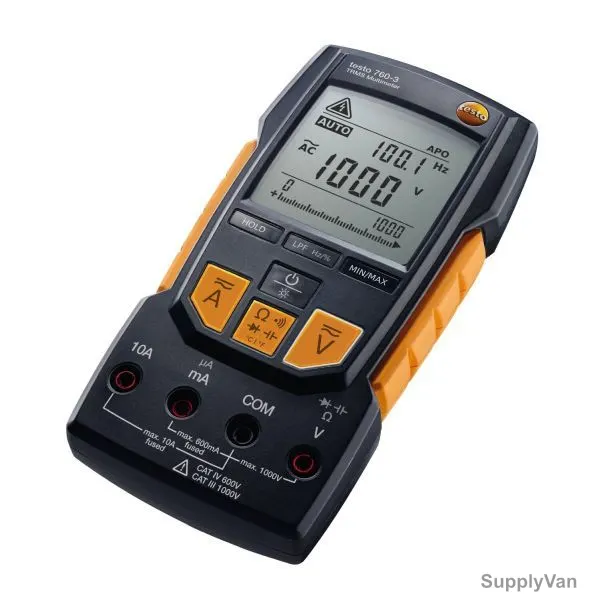

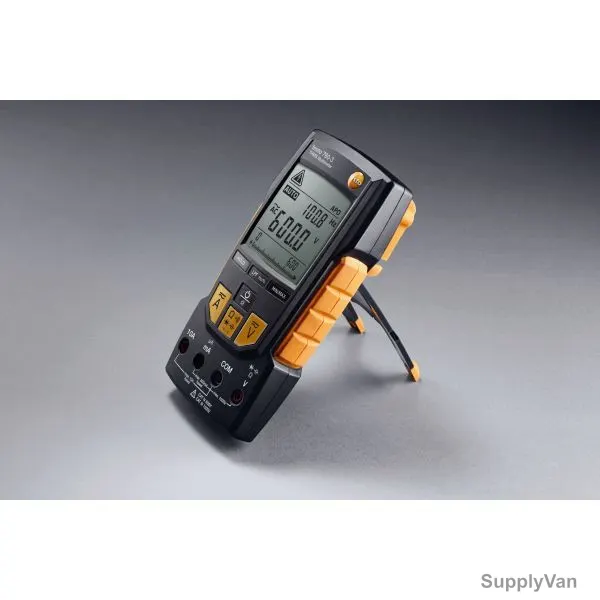

Testo TRMS Multimeter, 760-3, 6000 Count

(No reviews yet) Write a Review
Brand:
Testo
SKU:
392577569214
Minimum Purchase:
1 unit
Item Name:
TRMS Multimeter
Model:
760-3
Article Number:
0590 7603
Manufacturer:
Testo
Color:
Black
Display Size:
2 Lines
Temperature Resolution:
0.2 deg.C
Battery Size:
AAA
Interface Type:
4 measuring jacks
Resistance Accuracy:
+/- (1.5 % of mv + 3 Digit)
Display Type:
LCD
Battery Type:
Micro
Measuring Voltage Range - AC:
0.1 mV to 1000V
Measuring Voltage Range - DC:
0.1 to 1000V
Storage Temperature:
-15 to 60 deg.C
Operating Temperature:
-10 to +50 deg.C
Measuring Current Range - DC:
0.1uA to 10A
Measuring Current Range - AC:
0.1uA to 10A
Measuring Capacitance Range:
2nF to 30.00mF
DC Voltage Accuracy:
+/- (0.8 % of mv + 3 Digit)
AC Voltage Accuracy:
+/- (1.0 % of mv + 3 Digit)
Frequency Accuracy:
+/- (0.1 % of mv + 1 Digit)
Capacitance Accuracy:
+/- (1.5 % of mv + 5 Digit)
Measuring Resistance Range:
0.01 to 60.00 Mohm
Measuring Frequency Range:
2Hz to 60.00MHz
Accuracy:
+/-1 deg.C (0 to 100 deg.C)
Humidity:
0 to 80%RH
Ingress Protection (IP Rating):
IP64
Application:
Automatic detection and selection of measurement parameters, current measurement in the uA range, voltage range up to 1000V, (TRMS) measurement, low pass filter, operation via function keys, large illuminated display, temperature adapter.
Brand Origin (not manufacture):
Germany
Standards:
EN 61326-1; EN 61010-2-033; EN 61140
Certification:
10881,2937
Product Size L x B x H (Cms):
16.7L x 8.5B x 4.5H
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
  • Testo TRMS Multimeter, 760-3, 6000 Count
  • Testo TRMS Multimeter, 760-3, 6000 Count
  • Testo TRMS Multimeter, 760-3, 6000 Count
  • Testo TRMS Multimeter, 760-3, 6000 Count
  • Testo TRMS Multimeter, 760-3, 6000 Count
  • Testo TRMS Multimeter, 760-3, 6000 Count
  • Testo TRMS Multimeter, 760-3, 6000 Count
  • Testo TRMS Multimeter, 760-3, 6000 Count
  • Testo TRMS Multimeter, 760-3, 6000 Count
AED923.00

Description

The testo 760 digital multimeter family comprises three models for all important electrical measuring tasks. Function keys replace the traditional dial on all three instruments, which means easier operation and greater reliability. Incorrect settings are now impossible, because the measurement parameters are detected automatically via the assignment of the measuring sockets and also shown by the illumination of the appropriate function keys. This prevents accidentally blowing the meter's fuse because of incorrect connections.
  • Easy, reliable work thanks to automatic measurement parameter detection
  • Comfortable, one-handed operation without any dial
  • Voltage range up to 1000V
  • Additional functions, such as true root mean square measurement - TRMS, low-pass filter and temperature adapter

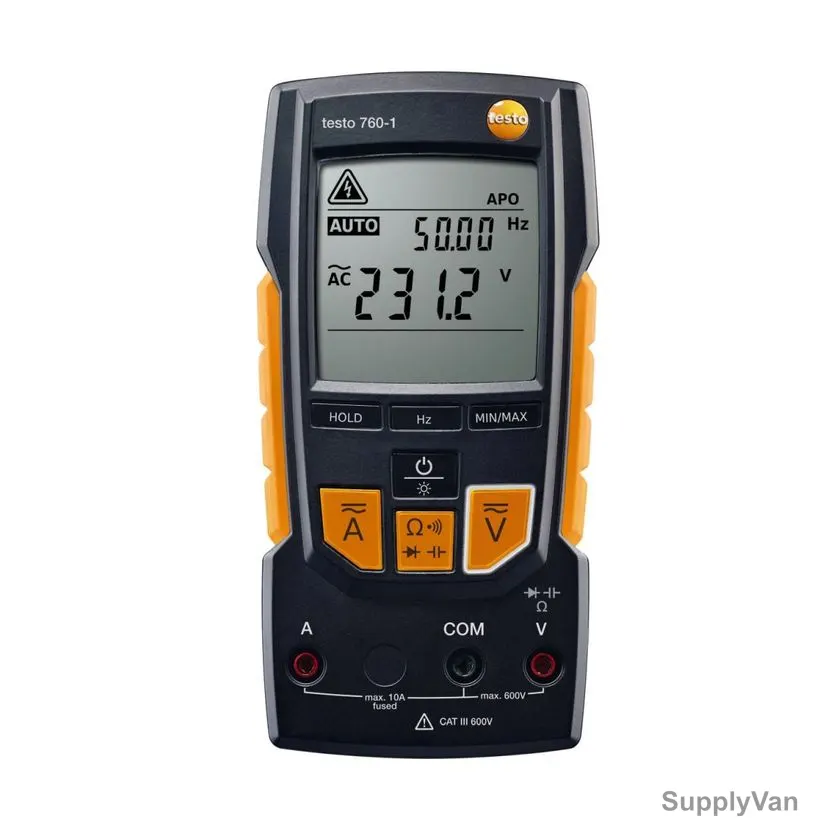

  • The testo 760-1 model is the standard version for virtually all daily measuring tasks
  • The testo 760-2 is differentiated by a larger current measurement range, the true root mean square measurement - TRMS - and a low-pass filter
  • The testo 760-3 is the model with the highest specification and, in addition to the features of the other two models, it has a voltage range of up to 1000V, along with higher measuring ranges for frequency and capacitance
  • True RMS measurement function, Larger Current measuring range
  • Larger Voltage measuring range, Larger Frequency measuring range, Larger Capacitance measuring range
  • Instrument Measurement Functions - Diode test, Continuity testing, Current probe measurement with adapter, Display lighting, Hold, MinMax, Temperature measurement with adapter, True RMS, Low-pass filter
  • Instrument Measurement Functions - Duty cycle measurement, uA current measuring range, Autom. measurement parameter detection

Items Included:
testo 760-3 TRMS Multimeter, batteries and 1 set of measuring cables
Item Name:
TRMS Multimeter
Model:
760-3
Article Number:
0590 7603
Manufacturer:
Testo
Color:
Black
Display Size:
2 Lines
Temperature Resolution:
0.2 deg.C
Battery Size:
AAA
Interface Type:
4 measuring jacks
Resistance Accuracy:
+/- (1.5 % of mv + 3 Digit)
Display Type:
LCD
Battery Type:
Micro
Measuring Voltage Range - AC:
0.1 mV to 1000V
Measuring Voltage Range - DC:
0.1 to 1000V
Storage Temperature:
-15 to 60 deg.C
Operating Temperature:
-10 to +50 deg.C
Measuring Current Range - DC:
0.1uA to 10A
Measuring Current Range - AC:
0.1uA to 10A
Measuring Capacitance Range:
2nF to 30.00mF
DC Voltage Accuracy:
+/- (0.8 % of mv + 3 Digit)
AC Voltage Accuracy:
+/- (1.0 % of mv + 3 Digit)
Frequency Accuracy:
+/- (0.1 % of mv + 1 Digit)
Capacitance Accuracy:
+/- (1.5 % of mv + 5 Digit)
Measuring Resistance Range:
0.01 to 60.00 Mohm
Measuring Frequency Range:
2Hz to 60.00MHz
Accuracy:
+/-1 deg.C (0 to 100 deg.C)
Humidity:
0 to 80%RH
Ingress Protection (IP Rating):
IP64
Application:
Automatic detection and selection of measurement parameters, current measurement in the uA range, voltage range up to 1000V, (TRMS) measurement, low pass filter, operation via function keys, large illuminated display, temperature adapter.
Brand Origin (not manufacture):
Germany
Standards:
EN 61326-1; EN 61010-2-033; EN 61140
Certification:
10881,2937
Product Size L x B x H (Cms):
16.7L x 8.5B x 4.5H
Delivery Time:
2-7 Days
Unit:
Piece
