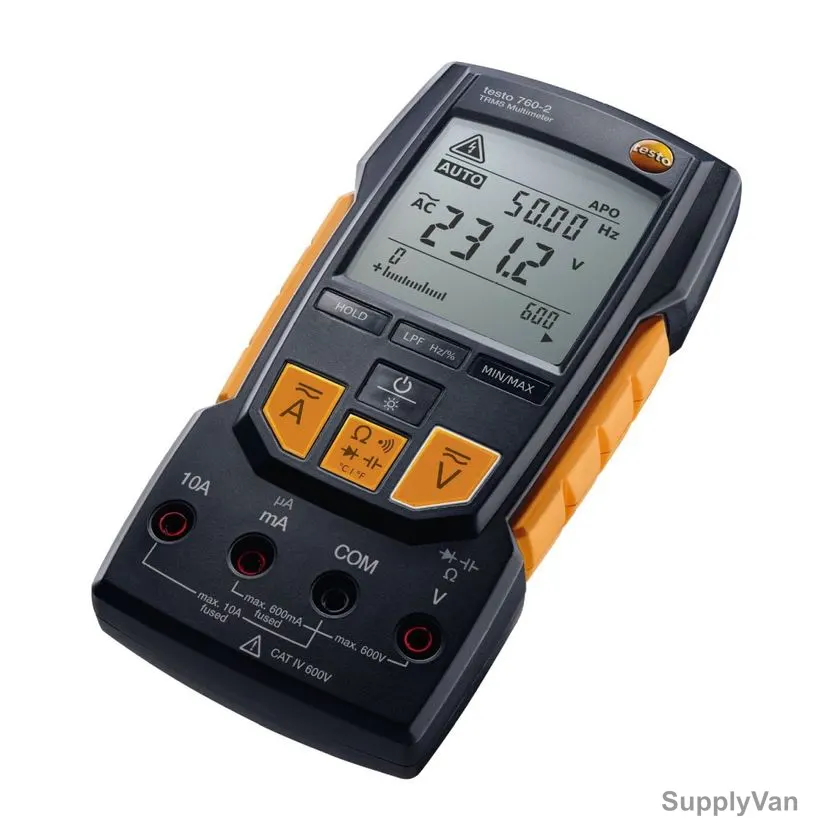

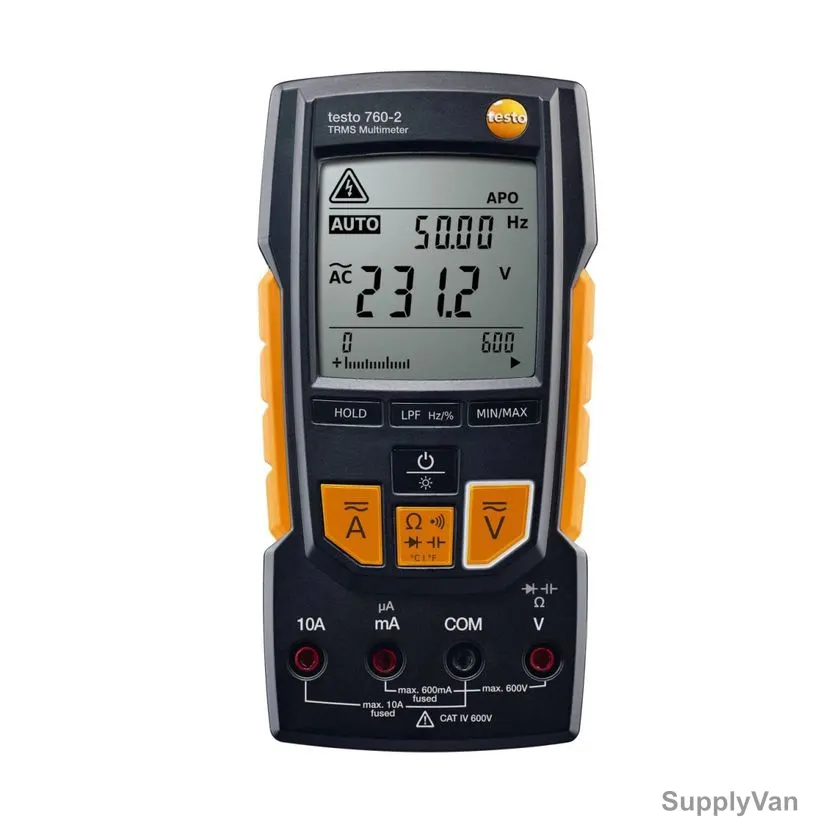

Testo TRMS Digital Multimeter, 760-2, 2 Line Display, Black/Orange

(No reviews yet) Write a Review
Brand
SKU:
912448423712
Minimum Purchase:
1 unit
Item Name:
Digital Multimeter
Model:
760-2
Article Number:
0590-7602
Manufacturer:
Testo
Color:
Black and Orange
Display Size:
2 Line
Battery Size:
AAA
Safety Rating:
CAT III 1000V, CAT IV 600V
Temperature Range:
-20 to +500 Deg.C
DC Current Accuracy:
+/-(1.5% of mv +5 Digit)
AC Current Accuracy:
+/-(1.5% of mv +5 Digit)
Interface Type:
2 Measuring Jacks
Resistance Accuracy:
+/-(1.5% of mv +3 Digit)
Display Count:
6000 Count
Dimensions:
167 x 85 x 45mm
Resolution:
0.2 Deg.C
Display Type:
LCD
Measuring Voltage Range - AC:
0.1mV/600V
Measuring Voltage Range - DC:
0.1mV/600V
Storage Temperature:
-15 to +60 Deg.C
Operating Temperature:
-10 to +50 Deg.C
Measuring Current Range - DC:
0.1 ?A /10A
Measuring Current Range - AC:
0.1 ?A /10A
Measuring Capacitance Range:
0.001 nF to 30000 ?F
DC Voltage Accuracy:
+/-(0.8% of mv +3 Digit)
Temperature Accuracy:
+/-1 Deg.C (0 to +100 Deg.C)
AC Voltage Accuracy:
+/-(1.0% of mv +3 Digit)
Frequency Accuracy:
+/-(0.1% of mv +1 Digit)
Capacitance Accuracy:
+/-(1.5% of mv +5 Digit)
Measuring Resistance Range:
0.01/60 MOhm
Measuring Frequency Range:
.001 Hz/30 MHz
Relative Humidity:
0 to 80% RH
Ingress Protection (IP Rating):
IP64
Brand Origin (not manufacture):
Germany
Standards:
1842,16494,16492
Certification:
7048,2937
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
AED823.75
AED695.00 (Incl.VAT)
(You save AED128.75 )
Testo TRMS Digital Multimeter, 760-2, 2 Line Display, Black/Orange

Testo TRMS Digital Multimeter, 760-2, 2 Line Display, Black/Orange

SKU: 912448423712

Product Description

The testo 760-2 digital handheld multimeter means you can measure electrical parameters more easily and reliably than ever before. In contrast to other multimeters, the testo 760-2 automatically detects the appropriate measurement parameter via the socket assignment – and therefore rules out any dangerous incorrect settings.

It is not operated conventionally by a dial, but with illuminated function keys. This means you can easily control the measuring instrument with just one hand. The large, illuminated display shows the readings clearly.

The testo 760-2 digital multimeter has the most important functions for measuring current, voltage and resistance. The measurement of current strength is also possible in the µA range thanks to the larger measuring range. And the integrated low-pass filter achieves more accurate measurement results on frequency converter controlled motors.Temperatures can also be measured with this multimeter in addition to electrical parameters.


  • Easy, reliable work thanks to automatic measurement parameter detection
  • Current measurement in the µA range
  • True root mean square measurement - TRMS
  • Low-pass filter for accurate measurement results on frequency converter controlled motors

Items Included:

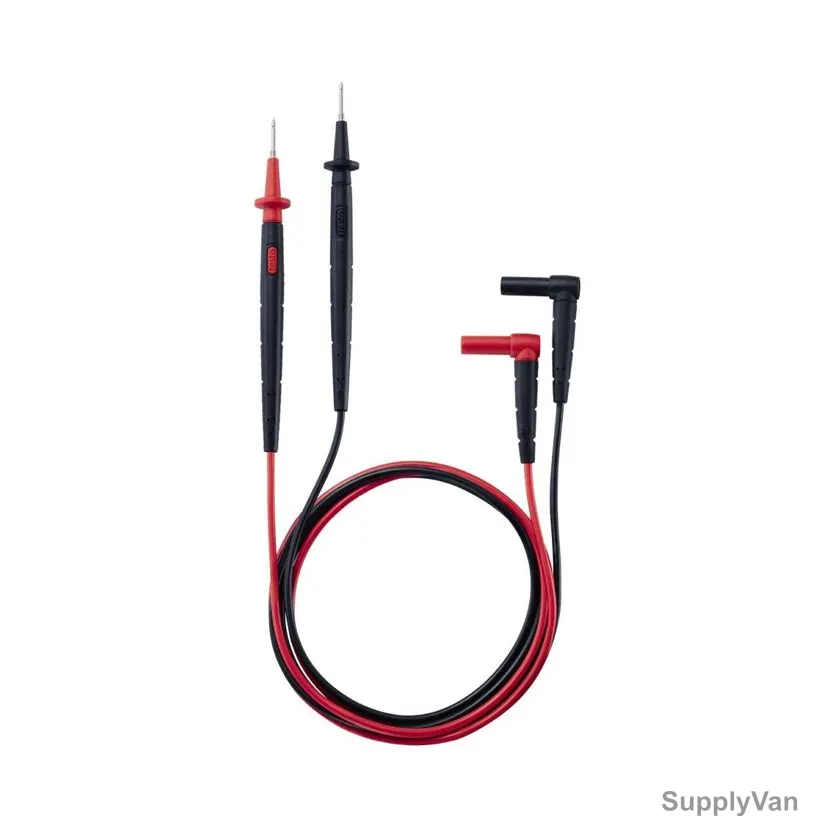

1x Testo 760-2 TRMS Multimeter, 3x Batteries, 1 set of Measuring Cables (0590 0010), 1x Adapter for Thermocouples Type K and Instruction Manual.
