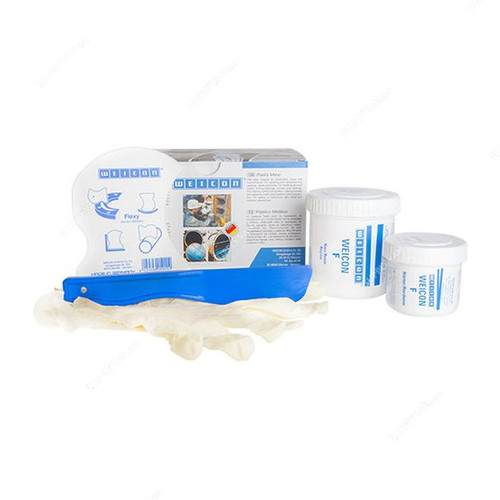

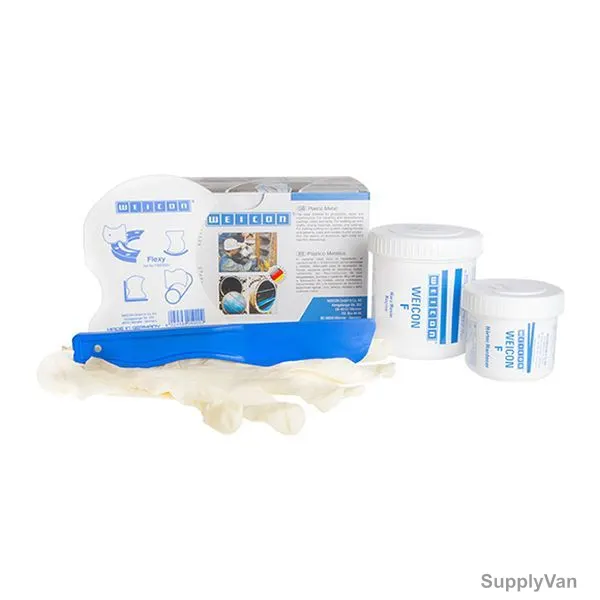

Weicon F Epoxy Resin, 10150002, 0.2 Kg
- Brand:
- Weicon
- SKU:
- 154973873568
- Minimum Purchase:
- 1 unit
- Item Name:
- Epoxy Resin
- Manufacturer:
- Weicon
- Size:
- 0.2 Kg
- Application Area:
- Tool construction, Model and Mould making, and in many other industrial applications
- Curing Time:
- 10 hrs
- Viscosity:
- 880000 MPa
- Tensile Strength:
- 38 MPa
- Hardness:
- 80 +/-3
- Elongation at Break:
- 0.7%
- Processing Temperature:
- +15 to 40 Deg.C
- Mixing Ratio by Weight:
- 100:20
- Mixing Ratio by Volume:
- 100:26
- Density:
- 1.7 g/cu.cm
- Max. Layer Thickness:
- 10mm
- Temperature Resistance:
- -35 to +120 Deg.C
- Heating Capacity:
- 0.89 J
- Thermal Conductivity:
- 1.4 W/mK
- Final Strength:
- 24 hrs
- Compressive Strength:
- 61 MPa
- Color After Curing:
- Aluminium
- Bending Strength:
- 37 MPa
- Adhesion Strength:
- 14 MPa
- Brand Origin (not manufacture):
- Germany
- Product Size L x B x H (Cms):
- 19.4L x 11B x 11.8H
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
Weicon F is particularly suited for applications on components made from aluminium, aluminium alloys, magnesium and other light metals. Weicon F can be used for inexpensive repairs of all types, for filling in blowholes on light metal castings and for the reconstruction of components. Weicon F can be used in tool construction, model and mould making, and in many other industrial applications.
View AllClose
- Pasty
- Aluminium-filled
- Non-corrosive and anti-magnetic
- High temperature resistant
- Frost-proof
- Quick-hardening and extra strong
Item Name: |
Epoxy Resin |
Manufacturer: |
Weicon |
Size: |
0.2 Kg |
Application Area: |
Tool construction, Model and Mould making, and in many other industrial applications |
Curing Time: |
10 hrs |
Viscosity: |
880000 MPa |
Tensile Strength: |
38 MPa |
Hardness: |
80 +/-3 |
Elongation at Break: |
0.7% |
Processing Temperature: |
+15 to 40 Deg.C |
Mixing Ratio by Weight: |
100:20 |
Mixing Ratio by Volume: |
100:26 |
Density: |
1.7 g/cu.cm |
Max. Layer Thickness: |
10mm |
Temperature Resistance: |
-35 to +120 Deg.C |
Heating Capacity: |
0.89 J |
Thermal Conductivity: |
1.4 W/mK |
Final Strength: |
24 hrs |
Compressive Strength: |
61 MPa |
Color After Curing: |
Aluminium |
Bending Strength: |
37 MPa |
Adhesion Strength: |
14 MPa |
Brand Origin (not manufacture): |
Germany |
Product Size L x B x H (Cms): |
19.4L x 11B x 11.8H |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
