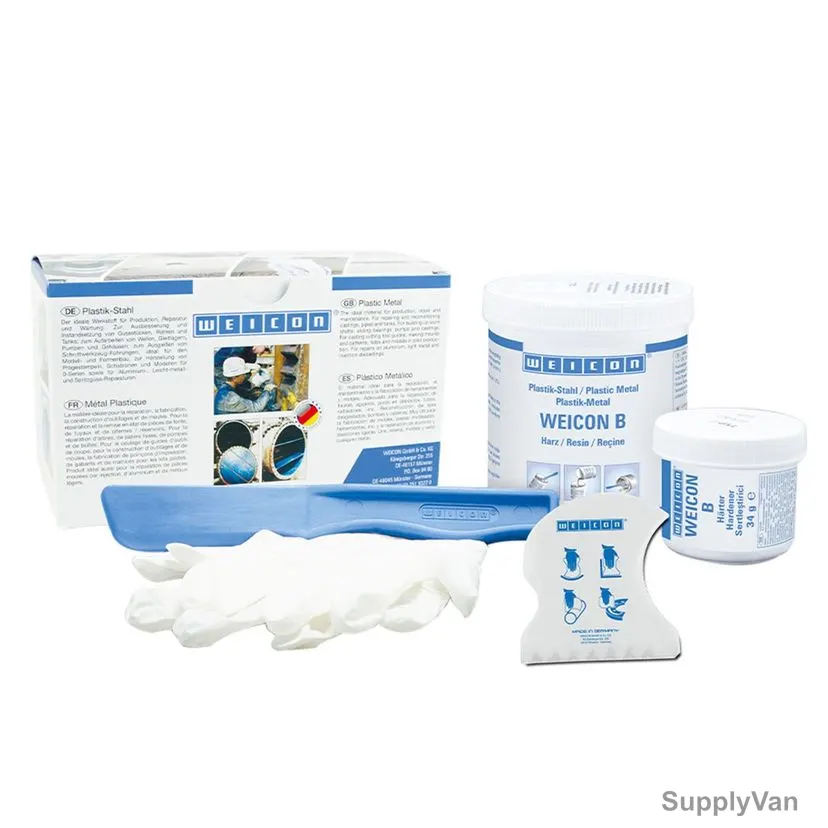

Weicon B Epoxy Resin, 10050005, 0.5 Kg
- Brand:
- Weicon
- SKU:
- 668168871126
- Minimum Purchase:
- 1 unit
- Item Name:
- Epoxy Resin
- Manufacturer:
- Weicon
- Size:
- 0.5 Kg
- Application Area:
- Machine construction, Tool construction, Model and Mould making, and in many other application
- Curing Time:
- 16 hrs
- Viscosity:
- 200000 MPa
- Tensile Strength:
- 34 MPa
- Hardness:
- 77 +/-3
- Elongation at Break:
- 1.1%
- Processing Temperature:
- +15 to 40 Deg.C
- Mixing Ratio by Weight:
- 100:7
- Mixing Ratio by Volume:
- 100:23
- Density:
- 4.1 g/cu.cm
- Max. Layer Thickness:
- 30mm
- Temperature Resistance:
- -35 to +120 Deg.C
- Heating Capacity:
- 0.68 J
- Thermal Conductivity:
- 0.7 W/mK
- Final Strength:
- 24 hrs
- Compressive Strength:
- 110 MPa
- Color After Curing:
- Dark Grey
- Bending Strength:
- 52 MPa
- Adhesion Strength:
- 17 MPa
- Brand Origin (not manufacture):
- Germany
- Product Size L x B x H (Cms):
- 19.4L x 11B x 11.8H
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
Weicon B is particularly suited for detailed reproductions in model and mould making, for the production of tools, templates, gauges and fixtures, for filling in blowholes and microporosities, in castings and for general repair work where a casting compound is advantageous. Weicon B can be used in machine construction, tool construction, model and mould making, and in many other applications.
View AllClose
- Viscous
- Steel-filled
- Low viscosity, which simplifies filling
- Exact reproduction of the model while pouring
- Possibility of precise machining
- Low shrinkage
Item Name: |
Epoxy Resin |
Manufacturer: |
Weicon |
Size: |
0.5 Kg |
Application Area: |
Machine construction, Tool construction, Model and Mould making, and in many other application |
Curing Time: |
16 hrs |
Viscosity: |
200000 MPa |
Tensile Strength: |
34 MPa |
Hardness: |
77 +/-3 |
Elongation at Break: |
1.1% |
Processing Temperature: |
+15 to 40 Deg.C |
Mixing Ratio by Weight: |
100:7 |
Mixing Ratio by Volume: |
100:23 |
Density: |
4.1 g/cu.cm |
Max. Layer Thickness: |
30mm |
Temperature Resistance: |
-35 to +120 Deg.C |
Heating Capacity: |
0.68 J |
Thermal Conductivity: |
0.7 W/mK |
Final Strength: |
24 hrs |
Compressive Strength: |
110 MPa |
Color After Curing: |
Dark Grey |
Bending Strength: |
52 MPa |
Adhesion Strength: |
17 MPa |
Brand Origin (not manufacture): |
Germany |
Product Size L x B x H (Cms): |
19.4L x 11B x 11.8H |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
