Weicon Ceramic BL Epoxy Resin, 10400005, 0.5 Kg
(No reviews yet)
Write a Review
- Brand:
- Weicon
- SKU:
- 372971742369
- Minimum Purchase:
- 1 unit
- Item Name:
- Epoxy Resin
- Manufacturer:
- Weicon
- Size:
- 0.5 Kg
- Application Area:
- Machine and System construction, Maritime Industry and in many other applications
- Curing Time:
- 8 hrs
- Viscosity:
- 23000 MPa
- Tensile Strength:
- 59 MPa
- Hardness:
- 90 +/-3
- Elongation at Break:
- 0.9%
- Processing Temperature:
- +15 to 40 Deg.C
- Mixing Ratio by Weight:
- 100:8
- Mixing Ratio by Volume:
- 100:15
- Density:
- 1.8 g/cu.cm
- Max. Layer Thickness:
- 10mm
- Temperature Resistance:
- -35 to +180 Deg.C
- Heating Capacity:
- 0.91 J
- Thermal Conductivity:
- 0.6 W/mK
- Final Strength:
- 12 hrs
- Compressive Strength:
- 116 MPa
- Color After Curing:
- Blue
- Bending Strength:
- 80 MPa
- Adhesion Strength:
- 17 MPa
- Brand Origin (not manufacture):
- Germany
- Product Size L x B x H (Cms):
- 19.4L x 11B x 11.8H
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

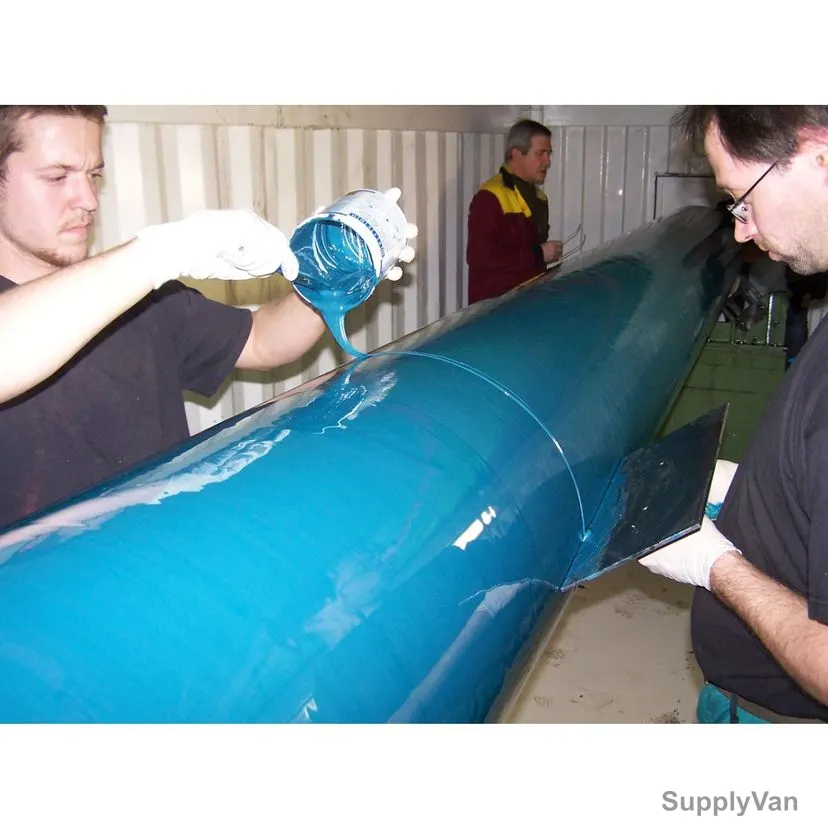

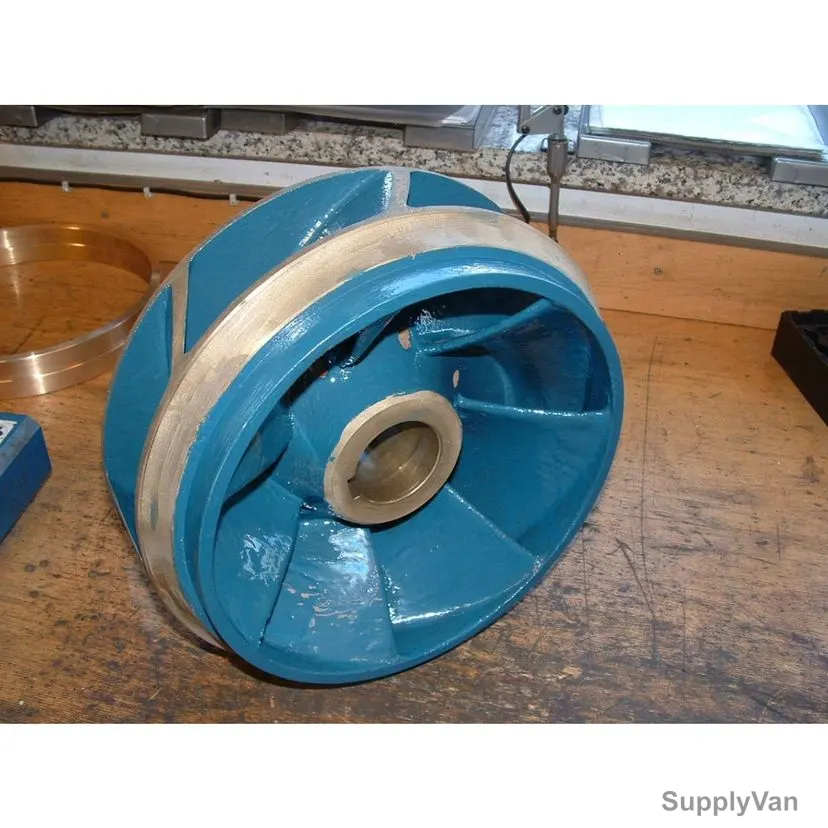

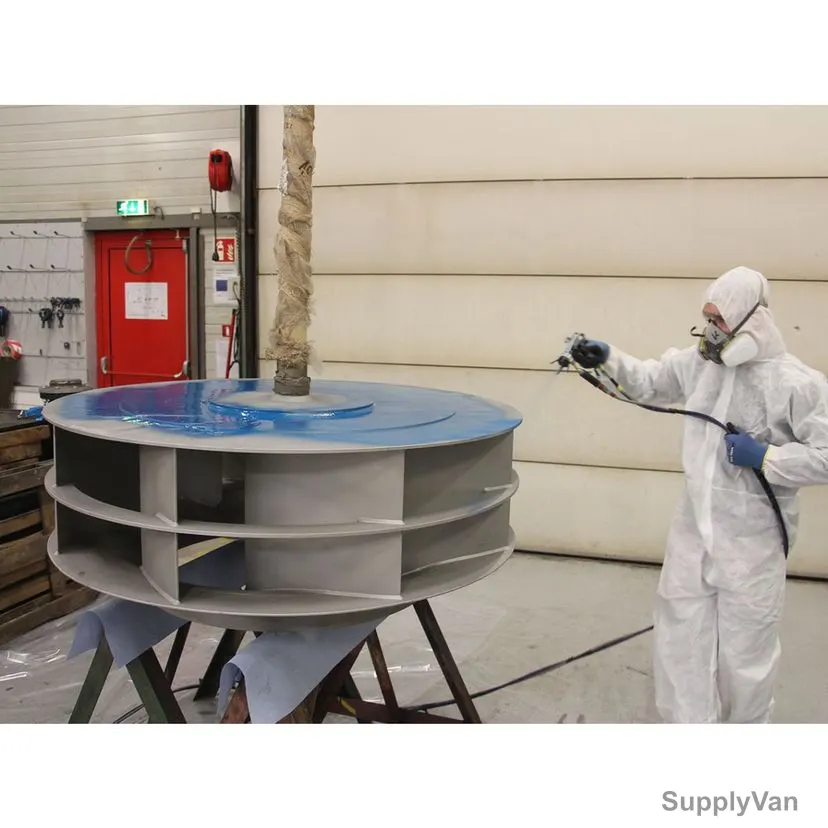

Weicon Ceramic BL is liquid, brushable, filled with silicium carbide and zirconium silicate, temperature resistant up to +180 Deg.C and resistant to chemicals. It offers extreme wear protection and high abrasion resistance. Weicon Ceramic BL is particularly suited for the lining of heavily stressed pump housings, as wear protection for slide bearings, slides, funnels and pipes and for the repair of castings, valves and blower fans. The product can be used in machine and system construction, the maritime industry and in many other applications.
View AllClose
- Mineral-filled
- Extremely wear resistant
- High temperature resistant from -35 Deg.C up to +180 Deg.C
Item Name: |
Epoxy Resin |
Manufacturer: |
Weicon |
Size: |
0.5 Kg |
Application Area: |
Machine and System construction, Maritime Industry and in many other applications |
Curing Time: |
8 hrs |
Viscosity: |
23000 MPa |
Tensile Strength: |
59 MPa |
Hardness: |
90 +/-3 |
Elongation at Break: |
0.9% |
Processing Temperature: |
+15 to 40 Deg.C |
Mixing Ratio by Weight: |
100:8 |
Mixing Ratio by Volume: |
100:15 |
Density: |
1.8 g/cu.cm |
Max. Layer Thickness: |
10mm |
Temperature Resistance: |
-35 to +180 Deg.C |
Heating Capacity: |
0.91 J |
Thermal Conductivity: |
0.6 W/mK |
Final Strength: |
12 hrs |
Compressive Strength: |
116 MPa |
Color After Curing: |
Blue |
Bending Strength: |
80 MPa |
Adhesion Strength: |
17 MPa |
Brand Origin (not manufacture): |
Germany |
Product Size L x B x H (Cms): |
19.4L x 11B x 11.8H |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
