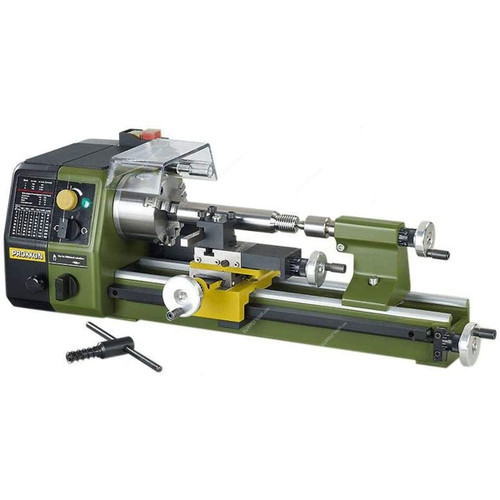

Proxxon Precision Lathe, PRX-24002, PD 250/E, 230V, 560MM Length
(No reviews yet)
Write a Review
- Brand:
- Proxxon
- SKU:
- 896321975795
- Minimum Purchase:
- 1 unit
- Item Name:
- Precision Lathe
- Model:
- PRX-24002
- Product Series:
- PD 250/E
- Manufacturer:
- Proxxon
- Length (MilliMeter):
- 560mm
- Frequency:
- 50/60Hz
- Voltage:
- 230V
- Height:
- 170mm
- Spindle Speed:
- 300/900/3000 RPM
- Noise Level:
- 70dB
- Width:
- 270mm
- Brand Origin (not manufacture):
- Germany
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
Machine Bed:
Of cast iron, wide-legged prismatic guide. For vibration-free work even at high loads. Rear flange for mounting the mill/drill head PF 230. Covered lead spindle.
Headstock:
Of die-cast aluminium. Precision bearing mounted main spindle (run-out without chuck 1/100mm) with 10.5mm opening. Chuck side 70mm hollowed to 14mm. With MK 2 bore. Rotary switch for engaging the automatic feed via lead and feed spindle (optionally 0.05 or 0.1mm/rev.).
Tailstock:
Of die-cast aluminium. Sleeve Ø 18mm, retractable up to 30mm. With millimetre scale, MK 1 bore and live centre.
Support:
Bed carriage made of die-cast zinc. Cross slide and top slide of steel (adjustment 60 or 45mm). Turning tool post for cutting tools size 8 x 8mm.
Drive:
Quiet DC special motor with 3-stage belt drive for 300 - 900 and 3,000rpm. With additional speed control (full-wave electronics) continuously adjustable to 100 - 300 or 1,000rpm, depending on belt ratio. Clockwise - anticlockwise rotation. Main switch with emergency stop function and restart protection.
Lathe Chuck:
High quality 3-jaw chuck as per DIN 8386 Class 1 (concentricity tolerance 0.04mm). Capacity through reversing jaws from 2 - 75mm. Including lathe chuck guard with safety shutdown.
Handwheels:
Of aluminium, with adjustable scale ring (1 division = 0.05mm, 1 revolution = 1mm).
Thread Cutting Device:
With change gears for left-hand and righthand threads of the most important metric pitches (0.5 - 0.625 - 0.7 - 0.75 - 0.8 - 1 - 1.25 - 1.5mm).
View AllClose
- For face, longitudinal and taper turning, thread-cutting
- For machining steel, brass, aluminium and plastic
- Mounting flange for fastening the mill/drill head PF 230
Item Name: |
Precision Lathe |
Model: |
PRX-24002 |
Product Series: |
PD 250/E |
Manufacturer: |
Proxxon |
Length (MilliMeter): |
560mm |
Frequency: |
50/60Hz |
Voltage: |
230V |
Height: |
170mm |
Spindle Speed: |
300/900/3000 RPM |
Noise Level: |
70dB |
Width: |
270mm |
Brand Origin (not manufacture): |
Germany |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
