ABB Enclosed Switch Disconnector, KSE225DP, 2P, 3.7 kW, 25A
(No reviews yet)
Write a Review
- Brand:
- Abb
- SKU:
- 937685223326
- Minimum Purchase:
- 1 unit
- Item Name:
- Switch Disconnector
- Model:
- KSE225DP
- Manufacturer:
- Abb
- Material:
- Aluminium
- Color:
- Grey
- Manufacture Part Number:
- 2CMA142411R1000
- Number of Poles:
- 2P
- Voltage:
- 230V
- Height (MilliMeter):
- 130mm
- Width (MilliMeter):
- 111mm
- Depth:
- 60mm
- Phase:
- Single
- Insulation Voltage:
- 690V
- Ingress Protection (IP Rating):
- IP65
- Current:
- 25A
- Handle Type:
- Side-operated
- Cross Section:
- 0.75-10 sq.mm
- Operational Voltage:
- 690V
- Power:
- 3.7 kW
- Brand Origin (not manufacture):
- Germany
- Standards:
- IEC 60947-1
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

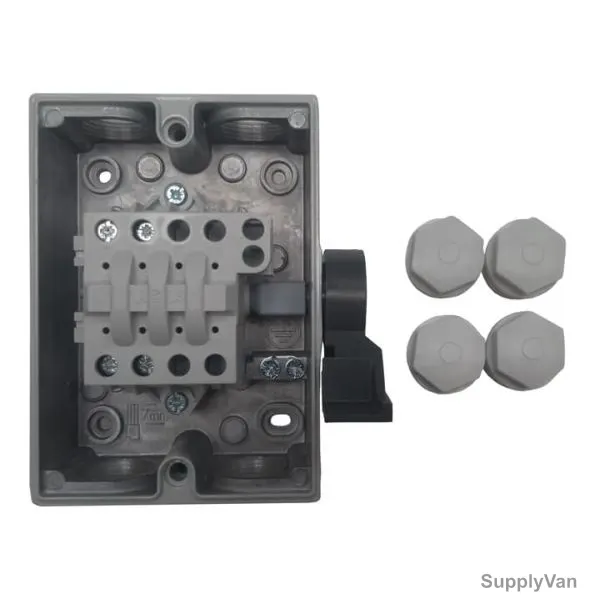

The enclosure of the ABB´s side controlled enclosed switches are made of rigid silumin. The paint is UV protected, and enclosure is protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have cable entries for 2 parallel cables, both from top and bottom. Membrane grommets are included (IP54). The handle is pad lockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a fixed neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
View AllClose
- Rated Impulse Withstand Voltage: 8 kV
- Neutral Type: No neutral terminal
- Screw Clamp: 0.75-10 sq.mm
- Cable Entry Position: Up/Down
- Cable Outlets Per Side: 2 x M25/2 x M25
- Impact Resistance Rating: IK09
- Maximum Mounted Auxiliary Contacts: 1 NO, 0 NC
Item Name: |
Switch Disconnector |
Model: |
KSE225DP |
Manufacturer: |
Abb |
Material: |
Aluminium |
Color: |
Grey |
Manufacture Part Number: |
2CMA142411R1000 |
Number of Poles: |
2P |
Voltage: |
230V |
Height (MilliMeter): |
130mm |
Width (MilliMeter): |
111mm |
Depth: |
60mm |
Phase: |
Single |
Insulation Voltage: |
690V |
Ingress Protection (IP Rating): |
IP65 |
Current: |
25A |
Handle Type: |
Side-operated |
Cross Section: |
0.75-10 sq.mm |
Operational Voltage: |
690V |
Power: |
3.7 kW |
Brand Origin (not manufacture): |
Germany |
Standards: |
IEC 60947-1 |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
