ABB Enclosed Switch Disconnector, KSE380TPN, 3P, 37 kW, 80A
(No reviews yet)
Write a Review
- Brand:
- Abb
- SKU:
- 376412327515
- Minimum Purchase:
- 1 unit
- Item Name:
- Switch Disconnector
- Model:
- KSE380TPN
- Manufacturer:
- Abb
- Material:
- Aluminium
- Color:
- Grey
- Handle Color:
- Black
- Manufacture Part Number:
- 2CMA144583R1000
- Number of Poles:
- 3P
- Voltage:
- 380-415V
- Height (MilliMeter):
- 230mm
- Width (MilliMeter):
- 160mm
- Depth:
- 118mm
- Short Circuit Current:
- 13 kA
- Insulation Voltage:
- 750V
- Current:
- 80A
- Handle Type:
- Round
- Cross Section:
- 1.5-35 sq.mm
- Operational Voltage:
- 750V
- Power:
- 37 kW
- Brand Origin (not manufacture):
- Germany
- Standards:
- IEC 60947-1
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

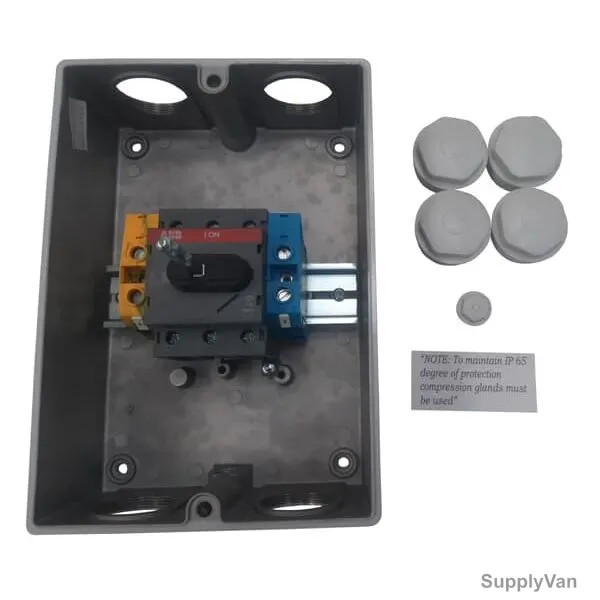

The dye casted aluminium alloy (silumin) enclosure is extremely rigid, and well suited for harsh environment. The surface is polyester coated and well protected from corrosion. Installation is made easy, thanks to the easy access to terminals, screwed cover and with the grommet type of glands included. The cover is interlocked, and handle pad lockable with two padlocks. The handle can also be padlocked in On position, by removing two small plastic bits. N and PE terminals included.
View AllClose
- Rated Short-Circuit Making Capacity: 2.1 kA
- Protection Type: Watertight
- Neutral Type: Fixed
- Cable Entry Position: Up/Down
- Cable Outlets Per Side: 2 x M40/2 x M40+M16
- Impact Resistance Rating: IK07
- Maximum Mounted Auxiliary Contacts: 2 NO, 2 NC
