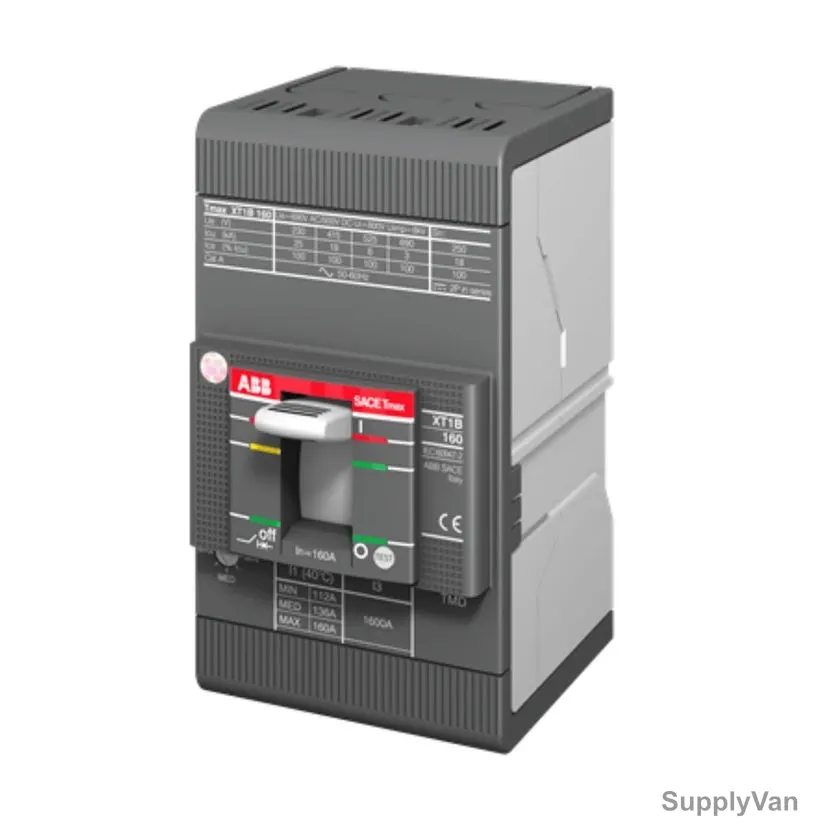

ABB Molded Case Circuit Breaker, XT1C-160-TMD-40-450-3p-F-F, 3P, 40A
(No reviews yet)
Write a Review
- Brand:
- Abb
- SKU:
- 475379549562
- Minimum Purchase:
- 1 unit
- Item Name:
- Molded Case Circuit Breaker
- Model:
- XT1C-160-TMD-40-450-3p-F-F
- Article Number:
- 1SDA067393R1
- Manufacturer:
- Abb
- Color:
- Grey
- Voltage:
- 690V
- Width (MilliMeter):
- 76.2mm
- Height (MilliMeter):
- 130mm
- Number of Poles:
- 3P
- Insulation Voltage:
- 800V
- Frequency:
- 50/60Hz
- Operational Voltage:
- 690VAC/500VDC
- Depth:
- 70mm
- Load Current (A):
- 40A
- Terminal Type:
- Fixed
- Brand Origin (not manufacture):
- Germany
- Standards:
- IEC
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The ABB Molded Case Circuit Breaker (XT1C-160-TMD-40-450-3p-F-F) is an electrical protection device used to prevent overloading or short-circuits in electrical systems. It is rated for 3 poles and has a current capacity of 40A. The breaker features a molded case design for durability and protection against environmental factors. It is suitable for use in a variety of industrial, commercial and residential applications and meets relevant safety standards.
View AllClose
- Electrical Durability: 120 cycles per hour; 8000 cycle
- Mechanical Durability: 240 cycles per hour; 25000 cycle
- Opening Time: CB with SOR - 15 ms; CB with UVR - 15 ms
- Power Loss: at Rated Operating Conditions per Pole 2.6W
- Rated Impulse Withstand Voltage: 8 kV
- Rated Instantaneous Short-Circuit Current Setting: 450A
Item Name: |
Molded Case Circuit Breaker |
Model: |
XT1C-160-TMD-40-450-3p-F-F |
Article Number: |
1SDA067393R1 |
Manufacturer: |
Abb |
Color: |
Grey |
Voltage: |
690V |
Width (MilliMeter): |
76.2mm |
Height (MilliMeter): |
130mm |
Number of Poles: |
3P |
Insulation Voltage: |
800V |
Frequency: |
50/60Hz |
Operational Voltage: |
690VAC/500VDC |
Depth: |
70mm |
Load Current (A): |
40A |
Terminal Type: |
Fixed |
Brand Origin (not manufacture): |
Germany |
Standards: |
IEC |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
