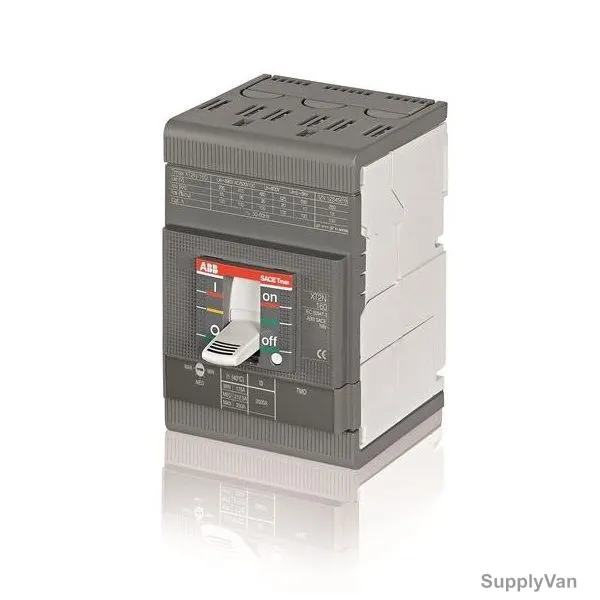

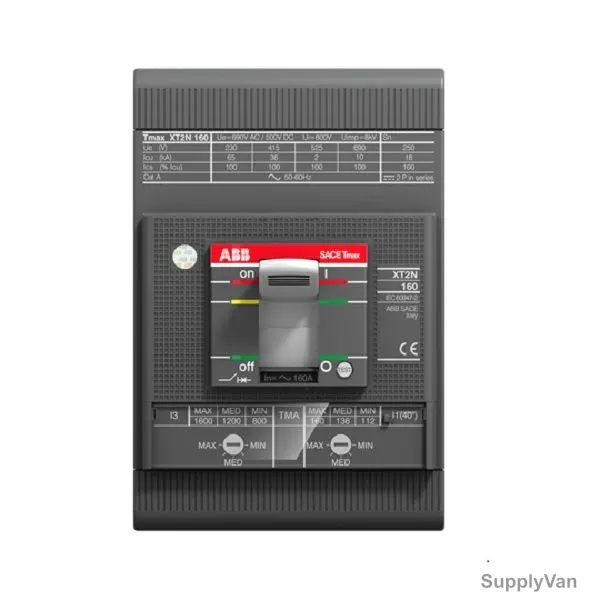

Abb Moulded Case Circuit Breaker, 1SDA067778R1, 80A, 3 Pole, 480-1120A
(No reviews yet)
Write a Review
- Brand:
- Abb
- SKU:
- 356435787254
- Minimum Purchase:
- 1 unit
- Item Name:
- Circuit Breaker
- Model:
- 1SDA067778R1
- Manufacturer:
- Abb
- Length:
- 82.5mm
- Short Circuit Current:
- 480-1120A
- Current Range:
- 80A
- Width:
- 90mm
- Height:
- 130mm
- Insulation Voltage:
- 1000V
- Frequency:
- 50/60Hz
- Operational Voltage:
- 500-690VDC
- Depth:
- 82.5mm
- Brand Origin (not manufacture):
- Switzerland
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
Additional InformationCircuit Breaker Type to be Associated: Motor Protection Electrical Durability: 120 Cycles per hour 8000 Cycle Power Loss: At Rated Operating Conditions per Pole 5.8W Product Main Type: SACE Tmax XT Rated Impulse Withstand Voltage (Uimp): 8 kV Rated Service Short-Circuit Breaking Capacity (Ics): (220 V AC) 100 kA, (220 V AC) 100 kA, (380 V AC) 70 kA, (415 V AC) 70 kA, (440 V AC) 65 kA, (500 V AC) 50 kA, (690 V AC) 15 kA Rated Ultimate Short-Circuit Breaking Capacity (Icu): (220 V AC) 100 kA, (230 V AC) 100 kA, (380 V AC) 70 kA, (415 V AC) 70 kA, (440 V AC) 65 kA, (500 V AC) 50 kA, (690 V AC) 15 kA, (250 V DC) 2 Poles in Series 70 kA, (500 V DC) 3 Poles in Series 70 kA Rated Uninterrupted Current (Iu): 160A Release Type: M Sub-type: XT2 Terminal Connection Type: Fixed Circuit-Breakers
View AllClose
Item Name: |
Circuit Breaker |
Model: |
1SDA067778R1 |
Manufacturer: |
Abb |
Length: |
82.5mm |
Short Circuit Current: |
480-1120A |
Current Range: |
80A |
Width: |
90mm |
Height: |
130mm |
Insulation Voltage: |
1000V |
Frequency: |
50/60Hz |
Operational Voltage: |
500-690VDC |
Depth: |
82.5mm |
Brand Origin (not manufacture): |
Switzerland |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
