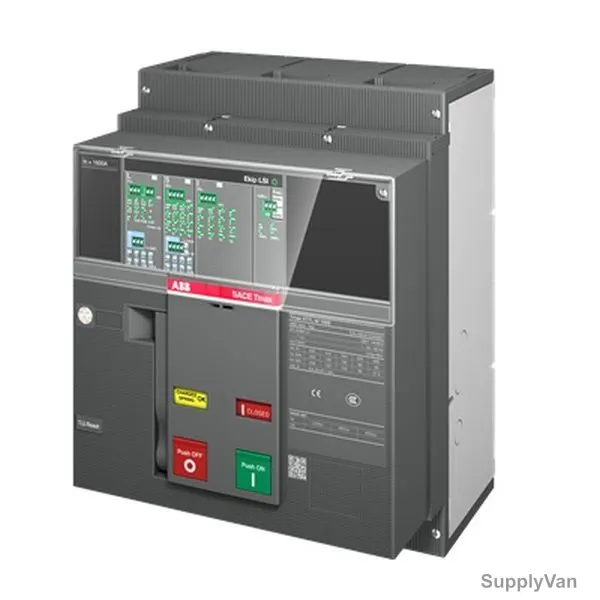

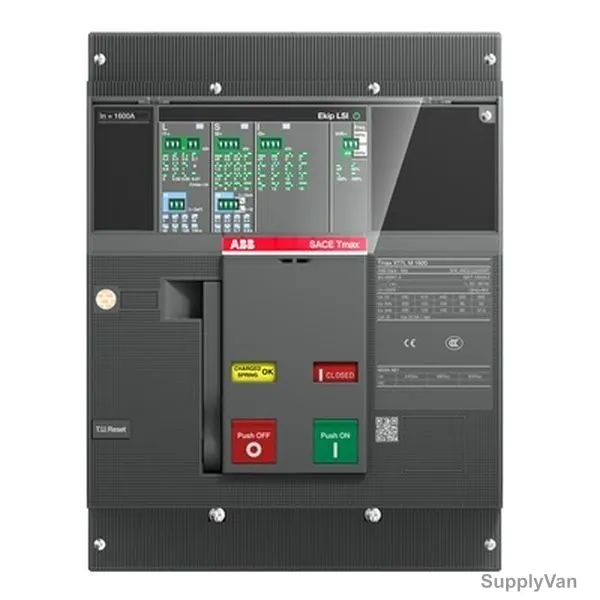

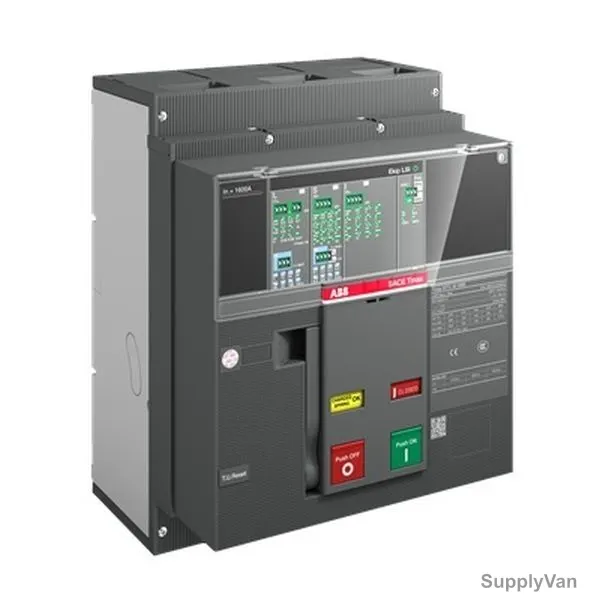

Abb Moulded Case Circuit Breaker, 1SDA101368R1, SACE Tmax XT, XT7M S, 3 Pole, 690VAC, 1250A, 20kA
(No reviews yet)
Write a Review
- Brand:
- Abb
- SKU:
- 478932218674
- Minimum Purchase:
- 1 unit
- Item Name:
- Moulded Case Circuit Breaker
- Model:
- 1SDA101368R1
- EAN Code:
- 8056221011860
- Manufacturer:
- Abb
- Length:
- 178mm
- Width:
- 210mm
- Voltage:
- 690VAC
- Number of Poles:
- 3
- Amps (A):
- 1250A
- Height:
- 268mm
- Delivery Time:
- 2-7 Days
- Packing Quantity:
- 1
- Unit:
- Piece
Description
The ABB SACE Tmax XT XT7M S MCCB (Model No. 1SDA101368R1) is a high-performance molded case circuit breaker designed for efficient power distribution and reliable protection in industrial and commercial applications. This 3-pole breaker features a compact and robust design with a rated current of 1250A and a rated operational voltage of up to 690VAC. It incorporates the advanced Ekip Dip LS/I electronic trip unit, providing adjustable long-time (L), short-time (S), and instantaneous (I) protection for enhanced coordination and system safety. Engineered to meet the rigorous demands of IEC 60947-2 standards, this MCCB offers a rated short-time withstand current of 20kA, ensuring dependable fault interruption while maintaining system integrity. The fixed version with front terminals and a spring-operated mechanism enhances ease of installation and operational reliability. Ideal for heavy-duty industrial power distribution, the XT7M S ensures excellent thermal performance and compact footprint, supporting modern panel designs.
View AllClose
- Power Loss: At rated operating conditions per pole 57W
- Rated impulse withstand voltage (Uimp): 8kV
- Rated short-time withstand current low voltage: 20kA
Item Name: |
Moulded Case Circuit Breaker |
Model: |
1SDA101368R1 |
EAN Code: |
8056221011860 |
Manufacturer: |
Abb |
Length: |
178mm |
Width: |
210mm |
Voltage: |
690VAC |
Number of Poles: |
3 |
Amps (A): |
1250A |
Height: |
268mm |
Delivery Time: |
2-7 Days |
Packing Quantity: |
1 |
Unit: |
Piece |
