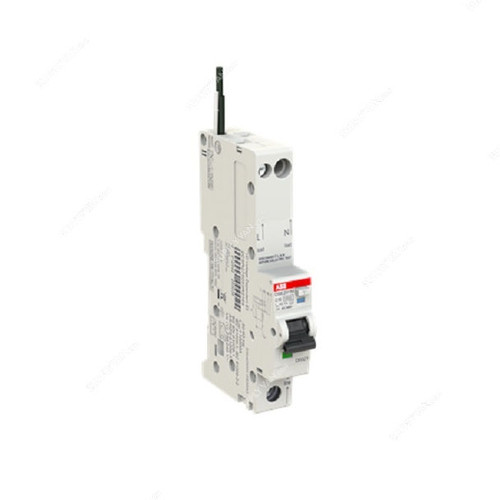

Abb Residual Current Circuit Breaker With Overcurrent Protection, DSE201-M-C16-A100-N-Black, Curve Type A, 1P+N, 100mA, 16A
(No reviews yet)
Write a Review
- Brand:
- Abb
- SKU:
- 621974273672
- Minimum Purchase:
- 1 unit
- Item Name:
- Residual Current Circuit Breaker
- Model:
- DSE201-M-C16-A100-N-Black
- Manufacturer:
- Abb
- Color:
- White
- Depth:
- 69mm
- Width:
- 18mm
- Height:
- 115mm
- Manufacture Part Number:
- 2CSR275153R2164
- Power Indicator:
- Blue Window
- Residual Current Type:
- A
- Residual Current:
- 100mA
- Amps (A):
- 16A
- Insulation Voltage:
- 500V
- Frequency:
- 50/60 Hz
- Operational Voltage:
- 264V
- Breaking Capacity:
- 10kA
- Voltage:
- 230-240V
- Terminal Type:
- Screw
- Number of Poles:
- 1P+N
- Storage Temperature:
- -40 to 70 Deg.C
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The ABB DSE201 M C16 A100 is a compact 1P+N RCBO designed to protect single-phase circuits against overload, short-circuit, and earth leakage faults. It combines the functionality of an MCB and RCCB into a single module, making it ideal for residential, commercial, and industrial distribution boards where space-saving and reliable protection are essential. This model features a C-curve 16A rating, 100mA residual current sensitivity, and 10kA breaking capacity, suitable for protecting circuits with moderate inrush currents such as lighting and socket outlets.
View AllClose
- Rated current: 16A
- Residual current sensitivity: 100mA
- Breaking capacity: 10kA
- 1P+N single module design
- Suitable for residential and commercial electrical panels
- Overvoltage Category: III
Item Name: |
Residual Current Circuit Breaker |
Model: |
DSE201-M-C16-A100-N-Black |
Manufacturer: |
Abb |
Color: |
White |
Depth: |
69mm |
Width: |
18mm |
Height: |
115mm |
Manufacture Part Number: |
2CSR275153R2164 |
Power Indicator: |
Blue Window |
Residual Current Type: |
A |
Residual Current: |
100mA |
Amps (A): |
16A |
Insulation Voltage: |
500V |
Frequency: |
50/60 Hz |
Operational Voltage: |
264V |
Breaking Capacity: |
10kA |
Voltage: |
230-240V |
Terminal Type: |
Screw |
Number of Poles: |
1P+N |
Storage Temperature: |
-40 to 70 Deg.C |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
