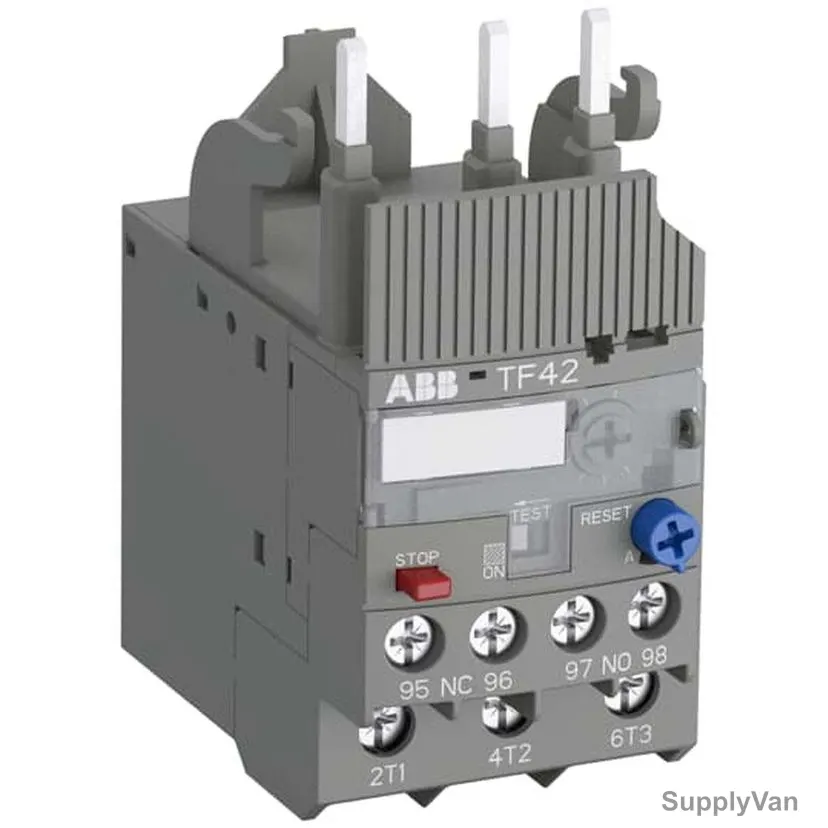

The Thermal Overload Relay is an economic electromechanical protection device for the main circuit. It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10. Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP function and a trip indication. The overload relays are connected directly to the block contactors.
- Number of auxiliary contacts NC: 1
- Number of auxiliary contacts NO: 1
- At Rated operating conditions per pole 1.1 - 2.0W
- Rated impulse withstand voltage: Auxiliary circuit 6kV - main circuit 6kV
