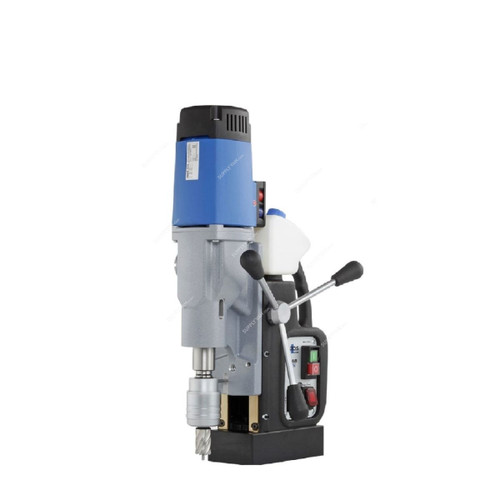

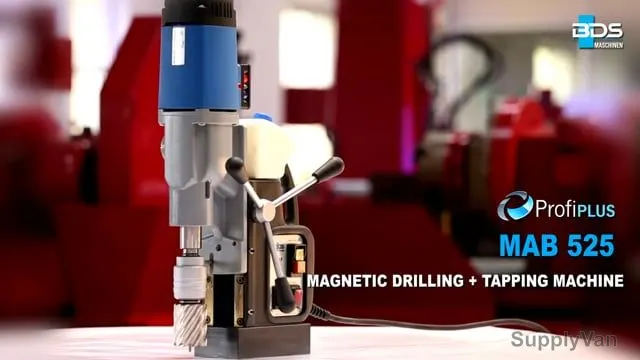

Bds Magnetic Drill Press, MAB525, 1600W, 50MM
- Brand:
- Bds
- SKU:
- 646468115158
- Minimum Purchase:
- 1 unit
- Item Name:
- Magnetic Drill Press
- Model:
- MAB525
- EAN Code:
- 4250187511042
- Manufacturer:
- Bds
- Voltage:
- 110-230VAC
- Countersink Diameter:
- 50mm
- Twist Drill Diameter:
- 20mm
- Magnetic Force:
- 13650 N
- Motor Power:
- 1600W
- RPM (no load):
- 580
- Drilling Capacity:
- 50mm
- Reaming Diameter:
- 20mm
- Max. Tapping:
- M20
- Corded/Cordless:
- Corded
- Drilling Depth:
- 160mm
- Spindle Taper:
- MT3
- Number of Gears:
- 2
- Cutting Depth:
- 75mm
- Brand Origin (not manufacture):
- Germany
- Product Size L x B x H (Cms):
- Magnet: 9 x 18 x 4.8cm
- Delivery Time:
- 2-7 Days
- Packing Quantity:
- 1
- Unit:
- Set
Description

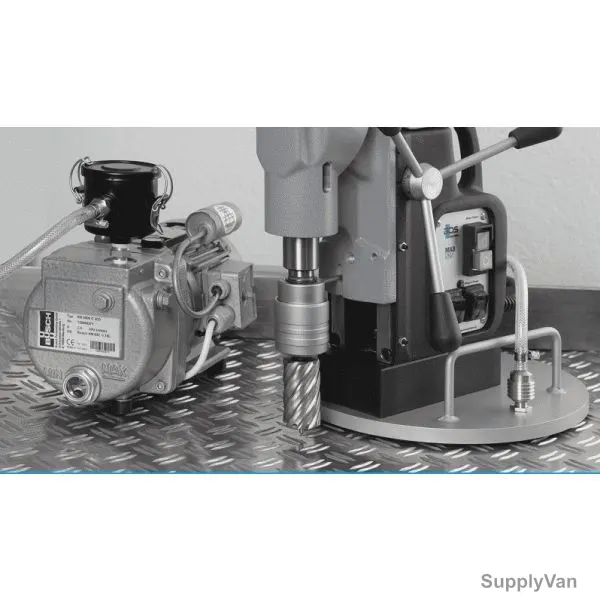

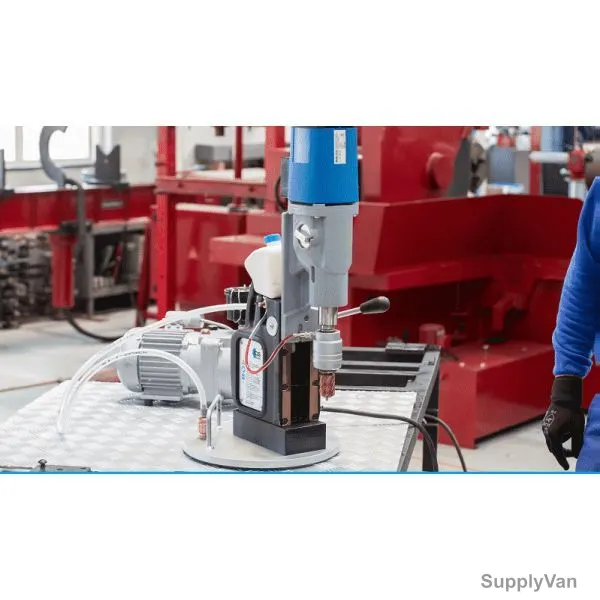

The BDS Magnetic Drill Press MAB525 is a powerful and versatile drilling solution designed for professional metalworking and industrial applications. Equipped with a robust 1600W motor, this machine delivers high performance for heavy-duty drilling operations, making it suitable for workshops, construction sites, fabrication plants, and maintenance tasks. With a maximum drilling capacity of 50mm in diameter and a cutting depth of up to 75mm (depending on cutter type), the MAB525 ensures precision and efficiency when working with steel and other tough materials. Its strong electromagnetic base provides secure clamping to steel surfaces, ensuring operator safety and accuracy during vertical, horizontal, and overhead drilling applications. The drill press features variable speed control, allowing users to match speed to the material and application, which extends tool life and enhances cutting performance. It also includes a reversible function, making it suitable not only for drilling but also for tapping (thread cutting). Ergonomic handles, a sturdy construction, and an integrated cooling/lubrication system make it user-friendly and reliable for continuous use.
Items Included:
1x Magnetic Core Drilling Machine, 1x Quick Change Drill Chuck System Keyless, 19mm Weldon (3/4 Inch), 1x Tapping Adapter ZGA 010 + ZGA 012 + ZGA 016, 1x Hard Protective Case, 1x Ejector Pin Zak 075 + 090, 1x Safety Chain, 1x Drill Drift MT 3, 1x Taper Drift MT 3/B16, 1x Gear Rim Drill Chuck 1-13mm, 1x Operating Manual
View AllClose
- Robust two-speed gearbox
- Permanent internal lubrication
- Intelligent magnet indicator And the safe arrangement of switches
- Brilliant speed and torque controls
- A morse taper MT 3 machine
- Sleek integrated cooling tank
- Unique carbon brush indicator
- Complete internal cabling for safety
- Next-generation oil bath gearbox
- Durable dovetail slide system
- Full-wave controls electronics for constant watt even while drilling
- Motor Overheat protection to avoid tool breakage
- Robust, lightweight and versatile
- Magnetic drilling plus tapping machine
Items Included:
1x Magnetic Core Drilling Machine, 1x Quick Change Drill Chuck System Keyless, 19mm Weldon (3/4 Inch), 1x Tapping Adapter ZGA 010 + ZGA 012 + ZGA 016, 1x Hard Protective Case, 1x Ejector Pin Zak 075 + 090, 1x Safety Chain, 1x Drill Drift MT 3, 1x Taper Drift MT 3/B16, 1x Gear Rim Drill Chuck 1-13mm, 1x Operating Manual
Item Name: |
Magnetic Drill Press |
Model: |
MAB525 |
EAN Code: |
4250187511042 |
Manufacturer: |
Bds |
Voltage: |
110-230VAC |
Countersink Diameter: |
50mm |
Twist Drill Diameter: |
20mm |
Magnetic Force: |
13650 N |
Motor Power: |
1600W |
RPM (no load): |
580 |
Drilling Capacity: |
50mm |
Reaming Diameter: |
20mm |
Max. Tapping: |
M20 |
Corded/Cordless: |
Corded |
Drilling Depth: |
160mm |
Spindle Taper: |
MT3 |
Number of Gears: |
2 |
Cutting Depth: |
75mm |
Brand Origin (not manufacture): |
Germany |
Product Size L x B x H (Cms): |
Magnet: 9 x 18 x 4.8cm |
Delivery Time: |
2-7 Days |
Packing Quantity: |
1 |
Unit: |
Set |
