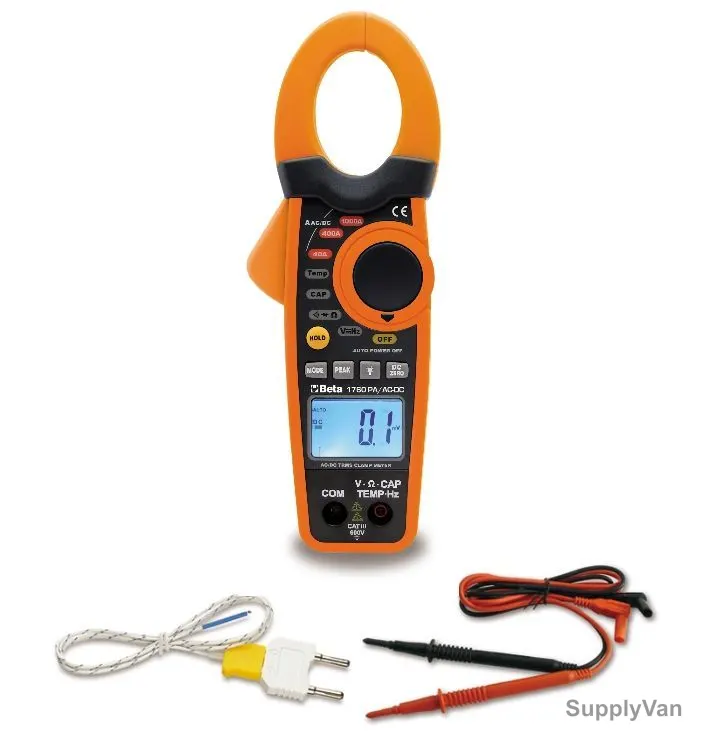

Beta True RMS AC/DC Clamp Meter, 1760PA/AC-DC

(No reviews yet) Write a Review
Brand:
Beta
SKU:
296132191181
Minimum Purchase:
1 unit
Item Name:
Clamp Meter
Model:
1760PA/AC-DC
Manufacturer:
Beta
Measuring Voltage Range - DC:
0.1mV/ 600V
Measuring Voltage Range - AC:
0.1mV/ 600V
Measuring Current Range - DC:
0.01A/ 1000A
Measuring Current Range - AC:
0.01A/ 1000A
Measuring Capacitance Range:
0.001nF/ 40mF
Measuring Resistance Range:
0.1 Ohm/ 40 M Ohm
Measuring Frequency Range:
0.001kHz/ 4kHz
Storage Temperature (Degree Celsius):
-30 to 60 Deg. C
Operating Ambient Temperature (Degree Celsius):
-10 to 50 Deg. C
Capacity:
Clamp Size: 30mm Opening approx.
Display Type:
LCD
Display Resolution:
4000 (Display Count)
Auto Power Shut-Off Option:
20 mniutes approx.
Standards:
IEC61010 CAT III 600V/ CAT II 1000V
Product Size L x B x H (Cms):
22.9L x 8B x 4.9H
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
AED1,065.00

Available on Request

Description

Beta True RMS AC/DC Clamp Meter 1760PA/AC-DC is the Amperometric Clamp and Digital Multimeter that has Integrated multimeter function and allows DC and AC measurements up to 1000 A.
  • True RMS measurement of AC Current and AC Voltage.
  • Large 4000 count LCD display with a bargraph and a bright white LED backlight.
  • Wide measuring range from 0.01A AC/DC up to1000A AC/DC.
  • Measures AC and DC Voltage up to 600 volts.
  • Measures resistance from 0.01 Ohm up to 40M Ohm.
  • Capacitance measurements up to 40mF.
  • Temperature measurement from -40Deg. C to +1000Deg. C and -40Deg. Fahrenheit to +1832Deg. Fahrenheit.
  • Designed to the international safety standard IEC61010 CAT III 600V / CAT II 1000V, Pollution degree 2.
  • Auto Power Off after approximately 20 minutes to conserve battery life.
  • Continuity Buzzer and Diode Test.
  • Frequency measurement up to 4kHz.
  • Peak Hold to record the minimum and maximum readings for current and voltage.
  • Data Hold switch used to freeze reading on display.

      • Item Name:
      Clamp Meter
      Model:
      1760PA/AC-DC
      Manufacturer:
      Beta
      Measuring Voltage Range - DC:
      0.1mV/ 600V
      Measuring Voltage Range - AC:
      0.1mV/ 600V
      Measuring Current Range - DC:
      0.01A/ 1000A
      Measuring Current Range - AC:
      0.01A/ 1000A
      Measuring Capacitance Range:
      0.001nF/ 40mF
      Measuring Resistance Range:
      0.1 Ohm/ 40 M Ohm
      Measuring Frequency Range:
      0.001kHz/ 4kHz
      Storage Temperature (Degree Celsius):
      -30 to 60 Deg. C
      Operating Ambient Temperature (Degree Celsius):
      -10 to 50 Deg. C
      Capacity:
      Clamp Size: 30mm Opening approx.
      Display Type:
      LCD
      Display Resolution:
      4000 (Display Count)
      Auto Power Shut-Off Option:
      20 mniutes approx.
      Standards:
      IEC61010 CAT III 600V/ CAT II 1000V
      Product Size L x B x H (Cms):
      22.9L x 8B x 4.9H
      Delivery Time:
      2-7 Days
      Unit:
      Piece
