Cablegrip Cable Gland, CW-63L, Brass, M63 x 1.5 Inch
(No reviews yet)
Write a Review
- Brand:
- Cablegrip
- SKU:
- 731992834199
- Minimum Purchase:
- 1 unit
- Item Name:
- Cable Gland
- Model:
- CW-63L
- Manufacturer:
- Cablegrip
- Material:
- Brass
- Material Grade:
- 2874, CZ121
- Color:
- Gold
- Finish:
- Brass and Nickel Plated
- Thread Type:
- M63
- Seal Material:
- TPE
- Cable Size:
- 55.9-65.3mm
- Cable Type:
- Steel Wire Armour
- Wire Diameter:
- 2.5mm
- Thread Size:
- 1.5 Inch
- Thread Length:
- 15mm
- Ingress Protection (IP Rating):
- IP66 EN 60529 : 2001
- Application:
- Brass Indoor & Outdoor cable gland for use with all type Single Wire Armoured (SWA) cable. Providing environmental seal in the cable outer sheath. The gland also provides mechanical cable retention and electrical continuity via armour
- Brand Origin (not manufacture):
- India
- Standards:
- BS 6121 : Part 1 : BS EN 50262
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

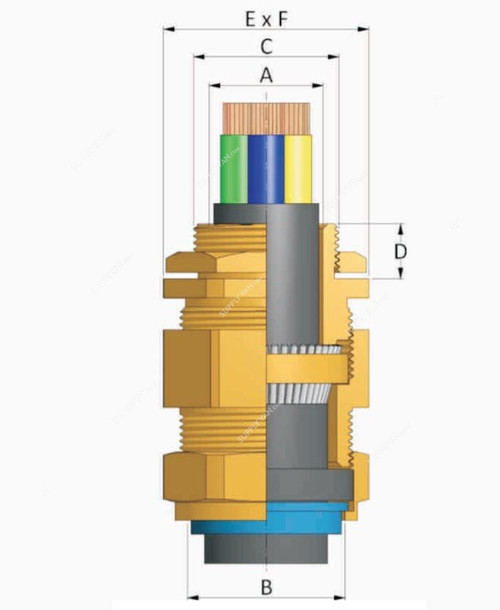

- Gland DImension - Dia 'A': 56mm, Dia 'B': 67mm, Across Flat 'E' Max.: 79mm, Across Corner 'F' Max.: 87.5mm
Item Name: |
Cable Gland |
Model: |
CW-63L |
Manufacturer: |
Cablegrip |
Material: |
Brass |
Material Grade: |
2874, CZ121 |
Color: |
Gold |
Finish: |
Brass and Nickel Plated |
Thread Type: |
M63 |
Seal Material: |
TPE |
Cable Size: |
55.9-65.3mm |
Cable Type: |
Steel Wire Armour |
Wire Diameter: |
2.5mm |
Thread Size: |
1.5 Inch |
Thread Length: |
15mm |
Ingress Protection (IP Rating): |
IP66 EN 60529 : 2001 |
Application: |
Brass Indoor & Outdoor cable gland for use with all type Single Wire Armoured (SWA) cable. Providing environmental seal in the cable outer sheath. The gland also provides mechanical cable retention and electrical continuity via armour |
Brand Origin (not manufacture): |
India |
Standards: |
BS 6121 : Part 1 : BS EN 50262 |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
