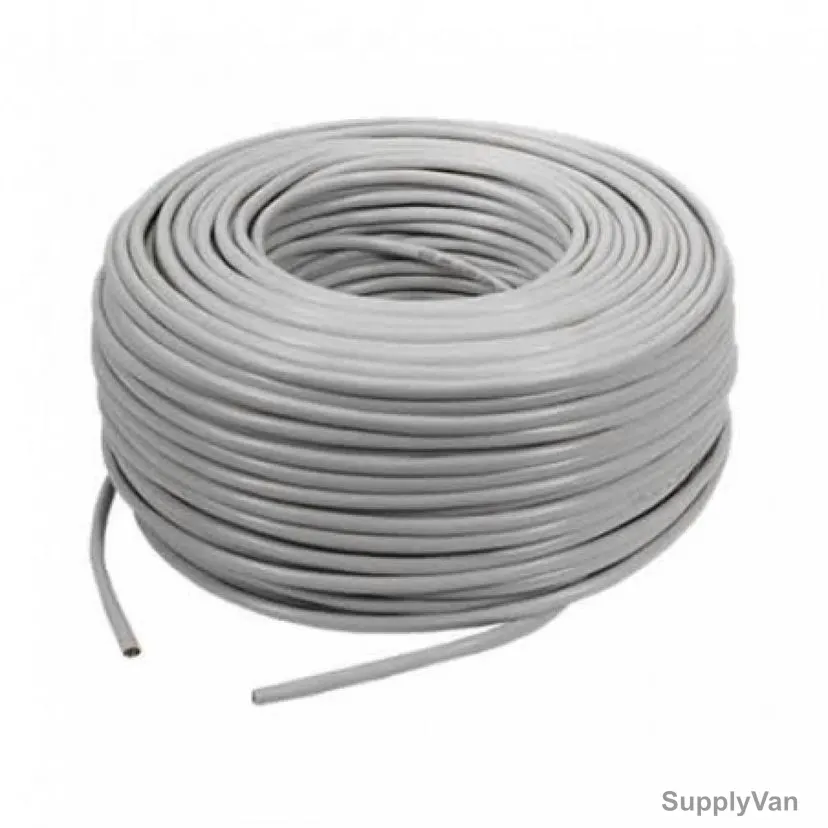

D-Link UTP Cable, NCB-C6UGRYR-305-24, CAT 6, 305 Mtrs, Grey
(No reviews yet)
Write a Review
- Brand:
- D-Link
- SKU:
- 975427142629
- Minimum Purchase:
- 1 unit
- Item Name:
- UTP Cable
- Model:
- NCB-C6UGRYR-305-24
- Manufacturer:
- D-Link
- Color:
- Grey
- Category Data Cable:
- CAT 6
- Connector Type:
- RJ45
- Cable Length:
- 305 Mtrs
- Cable Material:
- PVC
- Cable Type:
- UTP Braided
- Cable Diameter:
- 6.1mm
- Conductor Material:
- Solid Bare Copper
- Conductor Size:
- 0.52mm
- Conductor Type:
- 24 AWG
- Insulation Material:
- HDPE
- Impedance:
- 100 +/- 15 Ohm
- Storage Temperature:
- 0 to 50 Deg.C
- For Use With:
- Router, Personal Computer
- Brand Origin (not manufacture):
- Taiwan
- Certification:
- UL Listed
- Delivery Time:
- 2-7 Days
- Unit:
- Roll
Description
- Comply with Cat6 specifications
- Pairs are braided in aluminum foil with drain wire
- HDPE insulation
- 4-pair unshielded twisted pair (UTP) cable
- 24 AWG solid copper conductor for superior conductivity
- FR PVC Jacket
- Conductor Resistance:
- Mutual Capacitance: < 5.6 nF/100 mtrs
- Resistance Unbalance: 5% Max
- Capacitance Unbalance: 330pF/100 mtrs
- Delay Skew: <45nS
