Denzel Compact Inverter Arc Welding Machine, DS-200, 6600W, 200A, 1.6 to 5MM Electrode Dia

(No reviews yet) Write a Review
Brand:
Denzel
SKU:
474369715618
Minimum Purchase:
1 unit
Item Name:
Inverter Arc Welding Machine
Model:
DS-200
Manufacturer:
Denzel
Color:
Yellow and Black
Wattage:
6600W
Voltage:
230V
Electrode Diameter:
1.6 to 5mm
Current:
200A
Open Circuit Voltage:
50V
Frequency:
50Hz
Ingress Protection (IP Rating):
IP21
Operational Voltage:
150-250V
Packing Type:
Cardboard Box
Brand Origin (not manufacture):
United States
Warranty (Subject to Conditions):
3 Years
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
  • Denzel Compact Inverter Arc Welding Machine, DS-200, 6600W, 200A, 1.6 to 5MM Electrode Dia
  • Denzel Compact Inverter Arc Welding Machine, DS-200, 6600W, 200A, 1.6 to 5MM Electrode Dia
  • Denzel Compact Inverter Arc Welding Machine, DS-200, 6600W, 200A, 1.6 to 5MM Electrode Dia
  • Denzel Compact Inverter Arc Welding Machine, DS-200, 6600W, 200A, 1.6 to 5MM Electrode Dia
  • Denzel Compact Inverter Arc Welding Machine, DS-200, 6600W, 200A, 1.6 to 5MM Electrode Dia
  • Denzel Compact Inverter Arc Welding Machine, DS-200, 6600W, 200A, 1.6 to 5MM Electrode Dia
  • Denzel Compact Inverter Arc Welding Machine, DS-200, 6600W, 200A, 1.6 to 5MM Electrode Dia
AED522.00

Description

The Denzel DS-200 Compact inverter arc welding machine with a maximum current of 200A has an on-time of 70% and works with electrodes with a diameter of 1.6-5 mm. It is used for welding steel structures, it will be useful in a workshop, garage or country house. If there is no outlet, it can be connected to the generator. The device is easy to use and suitable for both professionals and beginners. Able to work even at low input voltage of 150V, has a high duty cycle of 70% and cools down quickly, which increases welding speed and efficiency.

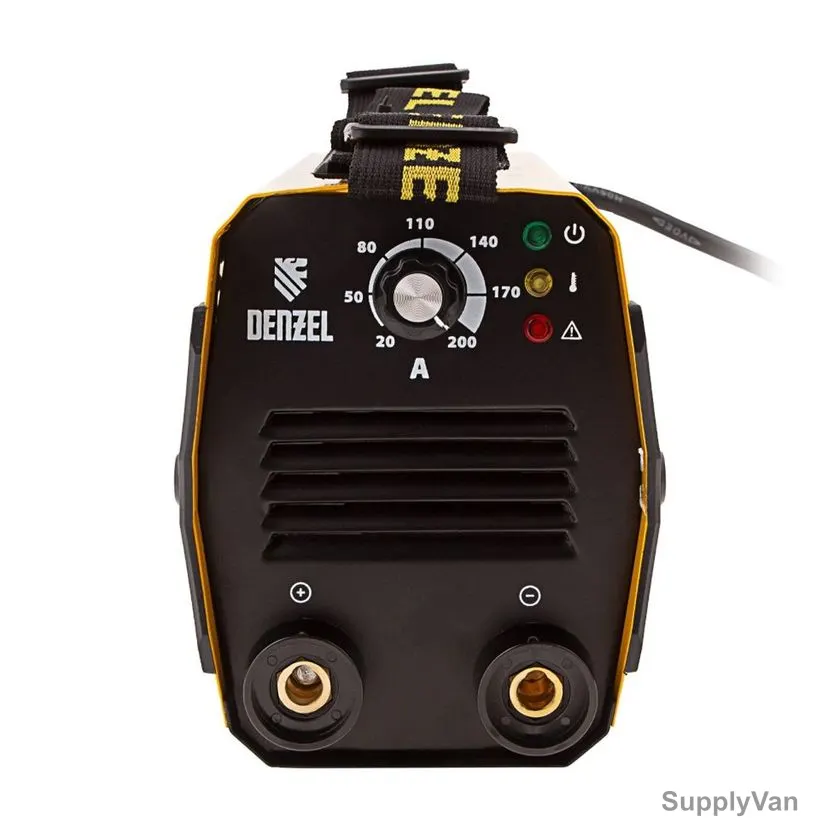

  • Smooth and Precise Adjustment: Using the rotary control, you can change the amount of welding current to work with electrodes of different diameters
  • Quick Start: Light ignition (Hot Start) helps to strike the arc and increases the stability of its burning
  • High Quality Welding: Arc force (Arc Force) prevents it from breaking during operation
  • Electrode Anti-Sticking: The Anti Stick function makes it easy to separate the electrode from the metal without damaging the coating
  • Protection of Power Components (IGBT Shield): The device automatically turns off in case of overload or short circuit, preventing damage to the board elements
  • Reliability: The board is varnished to protect it from dust, and the insulating plate eliminates the possibility of a breakdown between the heat sink and the case
  • Resistance to External Influences: The device has a degree of protection IP21 and is not afraid of the penetration of drops of water and small objects

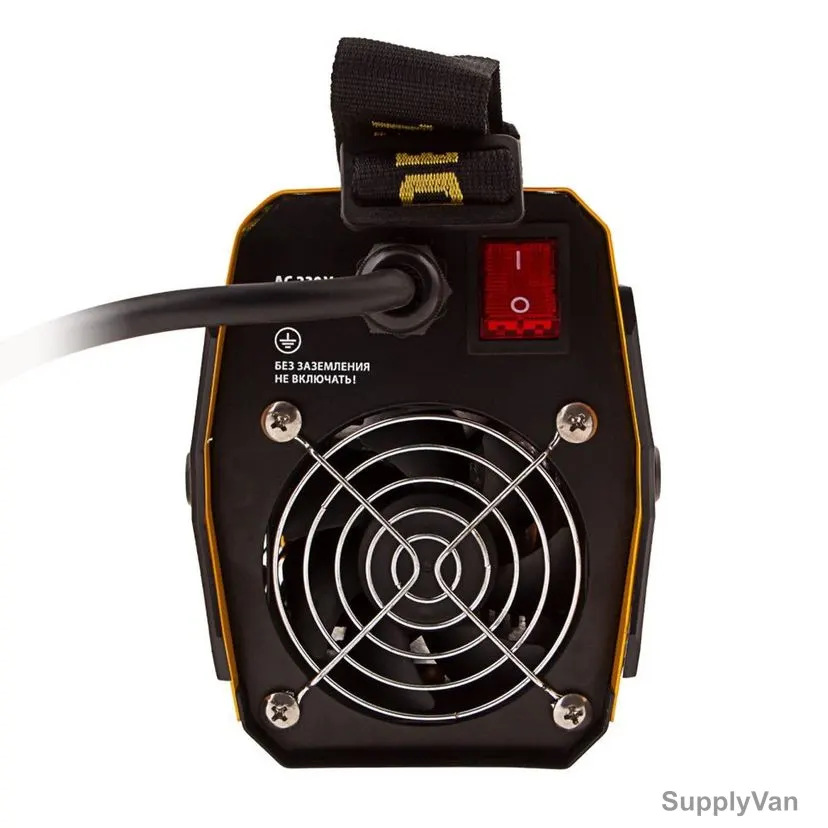

  • Improved Cooling: The guide plate provides effective ventilation, which contributes to the stable operation of the machine
  • High-Quality Power Cable: A soft power cord 1.5 m long with PVC insulation does not tan in the cold
  • Comfortable Work: The product weighs only 3.4 kg and is equipped with a shoulder strap, so it is convenient to move it
  • Cable Length with Ground Terminal: 1.2 Mtrs
  • Cable Length with Electrode Holder: 1.8 Mtrs
  • Switching time at maximum current: 70%

Items Included:

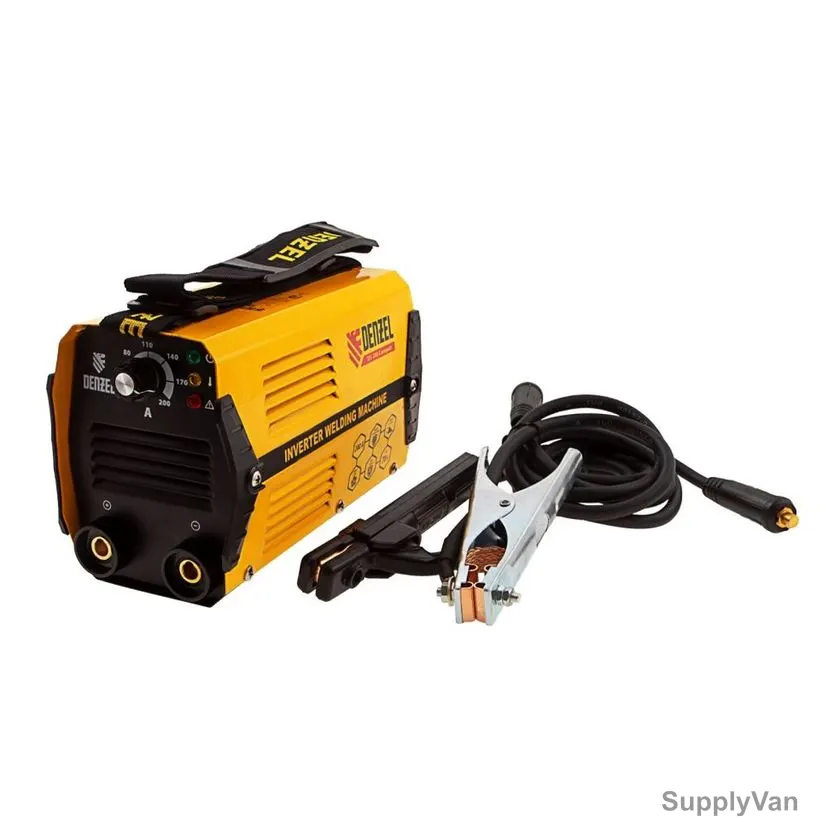

1x Welding Machine, 1x Welding Cable with Earth Clamp, 1x Welding Cable with Electrode Holder, 1x Carrying Strap, 1x Instruction
Item Name:
Inverter Arc Welding Machine
Model:
DS-200
Manufacturer:
Denzel
Color:
Yellow and Black
Wattage:
6600W
Voltage:
230V
Electrode Diameter:
1.6 to 5mm
Current:
200A
Open Circuit Voltage:
50V
Frequency:
50Hz
Ingress Protection (IP Rating):
IP21
Operational Voltage:
150-250V
Packing Type:
Cardboard Box
Brand Origin (not manufacture):
United States
Warranty (Subject to Conditions):
3 Years
Delivery Time:
2-7 Days
Unit:
Piece
