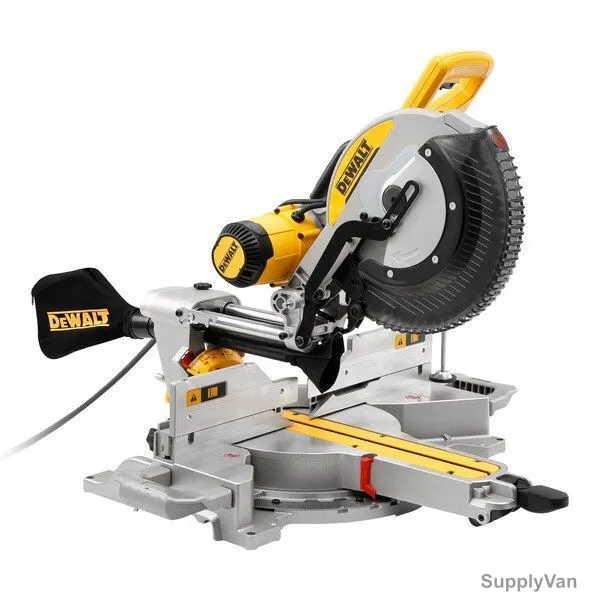

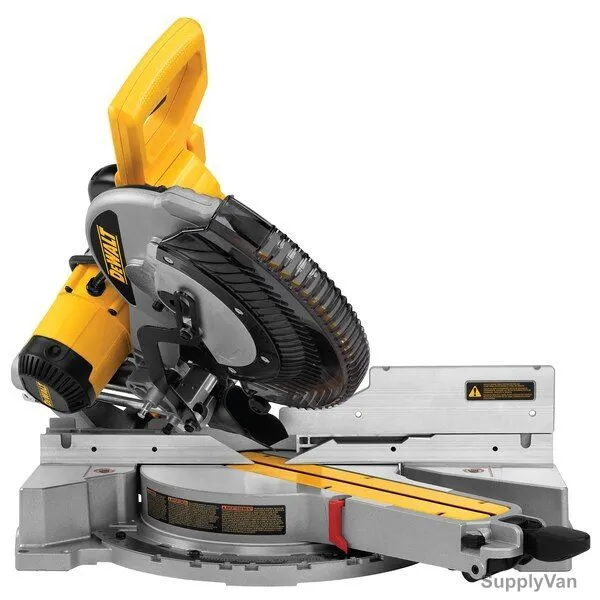

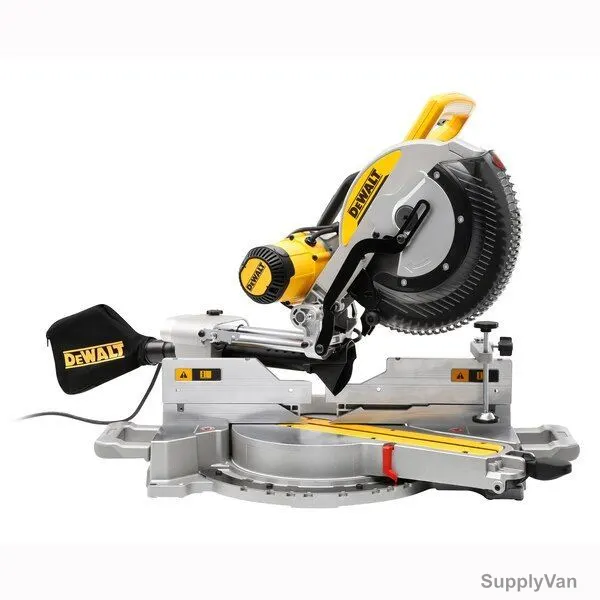

Dewalt Mitre Saw, DWS780-LX, 1675W, 110V, 305MM
(No reviews yet)
Write a Review
- Brand:
- Dewalt
- SKU:
- 136959244178
- Minimum Purchase:
- 1 unit
- Item Name:
- Mitre Saw
- Model:
- DWS780-LX
- Manufacturer:
- Dewalt
- Color:
- Multicolor
- Maximum Cutting Depth:
- 170mm
- Mitre Capacity:
- 60/50 Deg
- Bore Size:
- 30mm
- Blade Speed:
- 1900-3800 rpm
- Length:
- 770mm
- Depth:
- 470mm
- Height:
- 396mm
- Output Power (Watts):
- 960W
- Blade Diameter:
- 305mm
- Bevel Capacity:
- 49/49 Deg
- Cutting Capacity at 90 Degree:
- 303 x 110mm
- Cutting Capacity at 45 Degree:
- 212 x 76mm
- Input Power (Watts):
- 1675W
- Voltage:
- 110V
- Sound Pressure Level:
- 93 dB(A)
- Sound Power Level:
- 100 dB(A)
- Sound Pressure Uncertainty:
- 3 dB(A)
- Sound Power Level Uncertainty:
- 3 dB(A)
- Power Source Type:
- Corded
- Vibration Cutting Wooden Beam:
- <2.5 sq.m/s
- Vibration Uncertainty In Wood:
- 1.5 sq.m/s
- Brand Origin (not manufacture):
- United States
- Warranty (Subject to Conditions):
- 3 Years
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
- Easy to use mitre and bevel controls making the tool fast and simple to change from one set up to another
- Long life Accuracy in Table and Fence Design
- Electronic speed control for adjusting cutting speed when cutting materials other than wood
- XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
- Outstanding dust control and deflection away from cutting area
- The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles
- New quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49° left and right
- Outstanding cutting performance in both small profiles and large construction timbers up to 110 x 303 mm
- Heavy duty durability with the ability to fully adjust your machine to maintain accuracy over the life of the tool.
- Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° - 50° left and 0° - 60° right
- Compact and lightweight design characteristics deliver a saw with enormous capacity which is easy to transport around the jobsite
- The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications
- Linear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 345 mm wide
Items Included:
1x Mitre Saw, 1x High quality 60 tooth blade, 1x Material clamp, 1x Dust bag, 1x Blade spanner
