Dorfit X Ray Mortise Lock, DTML027, Stainless Steel, Satin
(No reviews yet)
Write a Review
- Brand:
- Dorfit
- SKU:
- 936191921185
- Minimum Purchase:
- 1 unit
- Item Name:
- X Ray Mortise Lock
- Model:
- DTML027
- Manufacturer:
- Dorfit
- Material:
- Stainless Steel
- Material Grade:
- SS304
- Finish:
- Satin
- Color:
- Silver
- Backset Size:
- 40, 80mm
- Dimensions:
- 23.5 x 11.2 x 2.4cm
- Application:
- X-Ray Door of Hospital Application Ultrasonic Test Room Doors
- Brand Origin (not manufacture):
- China
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The Dorfit X Ray Mortise Lock, DTML027 is a specialized high-performance mortise lock engineered for demanding architectural and healthcare applications where both security and durability are paramount. Designed specifically for environments such as hospital X-ray rooms, ultrasound test chambers, and medical imaging areas, this mortise lock delivers reliable performance while adhering to strict standards of long-term mechanical stability and corrosion resistance. Constructed from premium SUS 304 stainless steel components, the lock body, latchbolt, deadbolt, and follower are all engineered to withstand frequent use and resist degradation from moisture, humidity, and environmental exposure. The satin finish enhances the lock’s aesthetic appeal with a refined matte metallic surface that resists fingerprints, smudges, and superficial wear – an important benefit in clinical and high-traffic settings where both cleanliness and appearance matter. The DTML027 offers versatile backset options (commonly 40mm or 80mm) to fit a variety of door configurations, making it adaptable to both narrow and wider door frames. Installation normally involves mortising the lock body into the door edge so that it sits flush with the door surface, giving a clean, integrated appearance while providing firm, stable operation. A coordinating stainless steel strike plate and screws for both wood and metal doors are included, ensuring a complete and secure installation. In addition to its material strength, the lock’s internal mechanism is designed for smooth and reliable latch and deadbolt operation. When the door is closed and locked, the latch retraction and deadbolt engagement occur fluidly, offering dependable security with minimal effort. Many implementations are designed to be reversible for either left-hand or right-hand door orientations, further enhancing installation flexibility.
View AllClose

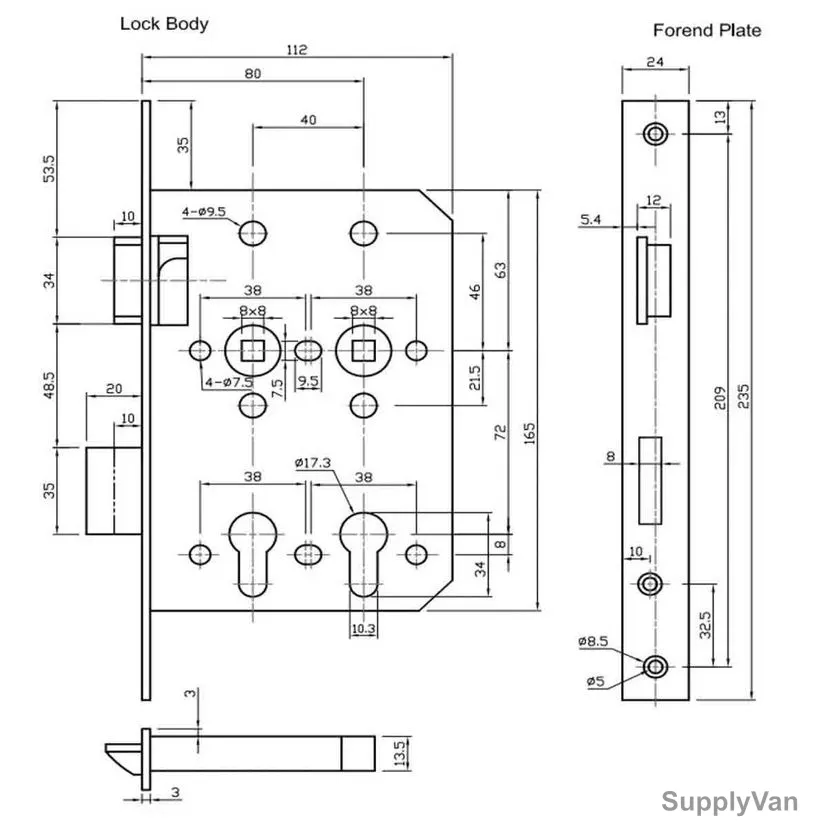

- Forend Size: Square Corner, 235(L) x 24(W) x 3(T)mm

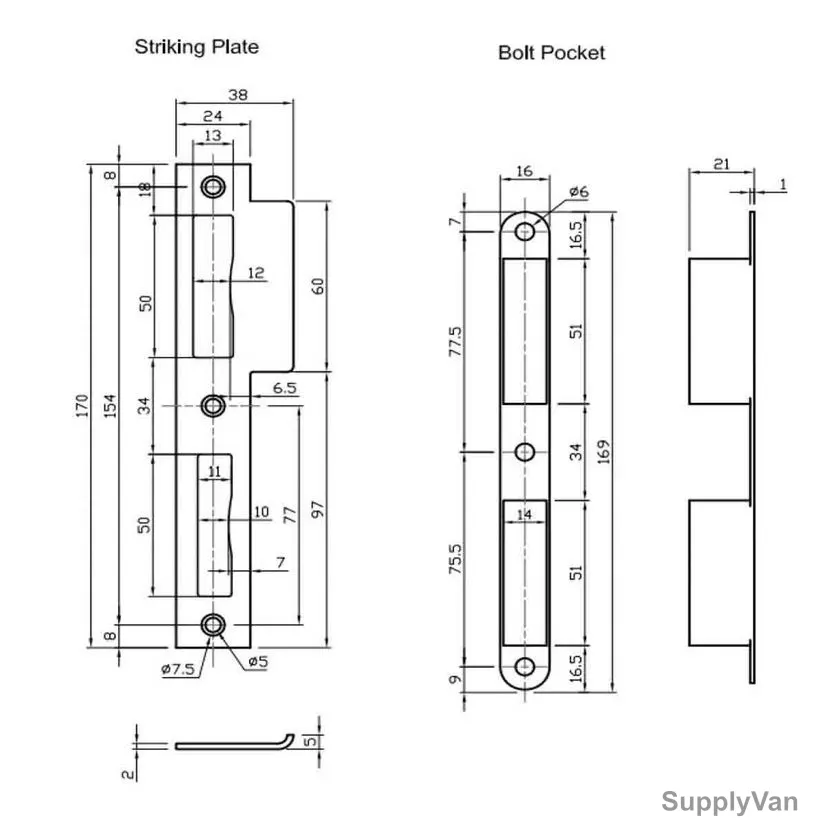

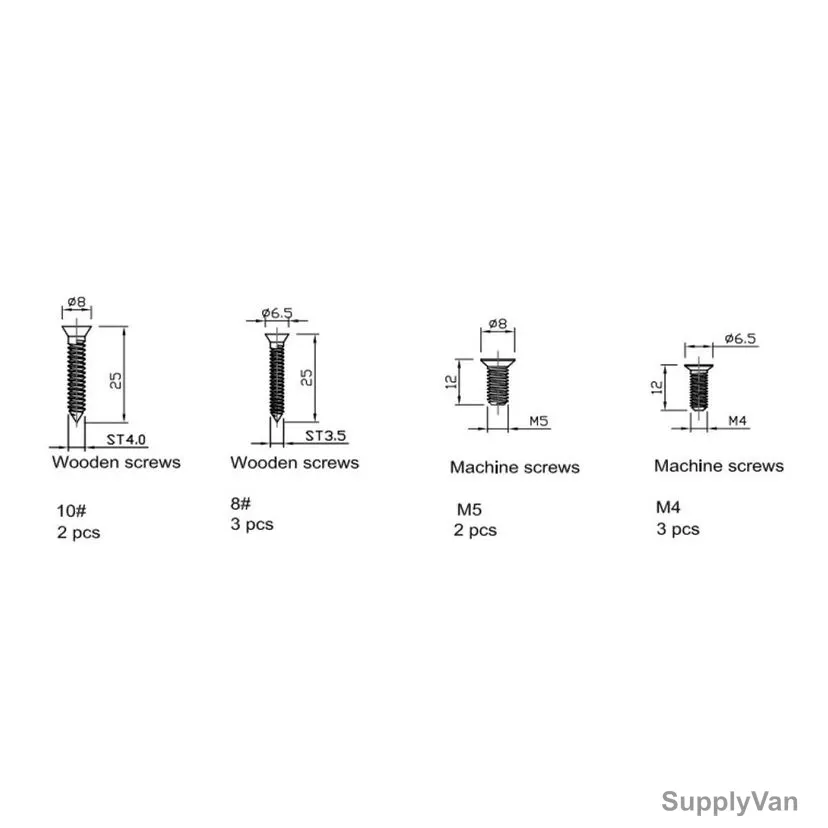

- Fittings: SS304 Strike Plate, Plastic Strike Box, Screws for Wood and Metal Door
- Handed: Din Left or Din Right
Item Name: |
X Ray Mortise Lock |
Model: |
DTML027 |
Manufacturer: |
Dorfit |
Material: |
Stainless Steel |
Material Grade: |
SS304 |
Finish: |
Satin |
Color: |
Silver |
Backset Size: |
40, 80mm |
Dimensions: |
23.5 x 11.2 x 2.4cm |
Application: |
X-Ray Door of Hospital Application Ultrasonic Test Room Doors |
Brand Origin (not manufacture): |
China |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
