Earthing and Short Circuiting Kit, MT-BM-50-5, 5 Mtrs, 50 sq.mm, 3 Pcs/Kit
(No reviews yet)
Write a Review
- Brand:
- Generic
- SKU:
- 427688223437
- Minimum Purchase:
- 1 unit
- Item Name:
- Earthing and Short Circuiting Kit
- Model:
- MT-BM-50-5
- Manufacturer:
- Generic
- Color:
- Multicolor
- Test:
- 13.77 kA/1 sec.
- Cable Length:
- 5 Mtrs
- Brand Origin (not manufacture):
- Italy
- Standards:
- EN 61235
- Delivery Time:
- 2-7 Days
- Unit:
- Kit

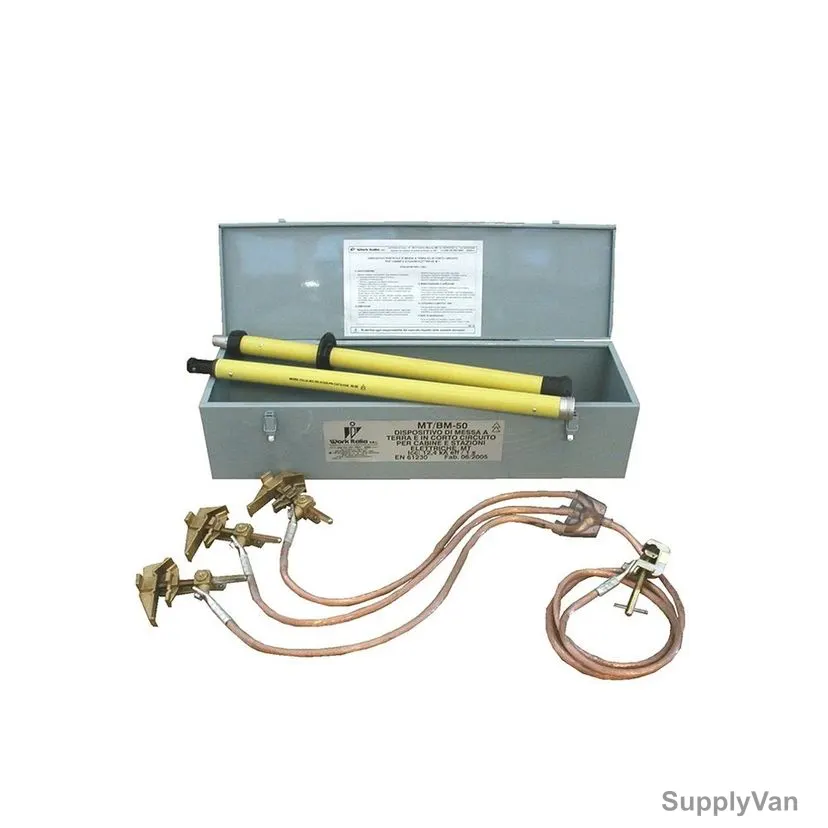

Description
- n°3 Screw type universal contact clamps type PC/BM made by press forged brass tested for high intensity current and fitted with three different attack points for copper cable
- Hexagonal tang made by galvanized steel
- n°3 Extra flexible electrolytic copper cables of short circuit, covered by transparent PVC or silicone sheath, for the connection between the three contact clamps and the central connector
- Section (from 25 to 95 mm²) length 0,75 m complete, at the extremities, of tinning copper lugs and reinforcements by transparent heat-shrink sheath
- Central trifurcating connector
- Ground electrolytic copper cable
- Ground clamp made by press forged brass, clamping capacity up to 22 mm
- Insulating fiberglass rod type PE2/135EF (or other length) made of epoxy resin reinforced by fiberglass in two elements connected between them by quick coupler
- Comes with metallic carrying case
- Clamping capacity on round conductor: 5-40mm (dia); Flat conductor: 40 x 60mm; Bars on horizontal level: 12 x 60mm; 45 degree slanting bars: up to 28mm thickness
- Insulating Fiberglass Rod Length: 1.35 Mtrs
- Cable Section: 50 sq.mm
Items Included:
3x Contact Clamp, 1x Copper Cable (5 Mtrs), 1x Insulated Fiberglass Rod (1.35 Mtrs)
Item Name: |
Earthing and Short Circuiting Kit |
Model: |
MT-BM-50-5 |
Manufacturer: |
Generic |
Color: |
Multicolor |
Test: |
13.77 kA/1 sec. |
Cable Length: |
5 Mtrs |
Brand Origin (not manufacture): |
Italy |
Standards: |
EN 61235 |
Delivery Time: |
2-7 Days |
Unit: |
Kit |
