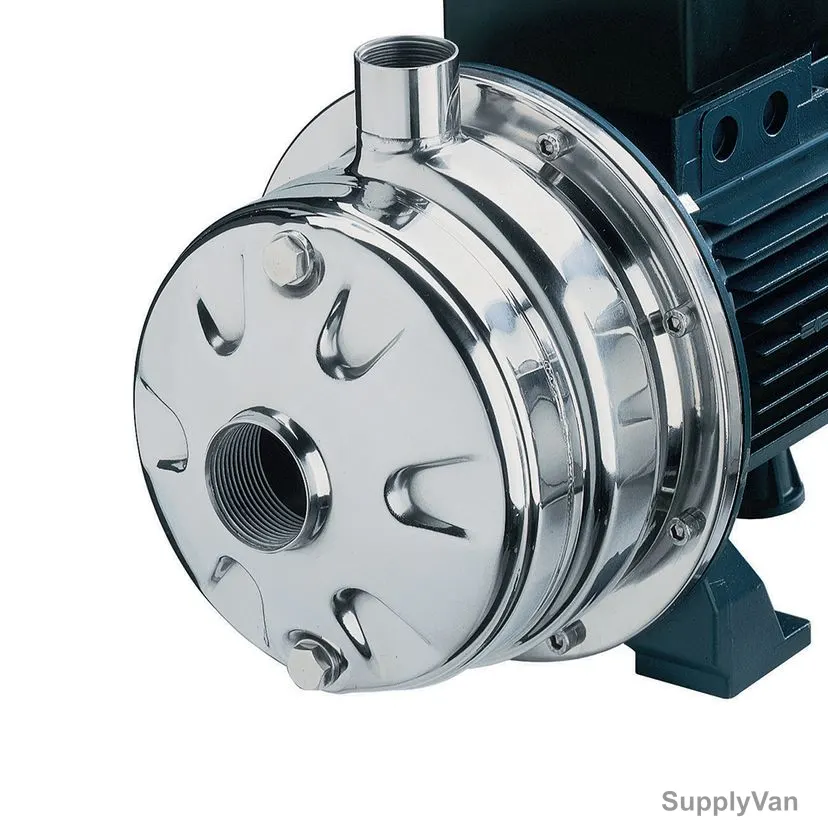

Ebara Dual Impeller Centrifugal Pump, 2CDX-I-120-20, 3 Phase, 1.5 kW, 2 HP, 8 Bar
(No reviews yet)
Write a Review
- Brand:
- Ebara
- SKU:
- 811718323395
- Minimum Purchase:
- 1 unit
- Item Name:
- Centrifugal Pump
- Model:
- 2CDX-I-120-20
- Manufacturer:
- Ebara
- Color:
- Silver and Black
- Motor:
- IE3
- Motor Power:
- 1.5 kW
- Voltage:
- 400V
- Power in HP:
- 2 HP
- Frequency:
- 50Hz
- Frame Material:
- Stainless Steel AISI 304
- Suction Diameter:
- 1-1/4 Inch
- Ring Material:
- NBR
- Working Pressure:
- 8 Bar
- Ingress Protection (IP Rating):
- IP55
- Max. Water Temperature:
- -5 to 60 Deg.C
- Insulation Class:
- F
- Manufacture Part Number:
- 1621200004I
- Application:
- Domestic pressure boosting, Small-scale garden irrigation, Washing, Treating water, Cooling towers, Moving clean water in general
- Brand Origin (not manufacture):
- Japan
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The Ebara Dual Impeller Centrifugal Electric Pump is a 3-phase pump designed for industrial use. It has a power output of 1.5 kW or 2 HP and can generate a maximum pressure of 8 Bar. The pump features dual impellers which help increase the flow rate and improve overall efficiency. It is constructed with high-quality materials to ensure durability and longevity. This pump is suitable for a variety of applications, including water supply, irrigation, heating and cooling systems, and more.
- Strong structure
- High efficiency motors
- Self-ventilated 2 pole asynchronous motor
- Protection under user's responsibility for the three phase version
- Rotary Seal Ring Material: Ceramic
- Stationary Seal Ring: Carbon Graphite
- Self Driving Spring Material: AISI 316
- Discharge Size: 1 Inch
Item Name: |
Centrifugal Pump |
Model: |
2CDX-I-120-20 |
Manufacturer: |
Ebara |
Color: |
Silver and Black |
Motor: |
IE3 |
Motor Power: |
1.5 kW |
Voltage: |
400V |
Power in HP: |
2 HP |
Frequency: |
50Hz |
Frame Material: |
Stainless Steel AISI 304 |
Suction Diameter: |
1-1/4 Inch |
Ring Material: |
NBR |
Working Pressure: |
8 Bar |
Ingress Protection (IP Rating): |
IP55 |
Max. Water Temperature: |
-5 to 60 Deg.C |
Insulation Class: |
F |
Manufacture Part Number: |
1621200004I |
Application: |
Domestic pressure boosting, Small-scale garden irrigation, Washing, Treating water, Cooling towers, Moving clean water in general |
Brand Origin (not manufacture): |
Japan |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
