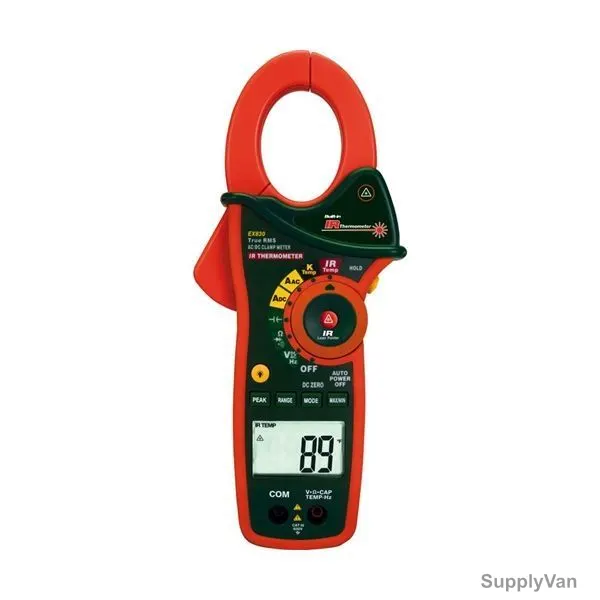

Extech Clamp On Digital Clamp Meter, EX830, -50 to 270 Deg.C
(No reviews yet)
Write a Review
- Brand:
- Extech
- SKU:
- 593396645482
- Minimum Purchase:
- 1 unit
- Item Name:
- Clamp On Digital Clamp Meter
- Model:
- EX830
- Manufacturer:
- Extech
- Voltage:
- 115-230V
- Input Voltage Frequency:
- 1-4000Hz
- Accuracy:
- +/- 2.0 percent
- Measuring Resistance Range:
- 0.1 to 40 MOhm
- Temperature Range (Degree Celsius):
- -50 to 270 Deg.C
- Measuring Voltage Range - AC:
- 0.1mV to 600V
- Measuring Voltage Range - DC:
- 0.1mV to 600V
- Capacitance:
- 0.001nF to 40,000muF
- Current Range:
- 0.1 to 1000A
- Brand Origin (not manufacture):
- United States
- Certification:
- CE
- Warranty (Subject to Conditions):
- 1 Year
- Delivery Time:
- 2-3 Weeks
- Unit:
- Piece
Description
The EX830 clamp meter features a unique, built-in, non-contact Infrared thermometer with laser pointer to monitor temperature and locate hot spots on motors and electrical devices. A large 4000 count LCD display with bright back lighting allows you to see the reading in dim light.
View AllClose
- Non-contact Infrared Temperature measurements with laser pointer
- True RMS Current and Voltage measurements
- Peak hold captures inrush currents and Transients
- MultiMeter functions include AC/DC Voltage and Current, Resistance, Capacitance, Frequency, Diode, Continuity and Type K Thermometer
- 1.7 Inch (43mm) jaw opening for conductors up to 750MCM or two 500MCM
- 4000 count backlit display
- Autoranging with manual range button
- Features include Data Hold and Min/Max, DC Zero, Auto Power off
- Complete with test leads, 9V battery, general purpose Type K probe and case
Item Name: |
Clamp On Digital Clamp Meter |
Model: |
EX830 |
Manufacturer: |
Extech |
Voltage: |
115-230V |
Input Voltage Frequency: |
1-4000Hz |
Accuracy: |
+/- 2.0 percent |
Measuring Resistance Range: |
0.1 to 40 MOhm |
Temperature Range (Degree Celsius): |
-50 to 270 Deg.C |
Measuring Voltage Range - AC: |
0.1mV to 600V |
Measuring Voltage Range - DC: |
0.1mV to 600V |
Capacitance: |
0.001nF to 40,000muF |
Current Range: |
0.1 to 1000A |
Brand Origin (not manufacture): |
United States |
Certification: |
CE |
Warranty (Subject to Conditions): |
1 Year |
Delivery Time: |
2-3 Weeks |
Unit: |
Piece |
