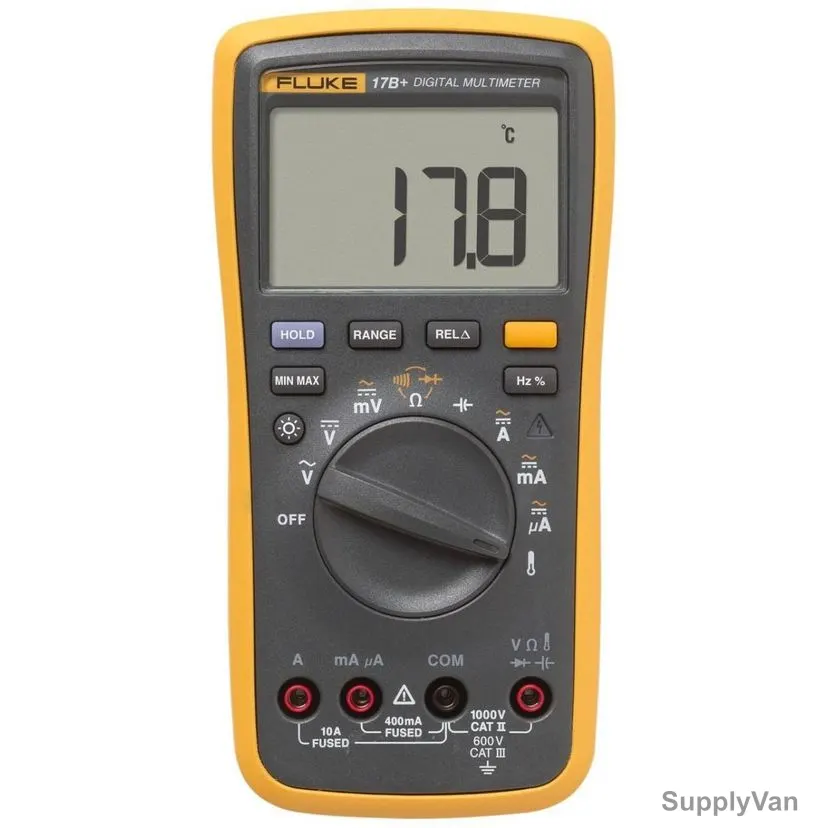

Fluke Digital Multimeter, F17B+, 600V, 10A
- Brand:
- Fluke
- SKU:
- 461677473488
- Minimum Purchase:
- 1 unit
- Item Name:
- Digital Multimeter
- Model:
- F17B+
- Manufacturer:
- Fluke
- Temperature Range:
- 50 to 400 deg.C, 0 to 50 deg.C, -55 to 0 deg.C
- DC Current Accuracy:
- 1.5% + 3
- AC Current Accuracy:
- 1.5% + 3
- Resistance Accuracy:
- 0.5% + 3, 0.5% + 2, 0.5% + 2, 0.5% + 2, 0.5% + 2, 1.5% + 3
- Measuring Voltage Range - AC:
- 4V, 40V, 400V, 1000V
- Measuring Voltage Range - DC:
- 4V, 40V, 400V, 1000 V
- Storage Temperature:
- -30 to 60 deg.C
- Measuring Current Range - DC:
- 400uA, 4000uA
- Measuring Current Range - AC:
- 400uA, 4000uA
- Measuring Capacitance Range:
- 40nF, 400.0 nF, 4uF, 40.00uF, 400.0uF, 1000uF
- DC Voltage Accuracy:
- 0.5% + 3
- Temperature Accuracy:
- 2% +/- 1 deg.C, +/- 2 deg.C, 9% +/-2 deg.C
- AC Voltage Accuracy:
- 1.0% +3
- Frequency Accuracy:
- 0.1% + 3
- Capacitance Accuracy:
- 2% + 5, 2% + 5, 5% + 5, 5% + 5, 5% + 5, 5% + 5
- Measuring Resistance Range:
- 400Ohm, 4kOhm, 40kOhm, 400kOhm, 4MOhm, 40MOhm
- Measuring Frequency Range:
- 50Hz, 500Hz, 5kHz, 50kHz, 100kHz
- Storage Temperature (Degree Celsius):
- -30 to +60 deg C
- Duty Cycle:
- Accuracy: 1 % typical4, Range: 1% to 99%, Resolution: 0.1%
- Battery Life:
- 500 Hrs Min (50 Hrs in LED Test mode without load. The hours with load depends on the type of LED under test.
- Humidity:
- Greater Than Equal To 90% RH at 10 deg.C to 30 deg.C, Greater Than Equal To 75% RH at 30 deg.C to 40 deg.C
- Ingress Protection (IP Rating):
- IP40
- Product Size L x B x H (Cms):
- 18.3L x 9.1B x 4.95H
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
- The Fluke and 17B+ digital multimeters are compact, easy to use tools that deliver safe, reliable measurements
- 600 V Cat III safety rating
- 50% bigger display with bright white backlight
- Over-voltage indicator
- Frequency and temperature measurement
- Voltage, resistance, continuity, capacitance
- Input terminal for ac and dc current measurements to 10 A current
- Diode test, data hold
