Fluke Infrared and Contact Thermometer, 561, -40 to 550 Deg.C

(No reviews yet) Write a Review
Brand:
Fluke
SKU:
444687654463
Minimum Purchase:
1 unit
Item Name:
Infrared and Contact Thermometer
Manufacturer:
Fluke
Storage Temperature:
-20 to 65 Deg.C
Operating Temperature:
0 to 50 Deg.C
Display Mode:
Display Mode
Battery Size:
AA
Laser Class:
Class 2
Display Resolution:
0.1 Deg.C of reading
Focus Spot Size To Distance Ratio:
12:1
Battery Life:
12 Hrs
Temperature Range:
-40 to 550 Deg.C
Brand Origin (not manufacture):
United States
Warranty (Subject to Conditions):
2 Years
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
  • Fluke Infrared and Contact Thermometer, 561, -40 to 550 Deg.C
  • Fluke Infrared and Contact Thermometer, 561, -40 to 550 Deg.C
AED1,077.00
Free Shipping Over "100AED" (Dubai, Sharjah, Ajman)

Description

Product overview: 561 HVAC Infrared & Contact Thermometer
Fluke 561 IR and contact thermometer meets the needs of most industrial and residential temperature applications

The Fluke 561 IR contact thermometer combines the temperature measurement functions that industrial, electrical, and HVAC/R professionals need in one tool. It is an IR thermometer for non-contact measurements, with K-type thermocouple capability for contact temperature measurement. It's fast, efficient, and easy to use, saving you valuable time and effort.

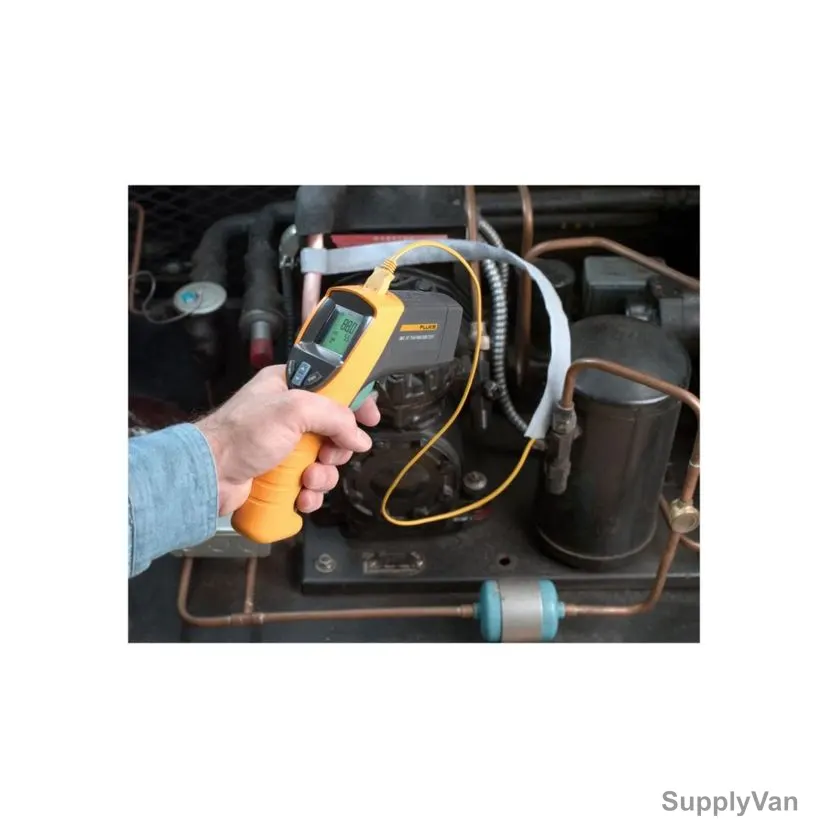

Use the 561 IR capabilities to scan large areas or small objects quickly and efficiently, without having to shut down equipment. Measure hot, moving, electrically energized, and hard-to-reach objects instantly. Check motors, insulation, breakers, radiant heating, pipes, corroded connections, and wires. Plus, scan ducts, and other hard-to-reach objects from the floor and leave your ladder in the truck.

You can also use the Fluke 561's handy flexible pipe probe (included) to take super-heat or internal temperatures. Or plug in any industry standard type K mini connector thermocouple probe to take those measurements and preserve your investment in thermocouples you already own.

Other useful features:
  • Features fabric hook-and-loop fastener pipe probe for superheat, sub-cooling, and other contact and ambient measurements
  • Provides MIN, MAX, and DIF functions to help you quickly identify problems
  • Weighs only 12 ounces/340 grams) and is extremely easy to use
    • General Specifications
  • Easy emissivity selector: Adjustable with three settings: Low (0.3), medium (0.7). high (0.95)
  • Display accuracy [assumes ambient operating temperature of 23Deg.C (73Def.F) to 25Deg.C (77Def.F)]: +/-1.0% of reading +/-1% of reading or +/-1Deg.C (+/-2Def.F), whichever is greater below 0Deg.C / 32Def.F, +/-1Deg.C (+/-2Def.F) +/-0.1°/1°
  • Response time: 500 mSec (95% of reading)
  • Repeatability: +/-0.5% of reading or +/-1Deg.C (+/-2Def.F), whichever is greater
  • Spectral response: 8 µm to 14 µm
  • Laser sighting: Single point laser
  • Laser shutoff: Laser turns off above ambient temperature of 40Deg.C (104Def.F)
  • Laser power: Class 2(II) operation; Output < 1 mW, wavelength 630-670 nm
  • Relative humidity: 10% to 90% RH non-condensing, at < 30Deg.C (86Def.F)
  • Display hold: 7 seconds
  • Backlit display: Yes, LCD with dual temperatures (current and MAX/MIN/DIF/KTC), low battery, F/C indicator, and Scan/Hold options
  • MAX, MIN, DIF temperatures: Yes
  • Thermocouple Type K mini adapter input: Yes, compatible with industry standard K type probes with mini-connector. Displays to the thermometer temperature range.
  • Thermocouple Type K fabric hook-and-loop fastener pipe probe: Yes, with a temperature range of 0Deg.C to 100Deg.C (32Def.F to 212Def.F) and accuracy of +/-2.2Deg.C (+/-4Def.F)
  • HVAC measurement guide: Yes

    • Contact and non-contact IR thermometer for measuring up close or at a distance, without a ladder
    • Measures temperature from -40Deg.C to 550° C (-40Def.F to 1022Def.F)
    • Works with all standard mini-connector type K thermocouples
    • Provides single-point laser sighting
    • Allows easy emissivity adjustment for measuring pipes and other shiny surfaces more accurately
    Item Name:
    Infrared and Contact Thermometer
    Manufacturer:
    Fluke
    Storage Temperature:
    -20 to 65 Deg.C
    Operating Temperature:
    0 to 50 Deg.C
    Display Mode:
    Display Mode
    Battery Size:
    AA
    Laser Class:
    Class 2
    Display Resolution:
    0.1 Deg.C of reading
    Focus Spot Size To Distance Ratio:
    12:1
    Battery Life:
    12 Hrs
    Temperature Range:
    -40 to 550 Deg.C
    Brand Origin (not manufacture):
    United States
    Warranty (Subject to Conditions):
    2 Years
    Delivery Time:
    2-7 Days
    Unit:
    Piece
