Fluke Leakage Current Clamp Meter, 369 FC-UMS, 60A, 61MM Jaw
(No reviews yet)
Write a Review
- Brand:
- Fluke
- SKU:
- 497941752913
- Minimum Purchase:
- 1 unit
- Item Name:
- Clamp Meter
- Model:
- 369 FC-UMS
- Manufacturer:
- Fluke
- Color:
- Yellow and Black
- Battery Size:
- AA
- Storage Temperature:
- -40 to +60 Deg.C
- Refresh Rate:
- 4 times/sec
- Safety Rating:
- IEC 61010-2-032: CAT III 600V / CAT IV 300V
- Battery Life:
- 150 hrs
- Jaw Opening Size:
- 61mm
- Battery Type:
- Alkaline
- Conductor Size:
- 61mm
- Display Type:
- Digital
- Brand Origin (not manufacture):
- United States
- Product Size L x B x H (Cms):
- 25.7L x 11.6B x 4.6H
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

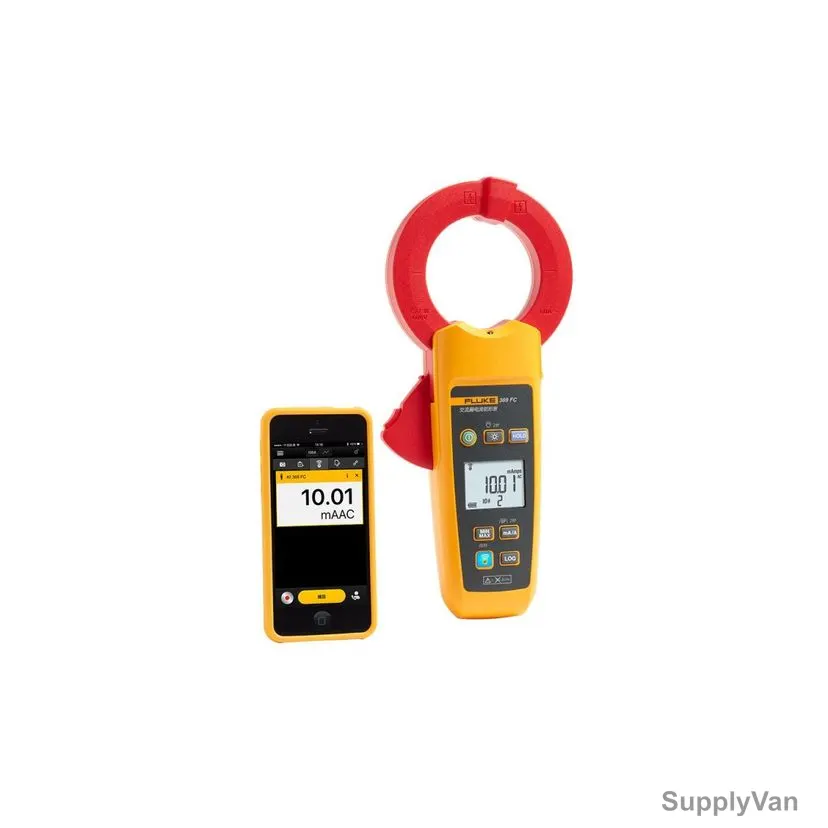

The Fluke 369 FC true-rms leakage current clamp meter helps users detect, document, record and compare leakage current readings over time as a means of preventing unplanned downtime, and identifying intermittent GFCI and RCD trips, all without taking equipment off line. The Fluke 369 FC has an oversize 61 mm jaw for work with extra-large conductors. The clamp’s jaw is fully shielded to accurately capture very small leakage signals, and to minimize external electromagnetic interference. The 369 FC also offers wireless data connectivity via Fluke Connect. As part of Fluke Connect — the industry’s largest system of software and more than 40 wireless test tools the 369 FC allows you to track changes in leakage current over time, helping to identify potential problems before they turn into major failures.
Specifications
Measurement function: Alternating current AC ampere range: 3 mA, 30 mA, 300 mA, 3 A, 30 A, 60 A Range/Resolution: 3 mA / 0.001 mA, 30 mA / 0.01 mA, 300 mA / 0.1 mA, 3 A / 0.001 A, 30 A / 0.01 A, 60 A / 0.1 A Accuracy - filter activated (40 to 70 Hz), filter off (40 to 1 kHz): 3 mA to 30 A - 1% + 5 digits, 60A - 2% + 5 digits Automatic shut-down: Meter automatically shuts down after 15 minutes of inactivity General safety: IEC 61010-1: Pollution Degree 2 Operating humidity: Non-condensing (<10 Deg.C), 90% relative humidity (10 Deg.C to 30 Deg.C), 75% relative humidity (30 Deg.C to 40 Deg.C), 45% relative humidity (40 Deg.C to 50 Deg.C) Protection class IEC 60529: IP30 (jaw closed) Current sensor action category: IEC 61557-13: Class 2, <=100 A / m
Items Included:

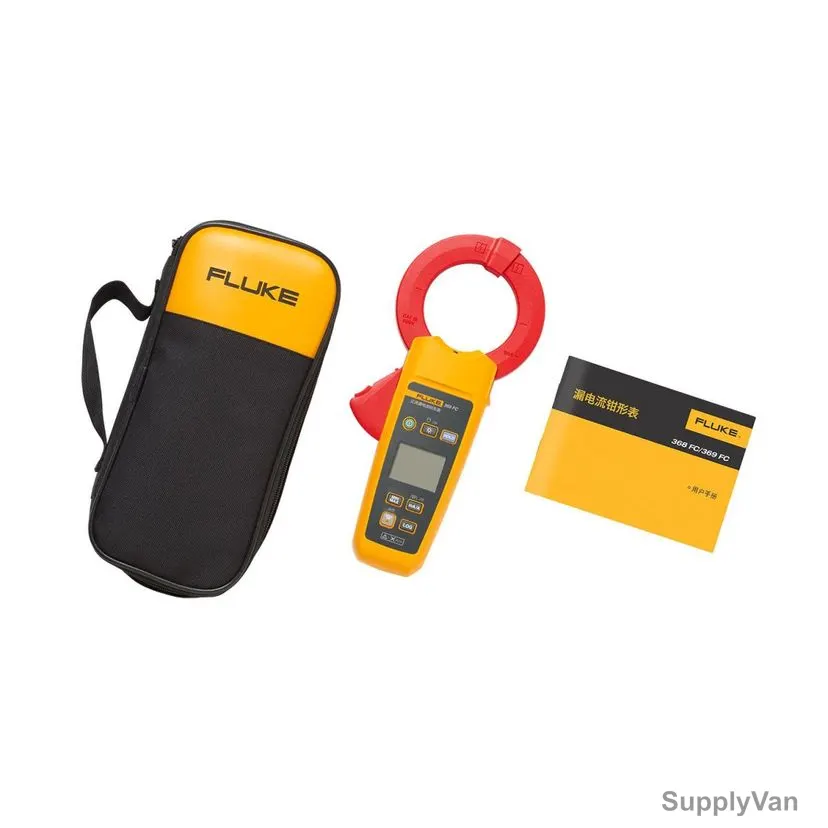

Leakage Clamp Meter, Soft case, Safety manual, Batteries: 2 AA
View AllClose
Specifications
- True-rms measurements for accuracy when measuring complex, non-sinusoidal waveforms
- 61 mm jaw opening
- Highest resolution of 1 ?A, measure up to 60 A
- Selectable filter function removes unwanted noise
- Max/Min/Average readings and hold function
- Forward-facing LED worklight for use in dark wiring cabinets
- Backlit display; auto backlight off and auto power off for extended battery life
- CAT III 600V safety rating
Items Included:
Leakage Clamp Meter, Soft case, Safety manual, Batteries: 2 AA
Item Name: |
Clamp Meter |
Model: |
369 FC-UMS |
Manufacturer: |
Fluke |
Color: |
Yellow and Black |
Battery Size: |
AA |
Storage Temperature: |
-40 to +60 Deg.C |
Refresh Rate: |
4 times/sec |
Safety Rating: |
IEC 61010-2-032: CAT III 600V / CAT IV 300V |
Battery Life: |
150 hrs |
Jaw Opening Size: |
61mm |
Battery Type: |
Alkaline |
Conductor Size: |
61mm |
Display Type: |
Digital |
Brand Origin (not manufacture): |
United States |
Product Size L x B x H (Cms): |
25.7L x 11.6B x 4.6H |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
