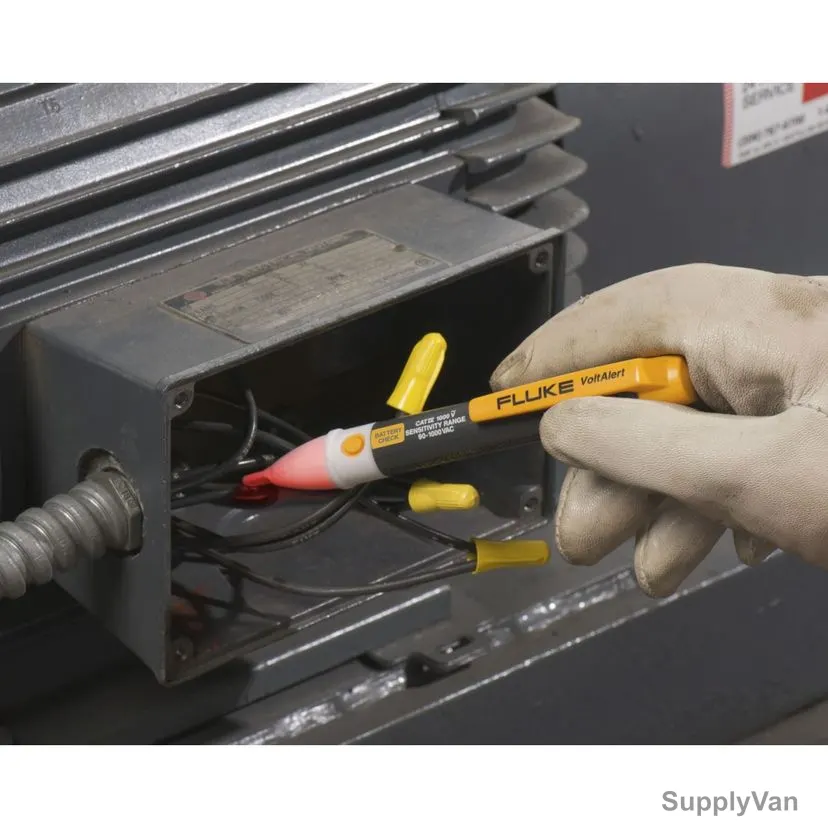

The Fluke 2AC is the latest addition to the VoltAlert AC non-contact voltage tester family. It is designed to be pocket-sized and easy to use. The tip of the pocket-sized tester will glow red when within close proximity of an outlet, terminal strip, or power cord where voltage is present. The 2 AC is always on, with a battery check function to make sure the tester is working properly.
Specifications
Operating Principles: Senses the steady state electrostatic ?eld produced by AC voltage through insulation without requiring contact to the bare conductor. A red glow at the tip indicates the presence of voltage. Safety Compliance: Meets IEC 61010-1:2001, UL 61010-1 (2nd ed.), CAN/CSA-C22.2 No. 61010-1-04, and ISA-82.02.01 Pollution Degree 2 EMC Compliance: Meets IEC 61326-1:2006 Operating: 200V AC to 1000V AC, CAT IV 1000V rated Operating Humidity Ranges: 0% to 95% (0 Deg.C to 30 Deg.C), 0% to 75% (30 Deg.C to 40 Deg.C), 0% to 45% (40 Deg.C to 55 Deg.C) Cleaning: Clean with damp cloth Battery Life: Typical battery life of greater than one year
Specifications

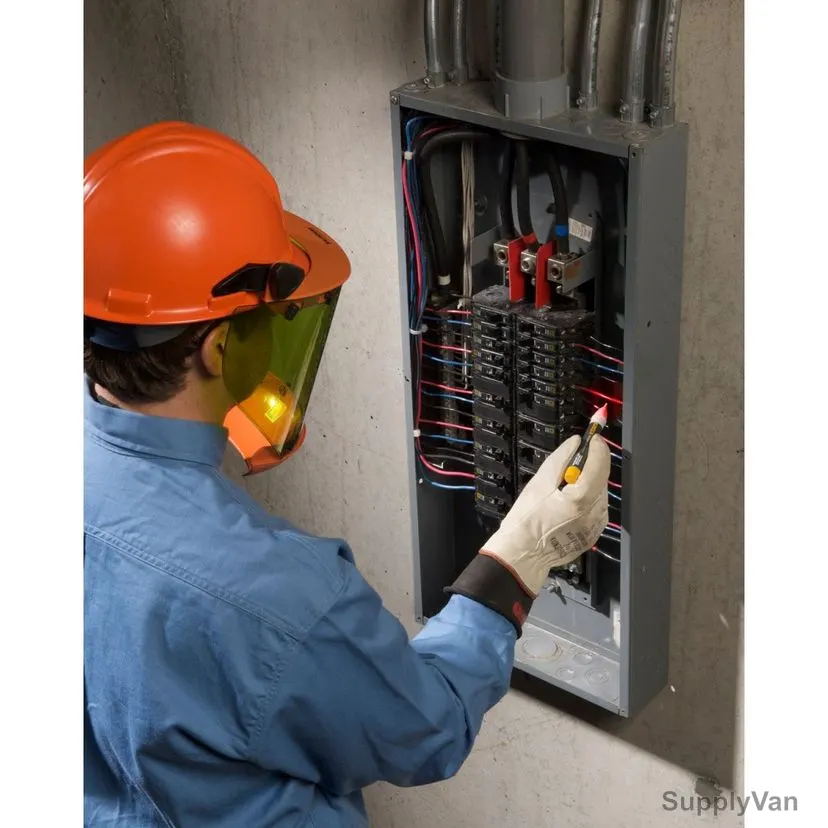

- The 2AC tests for energized circuits and defective grounds, whether it's for an electrician on the factory floor or the do-it-yourselfer around the house
- CAT IV 1000V overvoltage rated product for best in class user protection
- Suitable for a wide range of residential, commercial and industrial needs
- Fluke ruggedness and reliability with a two-year warranty
- Voltage detection from 200 to 1000VAC, suitable for a wide range of residential, commercial and industrial needs
- Innovative 'Battery Check' ensures battery is in good condition
- Integrated clip design, optimized for pocket storage
