Fyh Pillow Block Bearing, FYHUCP210, 2 Bolt, 206MM
(No reviews yet)
Write a Review
- Brand:
- Fyh
- SKU:
- 421255553383
- Minimum Purchase:
- 1 unit
- Item Name:
- Pillow Block Bearing
- Model:
- FYHUCP210
- Manufacturer:
- Fyh
- Seal Type:
- Contact Seal with Flinger
- Screw Size:
- M10
- Mounting Type:
- Two-Bolt Base
- Static Load Capacity:
- 5220 lbf
- Dynamic Load Capacity:
- 7980 lbf
- Housing Material:
- Cast Iron
- Cage Material:
- Sheet Steel
- Ring Material:
- Chrome Steel
- Fastening Screw Type:
- Grub Screws
- Bore Diameter:
- 1.9 Inch
- Inner Diameter (MilliMeter):
- 50mm
- Brand Origin (not manufacture):
- Japan
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

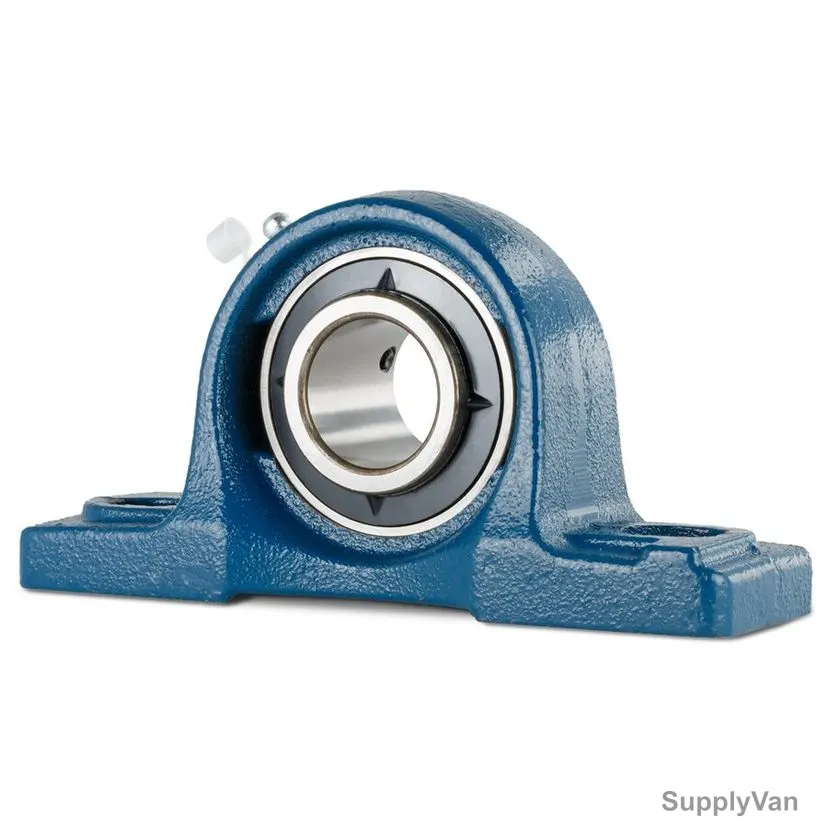

The pillow block bearing FYHUCP-210 is suitable for high radial loads and is particularly robust with its grey cast iron housing.
View AllClose
- Consisting of a ball bearing insert UC 210 and a cast iron housing P 210
- Suitable for mounting on flat surfaces and high radial load capacities
- The housing is made of cast iron and therefore inexpensive and robust
- The bearing insert has an extended inner ring with grub screws
- The flange bearing is mounted on the shaft using two grub screws
- Smooth running and good behaviour with tilting due to the extended inner ring
- Static misalignments can be compensated up to an angle of 2°
- Lubricated for life under normal operating conditions relubrication is not required
- Housing with integrated lubrication hole
- To protect against corrosion, the housing is painted; the bearing insert and the mounting surface are treated with corrosion protection oil
- Housing Type: Plummer Block
- Max. Tightening Torques (Nm) For Bearing Insert: 22
- Number of Mounting Holes: 2
Item Name: |
Pillow Block Bearing |
Model: |
FYHUCP210 |
Manufacturer: |
Fyh |
Seal Type: |
Contact Seal with Flinger |
Screw Size: |
M10 |
Mounting Type: |
Two-Bolt Base |
Static Load Capacity: |
5220 lbf |
Dynamic Load Capacity: |
7980 lbf |
Housing Material: |
Cast Iron |
Cage Material: |
Sheet Steel |
Ring Material: |
Chrome Steel |
Fastening Screw Type: |
Grub Screws |
Bore Diameter: |
1.9 Inch |
Inner Diameter (MilliMeter): |
50mm |
Brand Origin (not manufacture): |
Japan |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
