Geze Floor Spring, TS-550-NV, Stainless Steel, Silver
(No reviews yet)
Write a Review
- Brand:
- Geze
- SKU:
- 518643191931
- Minimum Purchase:
- 1 unit
- Item Name:
- Floor Spring
- Model:
- TS-550-NV
- Manufacturer:
- Geze
- Material:
- Stainless Steel
- Color:
- Silver
- Opening Angle:
- 170 Deg
- Installation Type:
- Floor Mounted
- Door Width:
- 1400mm
- For Use With:
- Single Action Door and Double Action Door
- Door Weight:
- 300 Kg
- Brand Origin (not manufacture):
- Germany
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

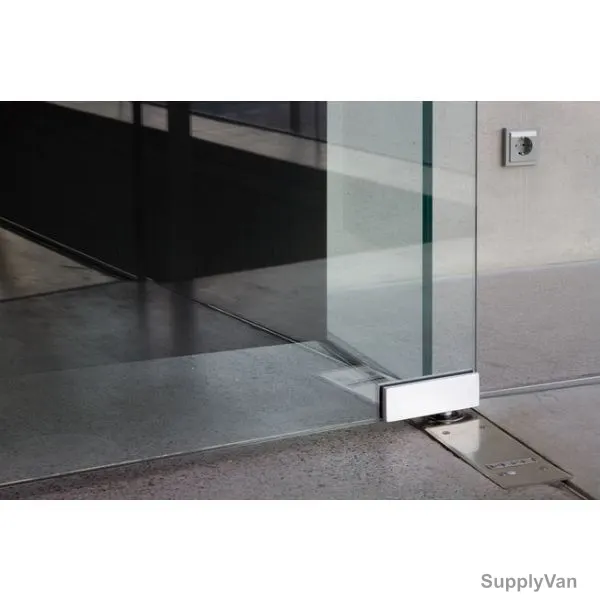

Floor Spring for single leaf single and double-action doors of up to 1400mm leaf width with adjustable closing force EN 3-6 and with hold-open function that can be switched on and off. Application areas are right and left single- and double-action doors, single- and double-action doors up to 1400mm leaf width and 300 kg weight, frequently used and heavy doors, floor mounting, concealed.
View AllClose
- Closing force with variable adjustment EN3-6
- Can be used for right and left hand doors without conversion
- Delayed closing adjustable to adapt the closing force of the door up to approx 80 deg opening angle
- Mechanical hold-open unit in the door closer with hold-open area 85-165 deg
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
- Integrated back check, slows down doors that are thrown open forcefully
- All functions can be adjusted from above and in the installed state
- Closing force in accordance with EN 1154: EN 3 - 6
- Hold-open range: 85-165 Deg
- Back check integrated: Mechanically fixed
Item Name: |
Floor Spring |
Model: |
TS-550-NV |
Manufacturer: |
Geze |
Material: |
Stainless Steel |
Color: |
Silver |
Opening Angle: |
170 Deg |
Installation Type: |
Floor Mounted |
Door Width: |
1400mm |
For Use With: |
Single Action Door and Double Action Door |
Door Weight: |
300 Kg |
Brand Origin (not manufacture): |
Germany |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
