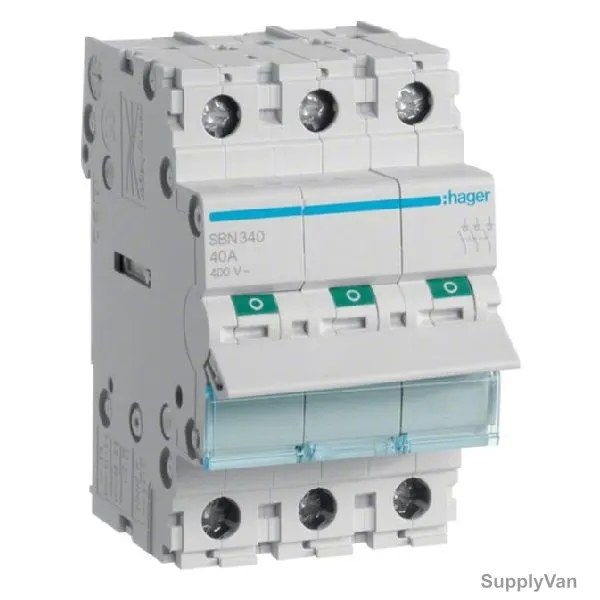

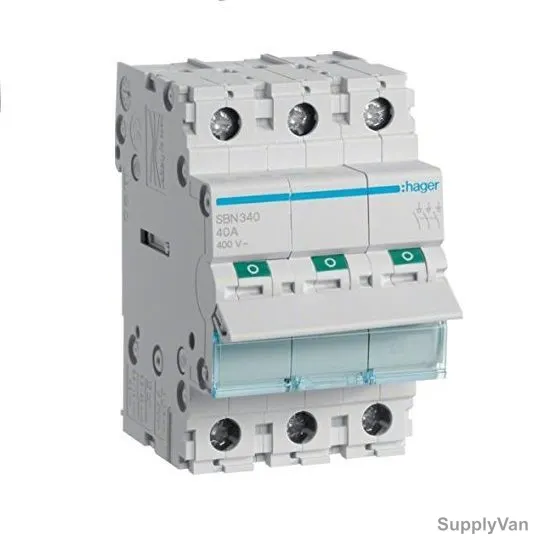

Hager Isolating Switch, SBN340, 40A, 3P, 3 Module, 400V
(No reviews yet)
Write a Review
- Brand:
- Hager
- SKU:
- 521651876296
- Minimum Purchase:
- 1 unit
- Item Name:
- Isolating Switch
- Model:
- SBN340
- Manufacturer:
- Hager
- Color:
- White
- Number of Poles:
- 3P
- Frequency:
- 50/60 Hz
- Amps (A):
- 40A
- Height (MilliMeter):
- 83mm
- Width (MilliMeter):
- 52.5mm
- Depth:
- 68mm
- Insulation Voltage:
- 440V
- Ingress Protection (IP Rating):
- IP20
- Storage Temperature:
- -40 to 80 Deg.C
- Residual Current Type:
- AC
- Connection Type:
- Screw
- Conductor Material:
- Copper
- Operational Voltage:
- 400V
- Brand Origin (not manufacture):
- Germany
- Standards:
- 3217,16658,16657
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
Modular switch disconnectors is guarantee of reliability in function and a high level of safety in use due to switch disconnectors with an indicator light.
View AllClose
- Rated impulse withstand voltage: 4000V
- Electrical durability at nominal load in AC21in operating cycles: 25000
- Electrical durability at nominal load in AC22 in operating cycles: 25000
- Number of mechanical operations: 200000
- Tightening Torque: 1.8Nm
Item Name: |
Isolating Switch |
Model: |
SBN340 |
Manufacturer: |
Hager |
Color: |
White |
Number of Poles: |
3P |
Frequency: |
50/60 Hz |
Amps (A): |
40A |
Height (MilliMeter): |
83mm |
Width (MilliMeter): |
52.5mm |
Depth: |
68mm |
Insulation Voltage: |
440V |
Ingress Protection (IP Rating): |
IP20 |
Storage Temperature: |
-40 to 80 Deg.C |
Residual Current Type: |
AC |
Connection Type: |
Screw |
Conductor Material: |
Copper |
Operational Voltage: |
400V |
Brand Origin (not manufacture): |
Germany |
Standards: |
3217,16658,16657 |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
