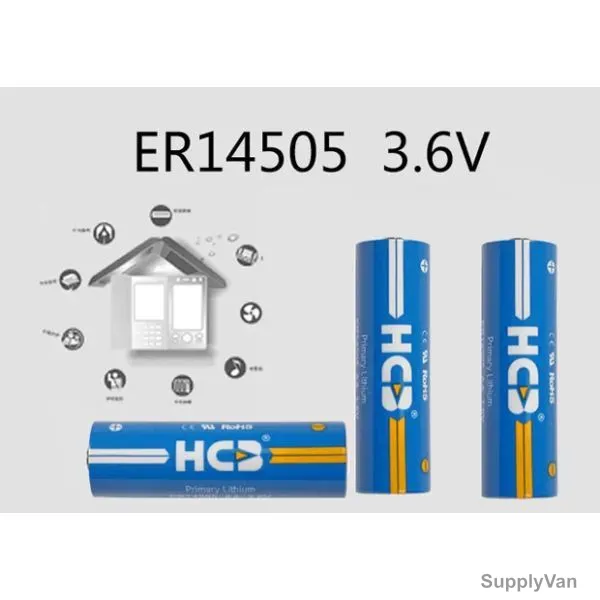

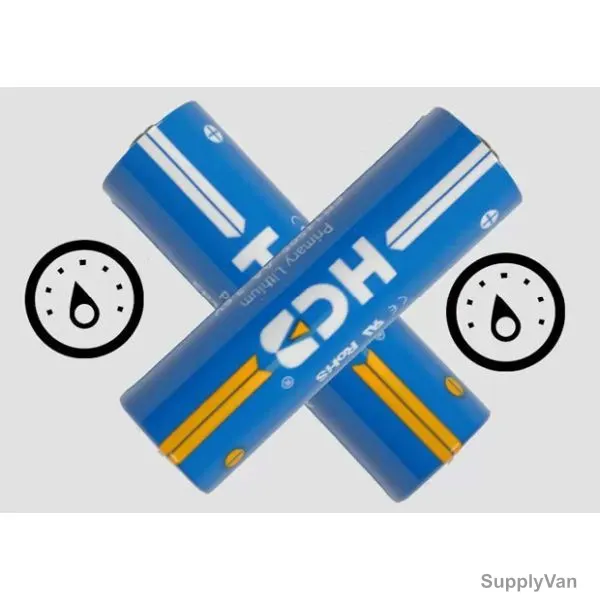

Hcb Li-SOCl2 Cylindrical Battery, ER14505, 3.6V, 2600mAh
(No reviews yet)
Write a Review
- Brand:
- Hcb
- SKU:
- 469773152388
- Minimum Purchase:
- 1 unit
- Item Name:
- Cylindrical Battery
- Model:
- ER14505
- Manufacturer:
- Hcb
- Amps (A):
- 50mA
- Height:
- 49.2+/-0.5mm
- Diameter:
- 14.2+/-0.3mm
- Battery Voltage:
- 3.6V
- Battery Capacity:
- 2600mAh
- Battery Type:
- Li-SOCl2
- Shelf Life:
- 10 Years
- Relative Humidity:
- <=75%
- Storage Temperature:
- <=30 Deg.C
- Application:
- Security System, Smart Metering, RFID/IoT System, Wireless Transmitting, Smart Home Devices, Military Devices
- Brand Origin (not manufacture):
- China
- Certification:
- UN/CE/UL
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The HCB ER14505 is a premium-grade 3.6V Lithium Thionyl Chloride (Li-SOCl?) primary battery designed to deliver long-lasting, stable, and highly reliable power for mission-critical industrial, commercial, and remote electronic applications. Built to the AA (14505) cylindrical form factor, this battery is engineered for exceptionally long operational life, making it one of the most widely used cells in smart metering, IoT devices, and low-power electronic systems that require uninterrupted performance over many years. With its high energy density and ultra-low self-discharge rate (typically less than 1% per year), the battery ensures dependable, maintenance-free operation for extended durations—often exceeding 8 to 12 years, depending on device usage and environmental conditions. The battery’s 3.6V nominal voltage remains stable over most of its lifespan, which is critical for devices that demand consistent performance, precise readings, and predictable power behavior. Engineered using Li-SOCl? chemistry, the ER14505 performs exceptionally well in extreme temperatures, with an operating range from ?55°C to +85°C, allowing it to function reliably in harsh industrial environments, outdoor installations, cold-chain systems, or high-heat infrastructure. Its hermetically sealed stainless-steel housing ensures robustness, leak resistance, and durability under vibration, shock, or corrosive atmospheres. This cell is optimized for low-drain, long-duration applications, but it is also capable of supporting moderate pulse currents when combined with appropriate energy-buffering components such as capacitors. With its precisely controlled internal impedance and stable electrochemical system, the battery is a professional-standard solution for electronics that require trusted long-term energy storage.
View AllClose
- High Voltage: Provide the nominal voltage up to 3.6V, the operating voltage varies with the load, normally between 3.3V and 3.6V
- High Energy Density: The specific energy density of each battery is 450Wh/kg
- Stable Operating Voltage: Stable operating voltage, more than 90% of the capacity could be output with a fixed voltage
- Long Shelf Life: The battery self-discharge less than 2% per year at room temperature
- Security and Alarms: Smoke detectors, security alarms, seismometers, locking systems, monitoring systems, etc.
- Military and Defense: Ground force (individual soldier system, infantry fighting vehicles, robot soldier), navy (submarine, underwater robot), air force (fighters, unmanned surveillance drones), aerospace (satellites, shuttles), etc.
- Oil and Gas: Well pressure meters in high temperature, float meter, logging while drilling (LWD), measure while drilling (MWD), etc.
- Battery discharged at continuous current 1.35mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23+/-2 Deg.C
- Battery with minimum 50% rated capacity discharged at ambient temperature 23+/-2 Deg.C
- Maximum Pulse Discharge Current: 150mA
- Self-discharge Rate: 1%
Item Name: |
Cylindrical Battery |
Model: |
ER14505 |
Manufacturer: |
Hcb |
Amps (A): |
50mA |
Height: |
49.2+/-0.5mm |
Diameter: |
14.2+/-0.3mm |
Battery Voltage: |
3.6V |
Battery Capacity: |
2600mAh |
Battery Type: |
Li-SOCl2 |
Shelf Life: |
10 Years |
Relative Humidity: |
<=75% |
Storage Temperature: |
<=30 Deg.C |
Application: |
Security System, Smart Metering, RFID/IoT System, Wireless Transmitting, Smart Home Devices, Military Devices |
Brand Origin (not manufacture): |
China |
Certification: |
UN/CE/UL |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
