Hioki AC Leakage Clamp Meter, CM4001, 60mA to 600A

(No reviews yet) Write a Review
Brand
SKU:
345585652468
Minimum Purchase:
1 unit
Item Name:
AC Leakage Clamp Meter
Model:
CM4001
Manufacturer:
Hioki
AC Current Accuracy:
+/-1.5% rdg +/-5 digit to +/-2.5% rdg +/-5 digit
Measuring Current Range - AC:
60mA/600mA/6A/60A/600A
Measuring Frequency Range:
40Hz to 999.9Hz
Brand Origin (not manufacture):
Japan
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
AED1,754.00 (Incl.VAT)
Hioki AC Leakage Clamp Meter, CM4001, 60mA to 600A

Hioki AC Leakage Clamp Meter, CM4001, 60mA to 600A

SKU: 345585652468

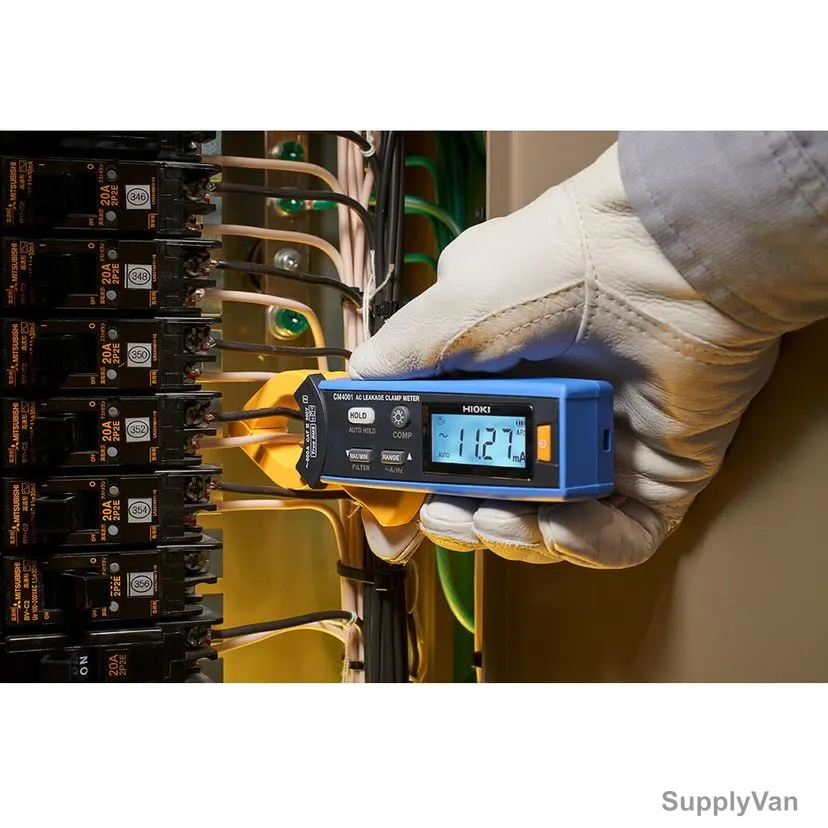

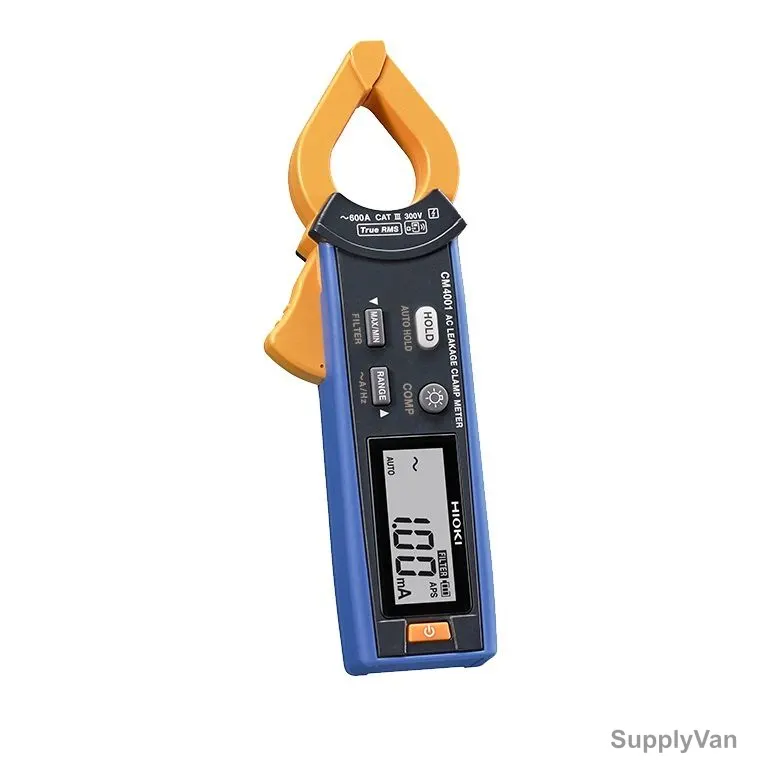

Hioki clamp on meters are best-in-class measuring devices incorporating Hioki’s expertise in current sensing technology. Use the CM4001 to easily clamp within crowded cables in order to reduce work time and improve safety. With guaranteed accuracy from 0.60 mA to 600.0 A, the CM4001 provides a one-stop solution for a variety of applications. A built-in comparator function also helps you find issues much faster.

Basic specifications
Crest factor
  • 4.5 (4000 counts or less) 3 (more than 4000 counts, 6000 counts or less)
  • Filter function
  • Cut off frequency: 180 Hz +/-30 Hz at filter ON (-3 dB)
  • Other functions
  • Comparator function, record Max/Min/Avg value, backlight, data hold, auto power off, AC inrush function
  • Display
  • Display refresh rate: 5 times/s
  • Power supply
  • 1x LR03 alkaline battery; Continuous operating time: 32 hr. (without Z3210 installed), 16 hr. (with Z3210 installed and using wireless communications)
  • Core jaw diameter
  • ? 24 mm (0.94 in)

    • Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel® file. (Wireless Adapter Z3210 is necessary)
    • Slim jaws let you work with ease
    • Measure everything from leakage to load
    • Identify intermittent GFCI and RCD trips to prevent unplanned equipment downtime by testing for earth leakage current
    • Find issues faster with comparator function

    Items Included:
    1x AC Leakage Clamp Meter, 1x Carrying case, 1x Strap, 1x Instruction manual, 1x Operating Precautions, 1x LR03 alkaline battery
