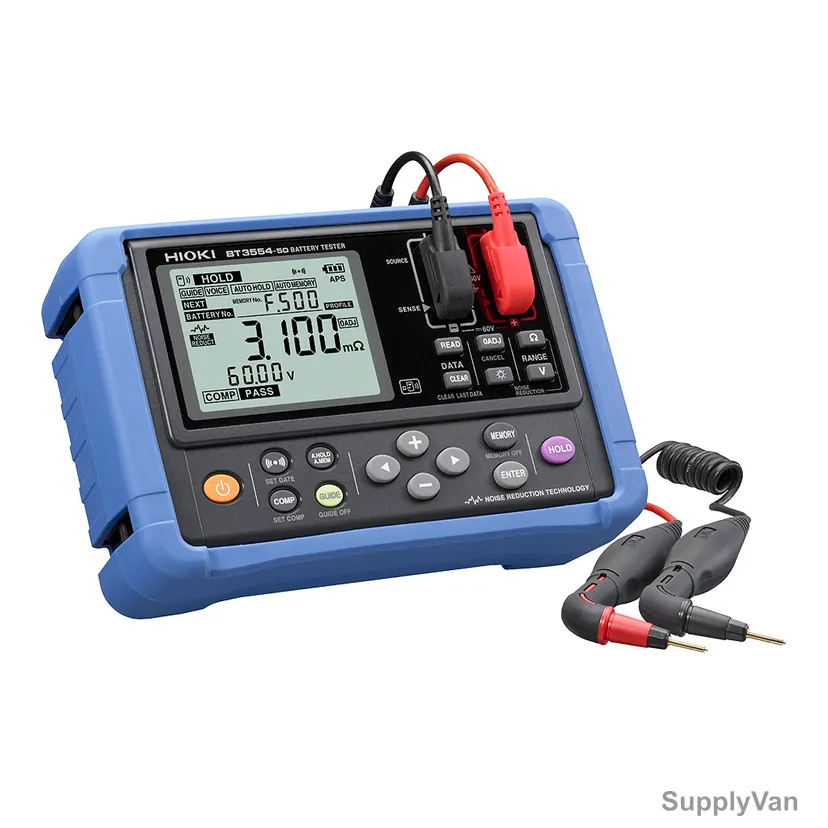

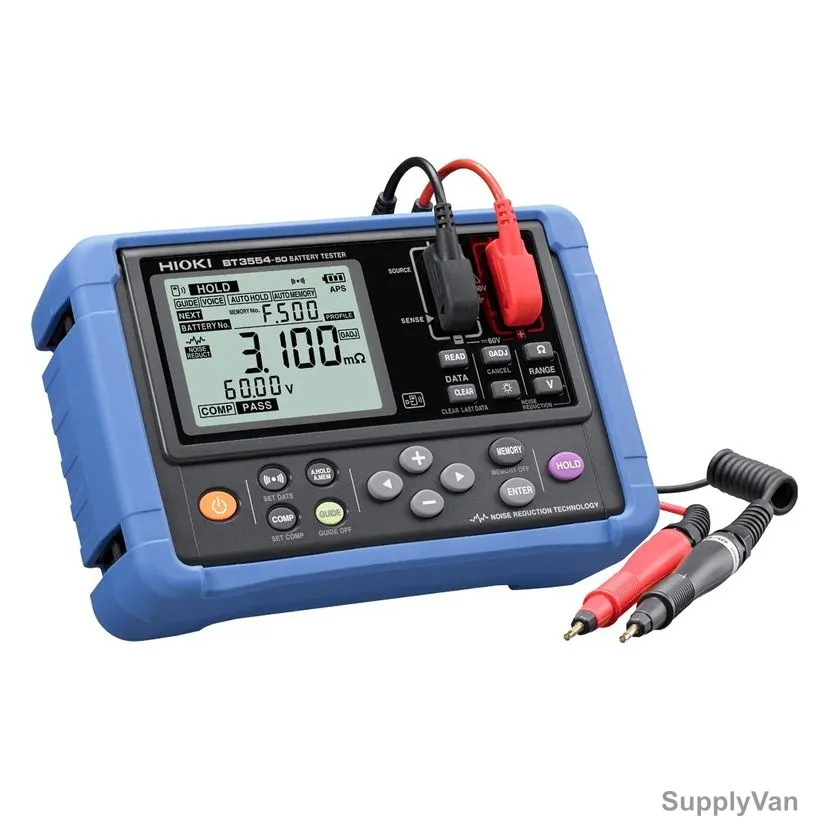

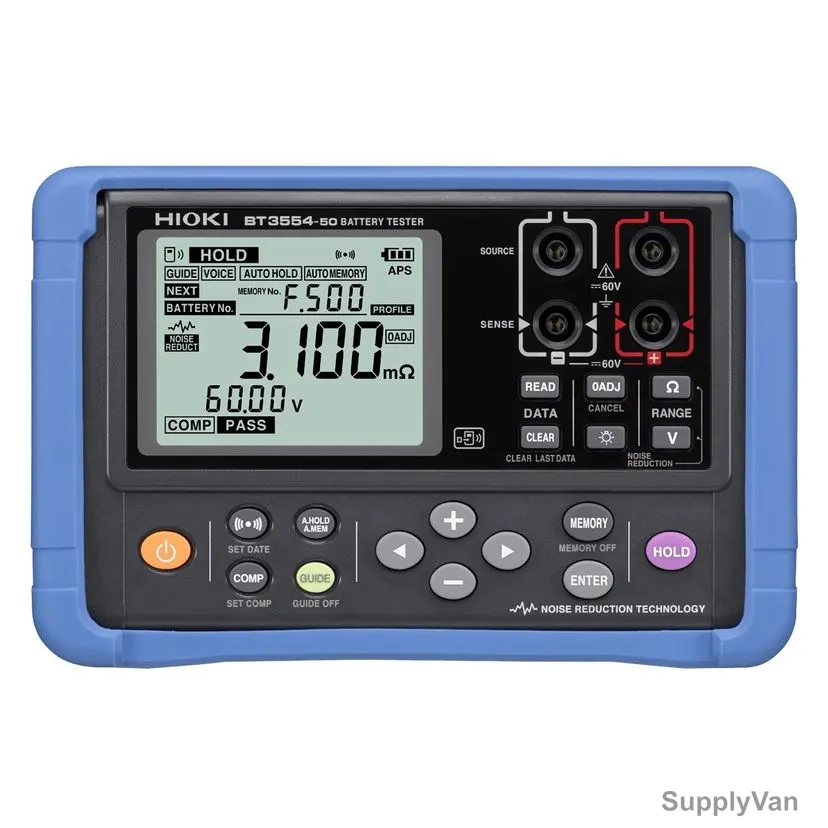

Hioki Battery Tester, BT3554-52, 6 to 60V

Hioki portable battery testers support the maintenance of UPS and storage batteries critical to the life support of all businesses. The BT3554-50 battery internal resistance tester sets the standard for assessing the deterioration and remaining life of UPS and other lead-acid batteries by giving a complete diagnosis via battery resistance testing. The specially designed L2020 Pin Type Lead further improves testing efficiency with an L-shaped tip that lets you reach deep into the battery racks to completely probe the terminals.

Basic specifications
Resistance measurement range

3 mOhm (max. display 3.100 mOhm, resolution 1 UOhm) to 3 Ohm (max. display 3.100 Ohm, resolution 1 mOhm), 4 ranges

Accuracy: +/-0.8 % rdg +/-6 dgt (3 mOhm range: +/-1.0 % rdg +/-8 dgt)

Testing source frequency: 1 kHz +/-30 Hz

With function for avoiding noise frequency enabled: 1 kHz +/-80 Hz

Testing current: 160 mA (3m/30 mOhm range), 16 mA (300 mOhm range), 1.6 mA (3 Ohm range)

Open terminal Voltage: 5 V peak

Temperature measurement accuracy

Measurement range: -10 Deg.CC to 60 Deg.CC (14 Deg.CF to 140 Deg.CF), Maximum display: 60.0 Deg.CC (140.0 Deg.CF), Resolution 0.1 Deg.CC (0.1 Deg.CF), Measurement accuracy*: +/-1.0 Deg.CC (+/-1.8 Deg.CF)

When using the Clip Type Lead with Temperature Sensor 9460.

When using the Temperature Probe 9451, add +/-0.5 Deg.CC (+/-0.9 Deg.CF) (cable length: 1.5 m [59.1"]).

When using the Temperature Probe 9451S, add +/-0.5 Deg.CC (+/-0.9 Deg.CF) (cable length: 0.1 m [3.94"]).

BT3554-50 standalone accuracy with simulated input: +/-0.5 Deg.CC (+/-0.9 Deg.CF)

Measurement time:

100 ms

Comparator

Compares measured values with set threshold values to make judgments and reports them to the user.

Judgment notification method: Results are displayed as shown below (segment) and beeping tones sound

When the Voltage value (high): Resistance value (low)= PASS, Resistance value (medium)= WARNING, Resistance value (high)= FAIL

When the Voltage value (low): Resistance value (low)= WARNING, Resistance value (medium)= WARNING, Resistance value (high)= FAIL

If the judgment result is WARNING or FAIL, the audio tone is accompanied by a red backlight.

User-selectable voltage judgment method: ABS (absolute value judgment), POL (polarity judgment )

Savable settings: 200 tables

Memory functionality

Operation: Save, load, and delete measurement data, Save and delete profile information, Number of data sets: 6000, Memory architecture: 500 data sets per unit (12 units)

Saved data: Saved measurement data is linked to profile information.

1. Measurement data: Data can be saved, loaded, and deleted by operating the instrument.

1. Date and time

2. Resistance value, voltage value, and temperature

3. Comparator threshold value and judgment result

2. Profile information: Profile information can be saved, loaded, and deleted using a supported application (GENNECT Cross or GENNECT One).

1. Profile numbers: 1 to 100 (Data (2), (3), and (4) below are saved for each profile number)

2. Location: User-defined comment such as location of UPS

3. Device information: User-defined comment such as UPS management number

4. Battery number: 1 to 500 (start number, end number)

Measurement Navigator

Operation: Announces the next battery number to be measured via a screen display and audio guidance.

Audio output is generated by a connected mobile device when using the Z3210 and a supported application (GENNECT Cross).

Preparations: Profile information that's been registered with a supported application (GENNECT Cross or GENNECT One) must be transferred to the instrument.

Communication interface

USB

Bluetooth wireless communications (when Z3210 installed)

Other functions

Temperature measurement (-10.0 to 60.0 Deg.CC), Zero-adjustment, Hold, Auto-hold, Auto-memory, Auto-power-save, Clock

• Battery measurement can be performed while the battery is connected to its host device, without taking it offline
• Measure and save data in as fast as 2 seconds, a 60% improvement from the legacy 3554
• Instantaneously diagnose battery degradation (PASS, WARNING, FAIL) by measuring internal resistance and voltage (*1)
• Noise reduction technology improves noise resistance
• Screen and audio (*2) guidance simplifies measurement
• Measurement data is linked to site information and saved, reducing management man-hours

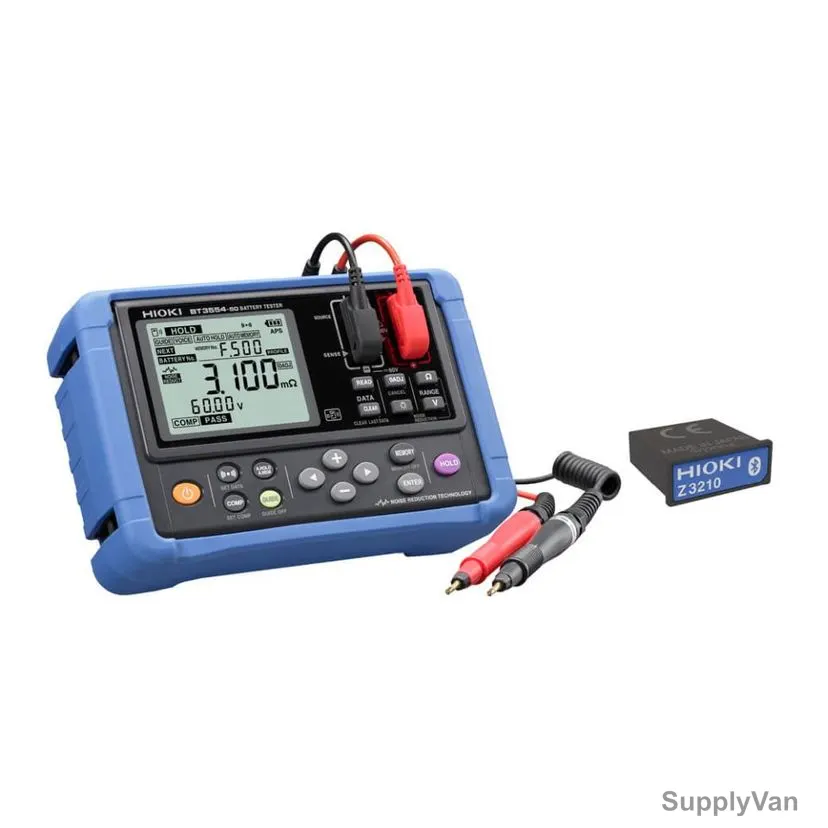

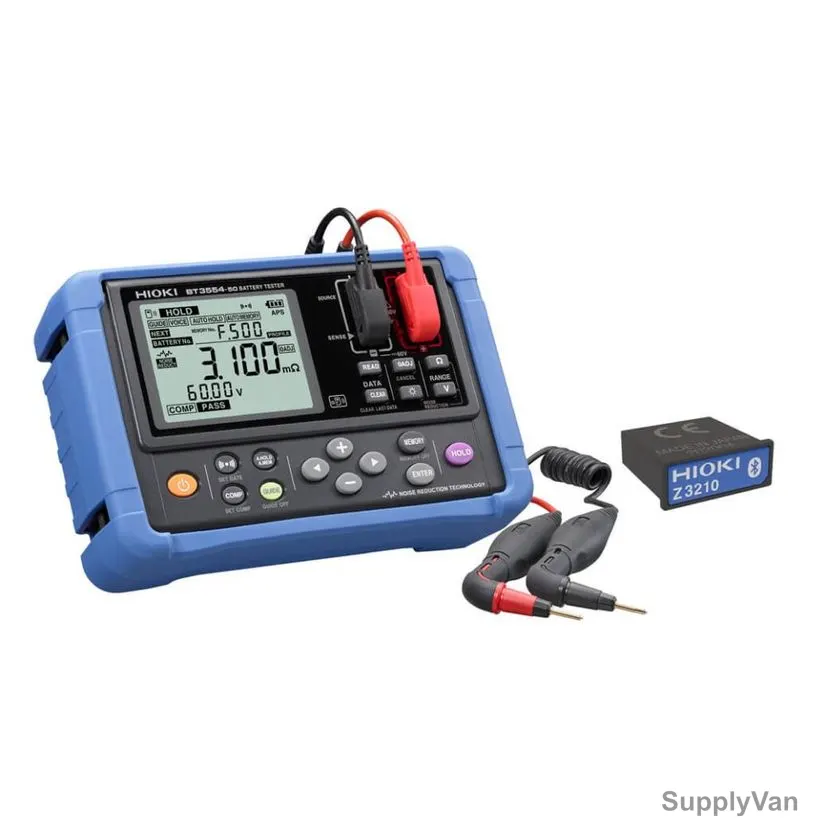

• Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross (*3) or to an Excel® file. (Wireless Adapter Z3210 is necessary)
• New protector delivers better ergonomic hold and durability in the field

Items Included:
1x Battery Tester, 1x Carrying Case C1014, 1x Protector Z5041, 1x Fuse Set Z5050, 1x Adj Board, 1x Neck strap, 1x USB cable, 1x Application software CD (GENNECT One), 8x AA alkaline battery (LR6), 1x User Manual
