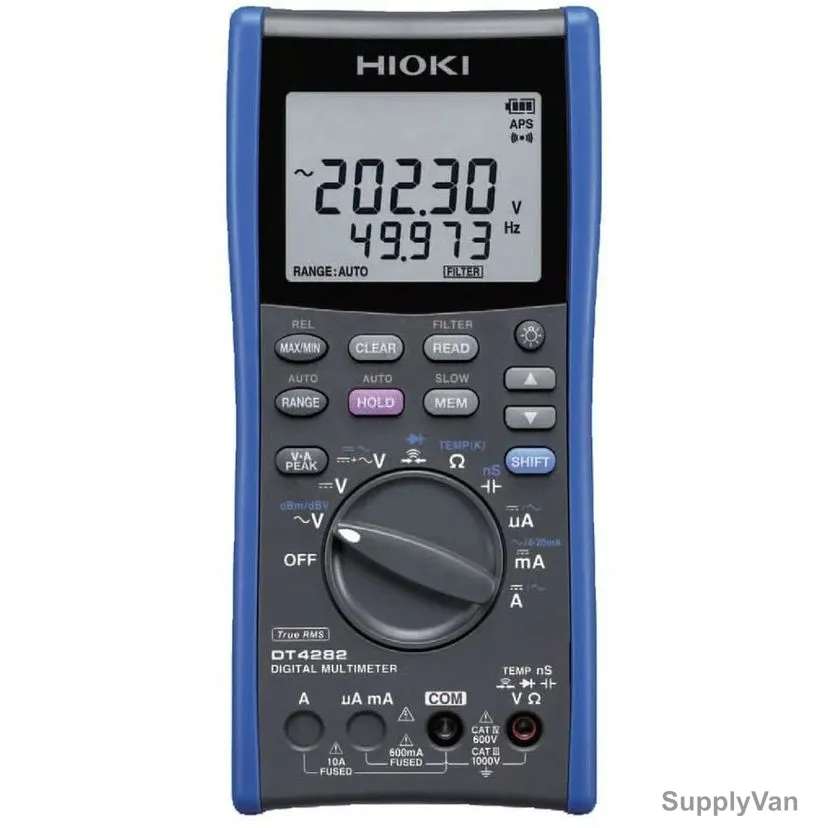

Hioki High End Digital Multimeter, DT4282, 1000V
(No reviews yet)
Write a Review
- Brand:
- Hioki
- SKU:
- 287227122134
- Minimum Purchase:
- 1 unit
- Item Name:
- Digital Multimeter
- Model:
- DT4282
- Manufacturer:
- Hioki
- Battery Chemistry:
- Alkaline
- Battery Size:
- AA
- DC Current Accuracy:
- +/-0.05%
- AC Current Accuracy:
- +/-0.6%
- Resistance Accuracy:
- +/-0.03%
- Display Type:
- LCD
- Voltage:
- 1000V
- Measuring Voltage Range - AC:
- 60mV/1000V
- Measuring Voltage Range - DC:
- 60mV/1000V
- Measuring Current Range - DC:
- 600?A/10A
- Measuring Current Range - AC:
- 600?A/10A
- Measuring Capacitance Range:
- 1?F/100mF
- DC Voltage Accuracy:
- +/-0.025%
- AC Voltage Accuracy:
- +/-0.2%
- Frequency Accuracy:
- +/-0.005%
- Capacitance Accuracy:
- +/-1%
- Measuring Resistance Range:
- 60Ohm/600Mohm
- Measuring Frequency Range:
- 99.999 Hz/500 kHz
- Battery Life:
- 100 Hrs
- Accessories Included:
- Test Lead L9207-10, Instruction Manual, 4x LR6 Alkaline Battery
- Brand Origin (not manufacture):
- Japan
- Product Size L x B x H (Cms):
- 5.3L x 9.3B x 19.7H
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The Hioki DT4200 Digital Multimeter Series consist of a complete lineup of 9 models ranging from professional to industrial to pocket types. The DT4282 is a high-precision 60,000 count digital multimeter with direct 10A input and all of the functions and features required for advanced testing in laboratories and R&D.
View AllClose
- +/-0.025% DC Voltage basic accuracy, Wide 20Hz to 100kHz AC Voltage frequency characteristics
- Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)
- Includes multiple measurement functions such as DC+ACV, temperature, capacitance, and frequency
- Terminal shutter mechanism (prevents erroneous test lead insertion)
- Measure up to 10A with direct input (DT4282 only)
- Dual display lets you check voltage and frequency simultaneously
- Magnetic strap (optional)
- Robust design capable of withstanding a drop from a height of 1 meter
- Broad -15 (5 deg.F) to 55 deg.C (131 deg.F) operating temperature range
- USB communications function supports PC measurements (optional)
