Hioki Non-Contact Phase Detector, PD 3129-10, 70-600VAC
(No reviews yet)
Write a Review
- Brand:
- Hioki
- SKU:
- 479365569838
- Minimum Purchase:
- 1 unit
- Item Name:
- Phase Detector
- Model:
- PD 3129-10
- Manufacturer:
- Hioki
- Battery Chemistry:
- Alkaline
- Battery Life:
- 70 Hrs
- Battery Size:
- AA
- Measuring Frequency Range:
- 50/60Hz
- Measuring Voltage Range - AC:
- 70/600VAC
- Accessories Included:
- Carrying case, Strap, Spiral tube, Instruction manual, 2x R6P (AA) Manganese battery
- Brand Origin (not manufacture):
- Japan
- Product Size L x B x H (Cms):
- 3L x 7B x 7.5H
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

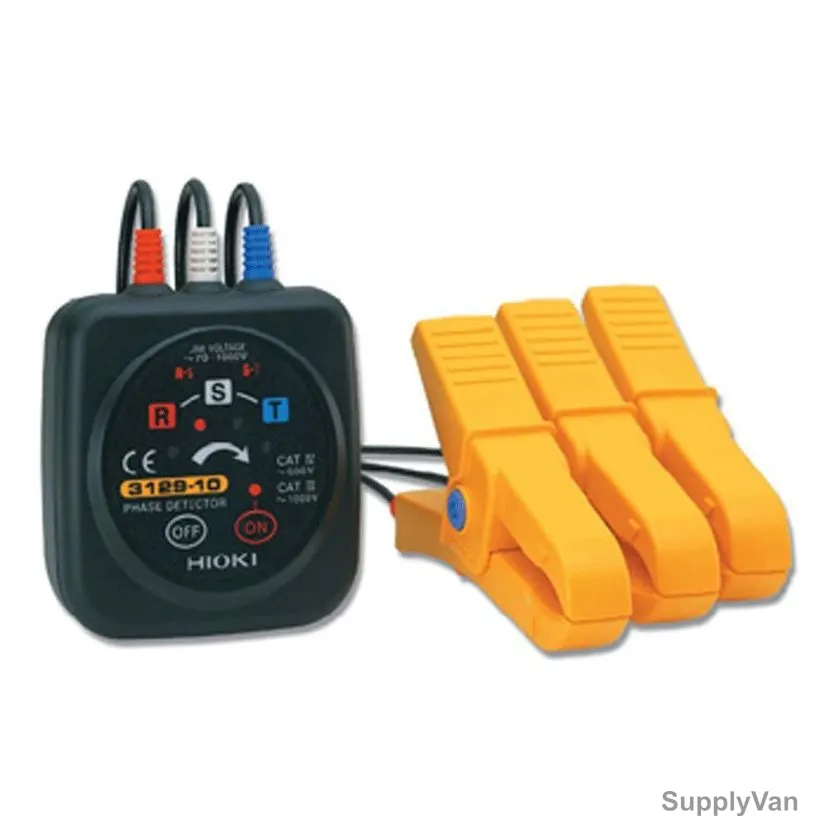

Hioki's non-contact voltage detection and measurement technology places efficiency and safety as priority considerations with the goal of protecting customers that need to conduct on-site electrical work as part of renovations and expansions of manufacturing plants and buildings. Model PD3129 is a non-contact phase rotation meter that detects the phase of electrical current flow within insulated wires without using metallic contact voltage clips. The green arrow indicates normal phase, which can be useful for visual reports that document the proper completion of electrical work.
View AllClose
- Simply clip clamps onto wire insulation
- Green LED arrow clearly shows phase direction, perfect for visual reports
- Rotating LED indicator shows the phase sequence for a 3-phase power supply at a glance
- Intermittent beeps signal positive phase; continuous tone signals reverse phase
- Magnetic base allows the instrument to be secured on a distribution panel
- Functions: Phase detection (positive and negative)
- Voltage detection method: Static induction
- Object to be connected: 2.4 mm (0.09 Inch) to 17 mm (0.67 Inch) of insulated wiring
- Display: Phase detection Positive, 4 LEDs lit in clockwise order and the buzzer sounds intermittently, green arrow lights up Negative, 4 LEDs lit in counter clockwise order and the buzzer sounds continuously
- Battery check function Power ON lamp: lights up (Power ON), blinks (Battery LOW)
Item Name: |
Phase Detector |
Model: |
PD 3129-10 |
Manufacturer: |
Hioki |
Battery Chemistry: |
Alkaline |
Battery Life: |
70 Hrs |
Battery Size: |
AA |
Measuring Frequency Range: |
50/60Hz |
Measuring Voltage Range - AC: |
70/600VAC |
Accessories Included: |
Carrying case, Strap, Spiral tube, Instruction manual, 2x R6P (AA) Manganese battery |
Brand Origin (not manufacture): |
Japan |
Product Size L x B x H (Cms): |
3L x 7B x 7.5H |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
