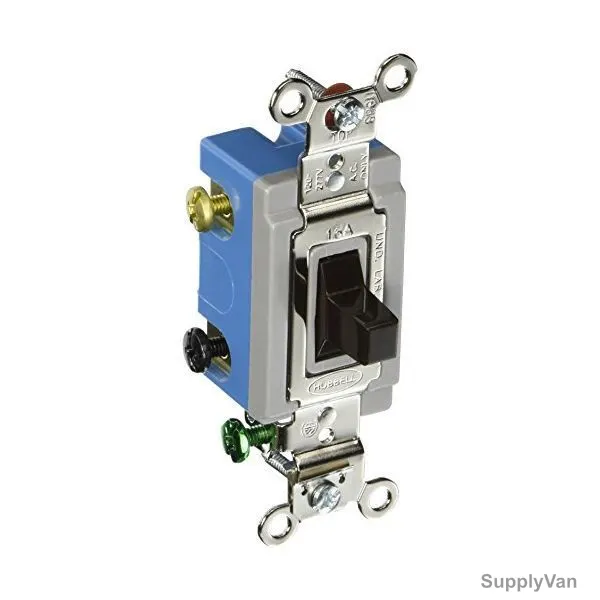

Hubbell 4 Way Momentary Toggle, HUBHBL1556, 15A, 120-277VAC

(No reviews yet) Write a Review
Brand:
Hubbell
SKU:
962798767651
Minimum Purchase:
1 unit
Item Name:
4 Way Momentary Toggle
Model:
HUBHBL1556
Manufacturer:
Hubbell
Height:
1.89 Inch
Length (Inch):
4.06 Inch
Width (Inch):
1.31 Inch
Voltage:
120-277VAC
Amps (A):
15A
Operating Ambient Temperature (Degree Celsius):
-40 to 75 Deg.C
Terminals:
Screw Mount
Contact Form:
SPDT
Application:
Extra Heavy Duty Industrial
Brand Origin (not manufacture):
United States
Standards:
NEMA
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
AED0.00

Available on Request

Description

Switches and lighting controls, industrial grade, toggle switches, general purpose ac, momentary single pole double throw center off.
  • Abuse resistant nylon toggle
  • Large brass binding head screws with deep slots
  • Strip gauge for accurate wiring
  • Dielectric Voltage - Withstands 1500V AC minimum for 1 minute
  • Overload - Minimum 4.8 times rated current for 100 cycles
  • Temperature Rise - 30 Deg.C maximum at rated current
  • Flammability - UL 94V-2
  • Operating Temperature - Max. continuous: 75 Deg.C, Min. continuous: -40 Deg.C without impact
  • Terminal Accommodations -14 AWG min. -10 AWG max. Solid and stranded copper wire only
  • Connectivity: Back and Side Wired
Item Name:
4 Way Momentary Toggle
Model:
HUBHBL1556
Manufacturer:
Hubbell
Height:
1.89 Inch
Length (Inch):
4.06 Inch
Width (Inch):
1.31 Inch
Voltage:
120-277VAC
Amps (A):
15A
Operating Ambient Temperature (Degree Celsius):
-40 to 75 Deg.C
Terminals:
Screw Mount
Contact Form:
SPDT
Application:
Extra Heavy Duty Industrial
Brand Origin (not manufacture):
United States
Standards:
NEMA
Delivery Time:
2-7 Days
Unit:
Piece
