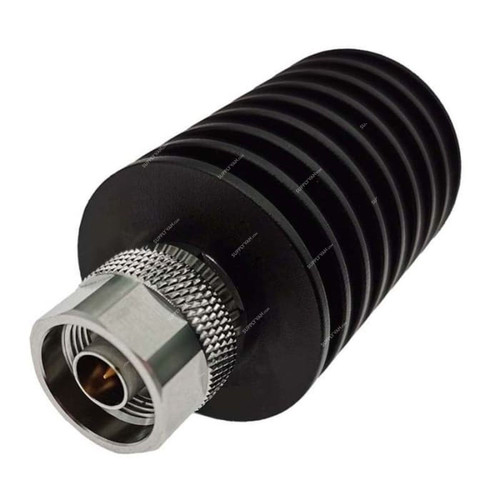

Huber+Suhner Coaxial Fixed Attenuator, 85177202, Aluminium, 25W, 50 Ohm, 30 dB, 6 GHz, N Male/N Female
(No reviews yet)
Write a Review
- Brand:
- Huber+Suhner
- SKU:
- 746658779348
- Minimum Purchase:
- 1 unit
- Item Name:
- Coaxial Fixed Attenuator
- Manufacturer:
- Huber+Suhner
- Material:
- Aluminium
- Wattage:
- 25W
- Peak Power:
- 1000W, 5 µs pulse width, 1% duty cycle
- Conductor Material:
- Brass
- Insulation Material:
- PTFE
- Impedance:
- 50 Ohm
- Frequency:
- 6 GHz
- Interface Type:
- N Male/N Female
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
Experience exceptional signal control and performance with the Huber+Suhner Coaxial Fixed Attenuator, 85177202-a premium RF component engineered for precision and reliability. Designed with a robust aluminium housing and high-quality N male to N female connectors, this 30 dB attenuator ensures consistent power reduction and excellent impedance matching across frequencies up to 6 GHz. Built to handle up to 25W of continuous power, it effectively minimizes signal strength to protect sensitive test and communication equipment, improve measurement accuracy, and enhance system stability. Whether used in laboratories, broadcast stations, telecom networks, or RF testing environments, this attenuator delivers dependable performance even under demanding conditions. The sleek, compact design allows easy integration into various setups, while the durable aluminium construction ensures superior heat dissipation and long service life. With its 50 Ohm impedance, wide operating bandwidth, and precise attenuation characteristics, It is ideal for professionals who demand accuracy, reliability, and efficiency in every connection. Perfect for use in signal calibration, equipment testing, and level adjustment applications, this high-performance attenuator combines technical excellence with robust engineering - ensuring your RF systems operate at their best, with confidence and consistency.
View AllClose
- Average power: 25W at 25 Deg. C ambient temperature. Linearly derated to 2.5 W at 100 Deg. C ambient temperature
- Outer contact: Brass/Tri-metal Plating
- Centre contact: Copper Beryllium Alloy/Gold Plating (without Nickel underplating)
- Nominal Attenuation: 30 dB
- Attenuation Deviation over Frequency: +/- 0.8 dB
- Return Loss: 19.1 dB
- Standard RF impedance. Must match system impedance to minimize reflections
- VSWR (Voltage Standing Wave Ratio): 1.25
- Wide range of intefaces
- Various bandwidth to improve the impedance matching between subsystems of its waveform
- Used in many test and measurement and communication applications
Item Name: |
Coaxial Fixed Attenuator |
Manufacturer: |
Huber+Suhner |
Material: |
Aluminium |
Wattage: |
25W |
Peak Power: |
1000W, 5 µs pulse width, 1% duty cycle |
Conductor Material: |
Brass |
Insulation Material: |
PTFE |
Impedance: |
50 Ohm |
Frequency: |
6 GHz |
Interface Type: |
N Male/N Female |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
